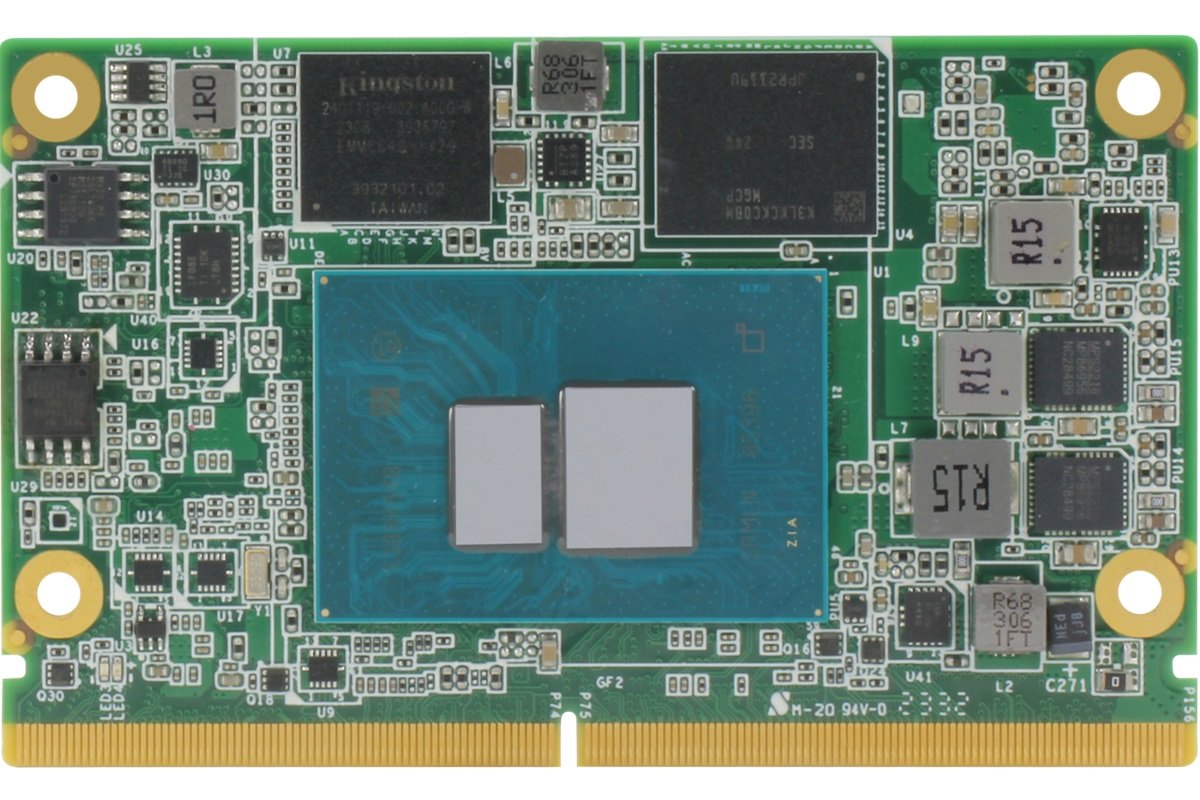

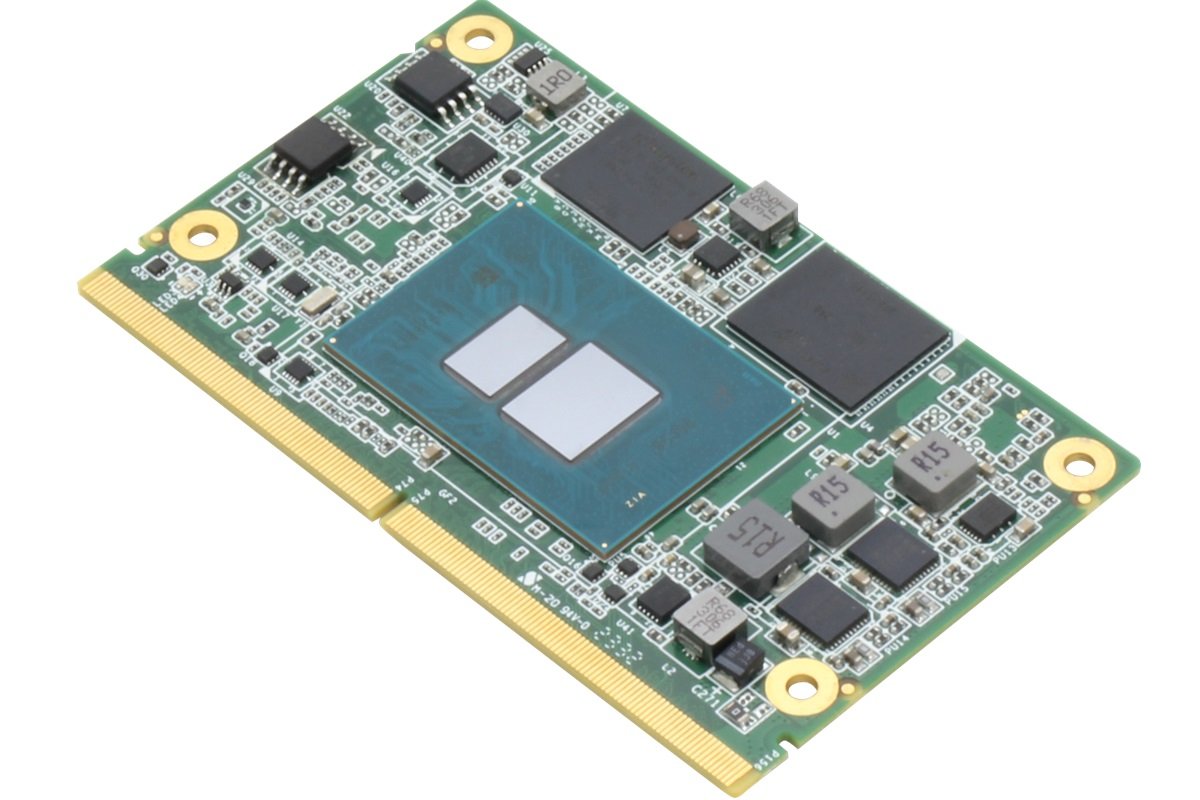

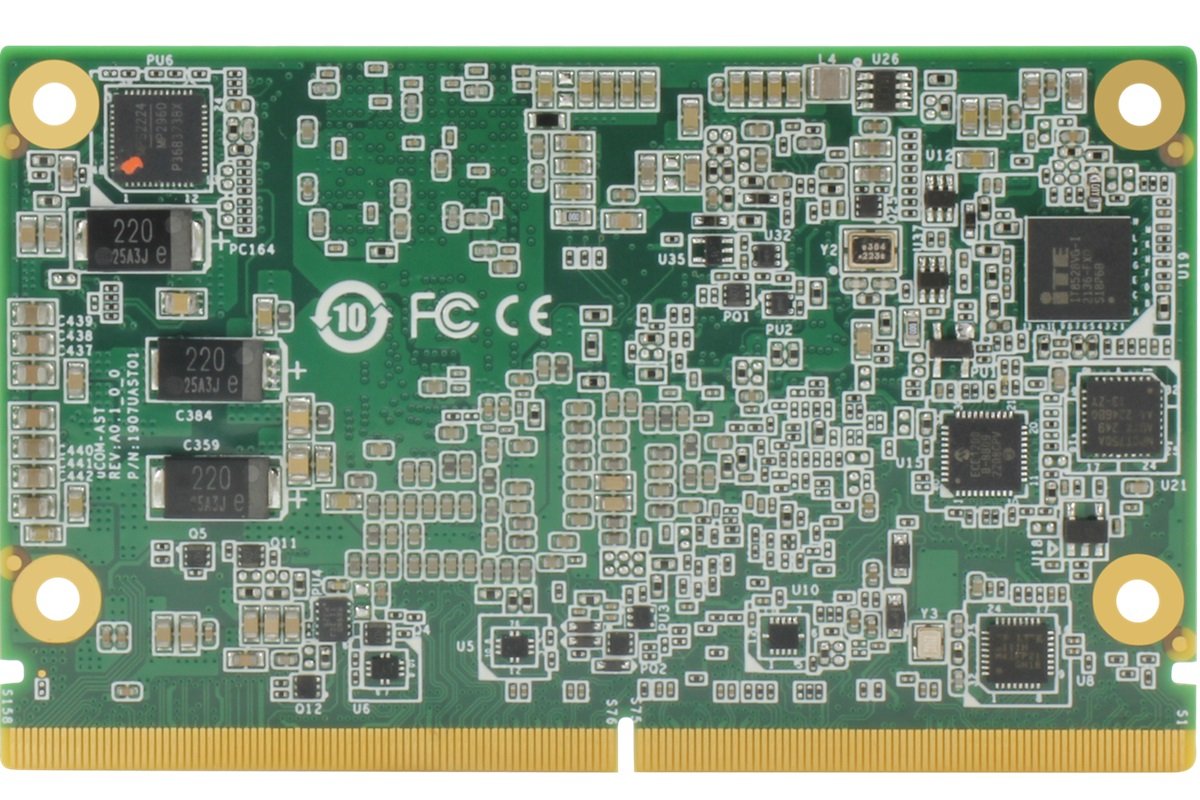

uCOM-ASLW2-B11-0002 Embedded Single Board Computers · Intel Atom x7433RE
The uCOM-ASL is a high-performance, compact SMARC form factor module equipped with Intel Atom x7000RE series processors. With LPDDR5x memory support, multiple display outputs, dual 2.5 GbE LAN and rich I/O ports, it offers a reliable solution for industrial automation and IoT applications.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel Atom® x7433RE |
|---|---|
|
RAM [System Memory]
|
8GB LPDDR5x |
|
Storage
|
64GB eMMC |
Connectivity
|
Video Output
|
eDP x 1, DP++ x 1, HDMI x 1 |
|---|---|
|
LAN/Ethernet Port Count
|
Intel® Ethernet Controller I226-IT x 2 |
|
USB
|
USB 3.2 x 2, USB 2.0 x 6 |
|
Expansion Slot
|
PCIe [x2] x 1 + [x1] x 2 |
Physical
|
Supply Voltage
|
+5V |
|---|---|
|
Operating Temperature
|
-40°C ~ 85°C |
|
External Dimensions (mm)
|
82mm x 50mm |
System
|
Seri Port
|
4-wire UART x 2, 2-Wire UART x 2 |
|---|
Supported Operating Systems
Windows 10, Windows 11, Linux Ubuntu 24.04/Kernel 6.11
Product at a Glance
uCOM-ASLW2-B11-0002 — Embedded Single Board Computers.
The standard configuration ships with Intel Atom x7433RE processor, 8GB RAM and 64GB eMMC storage. Video output: eDP x 1, DP++ x 1, HDMI x 1. Ports: USB (USB 3.2 x 2, USB 2.0 x 6); serial port: 4-wire UART x 2, 2-Wire UART x 2. The device has external dimensions of 82mm x 50mm mm. Power input: +5V. It operates in the -40°C ~ 85°C range. Supported operating systems: Windows 10, Windows 11, Linux Ubuntu.
