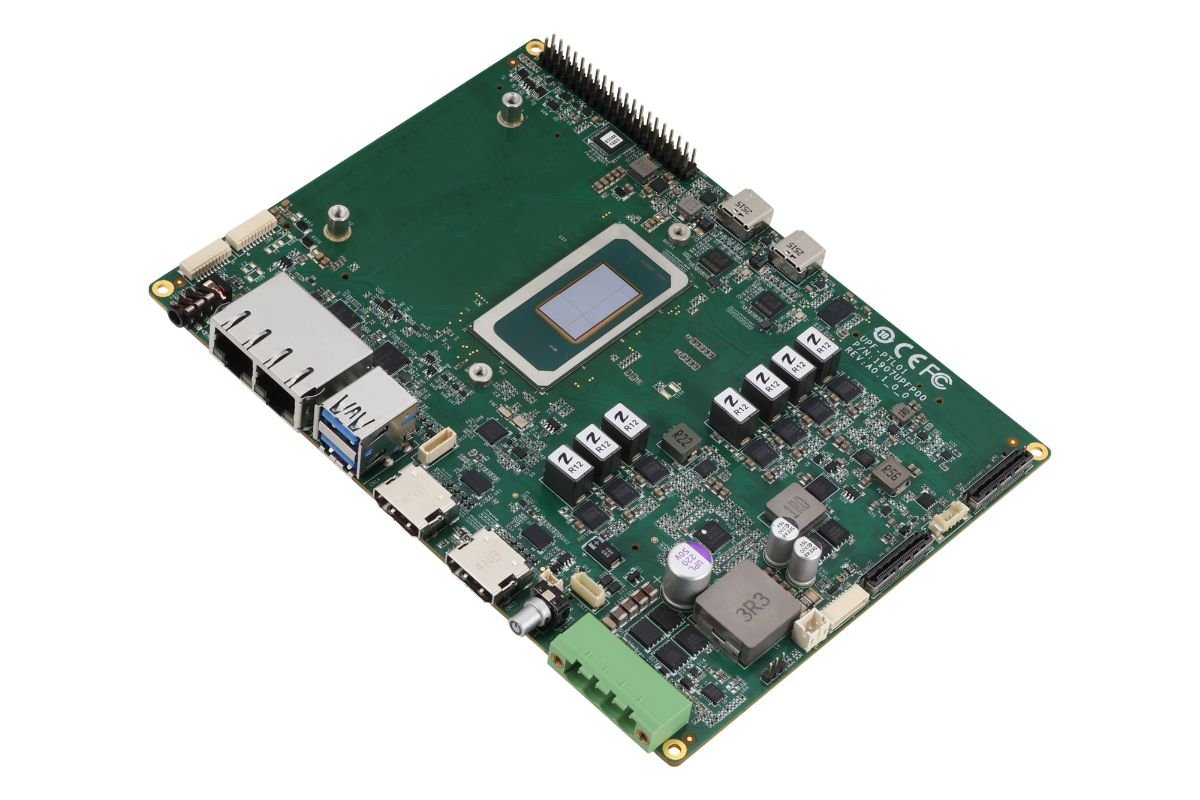

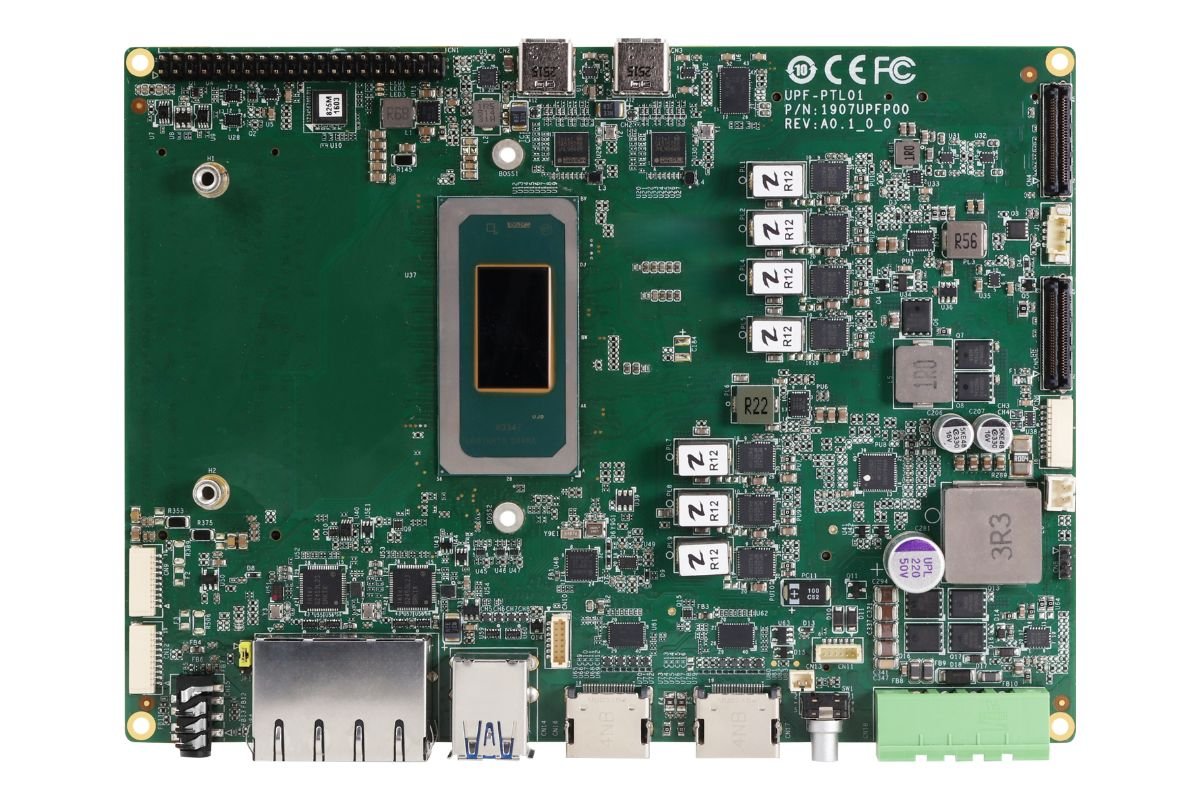

UPX-PTL01-A10-358H-0000 Embedded Single Board Computers · Intel Core Ultra X7 processor 358H (18M Cache, up to 4.80
The UP Xtreme PTL is a high-performance single board computer equipped with AI-capable Intel Core Ultra Series 3 processors delivering up to 180 TOPS. It offers support for up to 128 GB of DDR5 memory, quad independent display outputs, dual 2.5 GbE connectivity and M.2 expansion slots with PCIe 4.0/5.0 support. It is the ideal solution for industrial automation, smart camera systems and artificial intelligence (AI) edge applications that require intensive data processing.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel Core Ultra X7 processor 358H (18M Cache, up to 4.80 GHz, 4P+8E+4LPE) |
|---|---|
|
RAM [System Memory]
|
DDR5 SODIMM x 2, Dual Channel, up to 128GB, up to 7200 MT/s |
|
SSD/HDD/mSATA/M.2
|
M.2 2280 M-Key x 2 |
Connectivity
|
Video Output
|
HDMI 2.1 x 2, DP 2.1 x 2 via USB 4.0 Type-C, eDP 1.5 x 1 |
|---|---|
|
LAN/Ethernet Port Count
|
2.5GbE x 2 (via Intel Ethernet Controller I226-IT) |
|
USB 3.2
|
USB 3.2 Gen 2 (Type-A) x 2 |
|
USB Type-C
|
USB 4.0 (Type-C) x 2 |
|
USB 2.0
|
USB 2.0 x 2 (from 10 pin header x 1) |
|
RS-232/422/485 Serial Port
|
RS-232/422/485 via 10-Pin header x 2 |
|
Expansion Slot
|
40-pin GPIO x 1, M.2 2230 E-Key x 1 (Wi-Fi/BT), M.2 2280 M-Key x 2 |
Physical
|
Supply Voltage
|
19-36V DC-in (Lockable plug) |
|---|---|
|
Power Consumption
|
100W (Typical) |
|
Cooling
|
Active Cooler |
|
External Dimensions (mm)
|
170mm x 125mm (6.69" x 4.92") |
|
Weight (kg)
|
0.46 kg (Net), 0.72 kg (Gross) |
|
Operating Temperature
|
0°C ~ 60°C (32°F ~ 140°F) with cooler, 0.5m/s airflow |
System
|
AI Accelerator / GPU
|
Intel Arc B390 GPU |
|---|---|
|
Kamera
|
MIPI CSI x 2 via 60-pin Connector |
|
Ses
|
Audio Jack x 1 (Mic-in + Line-out) |
|
Safety
|
Onboard TPM 2.0 |
|
Certifications
|
CE/FCC Class A, RoHS Compliant, REACH |
Supported Operating Systems
Windows 11 IoT Enterprise, Ubuntu 24.04 LTS
Product at a Glance
UPX-PTL01-A10-358H-0000 — Embedded Single Board Computers.
The standard configuration ships with Intel Core Ultra X7 processor 358H (18M Cache, up to 4.80 processor, 128GB RAM and M.2 2280 M-Key x 2 storage. Video output: HDMI 2.1 x 2, DP 2.1 x 2 via USB 4.0 Type-C, eDP 1.5 x 1. For connectivity it provides 2 Ethernet ports. Ports: USB 3.2 (USB 3.2 Gen 2 (Type-A) x 2), USB Type-C (USB 4.0 (Type-C) x 2), USB 2.0 (USB 2.0 x 2 (from 10 pin header x 1)); serial port: RS-232/422/485 via 10-Pin header x 2. The device has external dimensions of 170mm x 125mm (6.69" x 4.92") mm and a weight of 0.46 kg (Net) kg. Power input: 19-36V DC-in (Lockable plug). It operates in the 0°C ~ 60°C (32°F ~ 140°F) range. Supported operating systems: Windows 11 IoT Enterprise, Ubuntu 24.04.
