UPPC-ASLN15-N150-A10-0000 15.6" Industrial Panel PC · Intel N150 4 Core 0.80 / 3.60 GHz

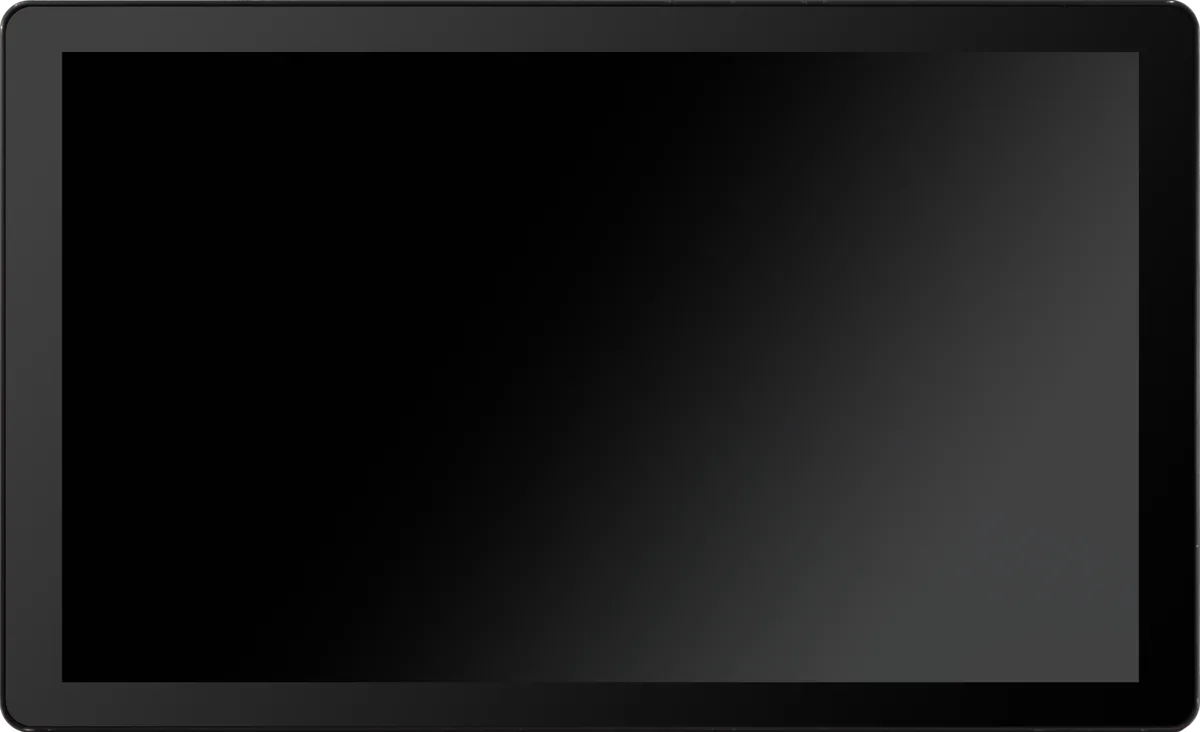

UPPC-ASLN15-N150-A10-0000 is a UP Display ASL15 panel computer with a 15.6-inch Full HD capacitive touchscreen. This model features an Intel® N150 processor.

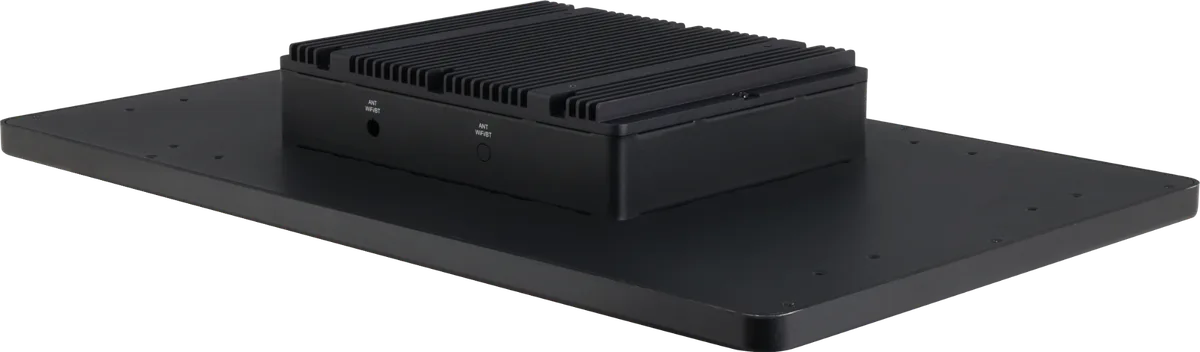

Its IP65-rated aluminum front bezel allows for wiping and cleaning the front surface in front of machines and dusty production environments. It operates silently with a fanless heat sink.

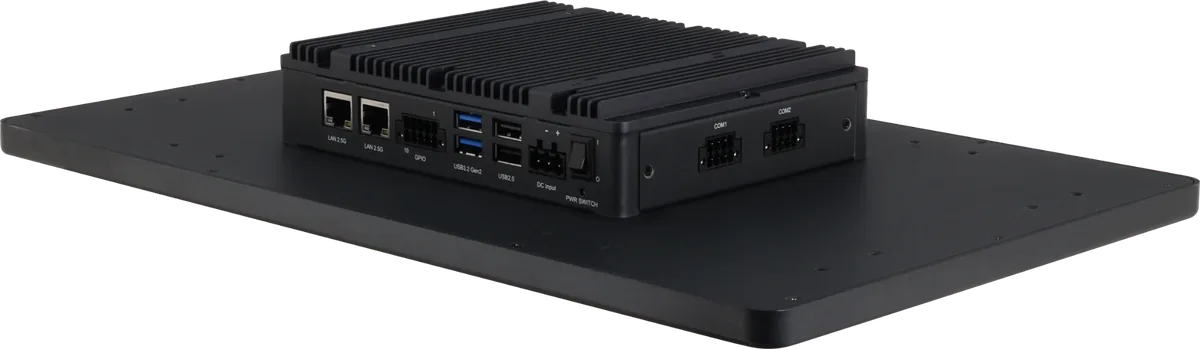

The rear panel includes two 2.5GbE ports, two RS-232/422/485 ports, four USB ports, and 8 GPIO lines. Memory can be expanded up to 16 GB with LPDDR5 SODIMM; two M.2 2280 slots are available for storage and AI modules.
Powered by 12V or 14 ~ 36V DC input, it can be used as an HMI, kiosk, or operator terminal with VESA or panel mounting.
Technical Specifications TECHNICAL SPECIFICATIONS
Display
|
Screen Size
|
15.6" |
|---|---|
|
Resolution
|
1920 x 1080 Full HD |
|
Brightness
|
350 cd/m² |
|
Touch Type
|
Capacitive |
|
Touch Type Details
|
Projected Capacitive Multi-Touch, 85% light transmittance |
Performance
|
Processor (CPU)
|
Intel® N150 4 Core 0.80 / 3.60 GHz | BM : 5340 |
|---|---|
|
Processor Family
|
Intel® Processor N® |
|
Graphics Card / GPU
|
Intel® UHD Graphics |
|
RAM [System Memory]
|
LPDDR5 SODIMM x 1 [Max 16 GB] |
|
SSD/HDD/mSATA/M.2
|
M.2 2280 M-Key x 2 | Optional 128GB eMMC |
|
Storage Temperature
|
-20°C ~ 60°C |
Connectivity
|
LAN/Ethernet Port Count
|
x 2 |
|---|---|
|
LAN/Ethernet Port Type
|
2.5GbE x 2 |
|
USB 3.2
|
Gen 2 Type-A x 2 |
|
USB 2.0
|
Type-A x 2 |
|
RS-232/422/485 Serial Port
|
x 2, 8-pin terminal block, software selectable |
|
Digital I/O
|
10-pin GPIO, GPIO x 8 |
|
Expansion Slot
|
M.2 2230 E-Key x 1, M.2 2280 M-Key x 2 |
|
Wireless Connectivity
|
Optional, M.2 2230 E-Key ile |
Physical
|
IP Protection Class
|
IP65 front bezel, aluminum |
|---|---|
|
Cooling
|
Fanless, Isı Dağıtıcı |
|
Mounting Type
|
VESA / Panel Montaj |
|
Supply Voltage
|
12V and 14V ~ 36V DC, Phoenix connector |
|
Power Consumption
|
41.5W ~ 42W Typical |
|
Operating Temperature
|
0°C ~ 50°C, with 0.5 m/s airflow |
|
External Dimensions (mm)
|
385.6 x 235 x 49.9 |
|
Weight (kg)
|
2.5 |
System
|
Safety
|
TPM 2.0 |
|---|---|
|
MTBF (Hours)
|
1, 891, 954 |
|
Certifications
|
CE/FCC Class A, RoHS Compliant, REACH |
Supported Operating Systems
Windows® 11 LTSC | Ubuntu 22.04 LTS | Operating system license is sold separately.
Product at a Glance
UPPC-ASLN15-N150-A10-0000 — 15.6" display Industrial Panel PC.
The standard configuration ships with Intel N150 4 Core 0.80 / 3.60 GHz processor and 128 GB eMMC storage. Supports up to 16 GB of RAM. For connectivity it provides 2 Ethernet ports and Optional, M.2 2230 E-Key ile. Ports: USB 3.2 (Gen 2 Type-A x 2), USB 2.0 (Type-A x 2); 2 x serial port , 8-pin terminal block, software selectable. The device has external dimensions of 385.6 x 235 x 49.9 mm and a weight of 2.5 kg. Power input: 12V and 14V ~ 36V DC, Phoenix connector; mounting: VESA / Panel Montaj. It carries IP65 protection and it operates in the 0°C ~ 50°C, with 0.5 m/s range. It features A capacitive touch touch screen. Supported operating systems: Windows 11 LTSC / Ubuntu 22.04 LTS.
