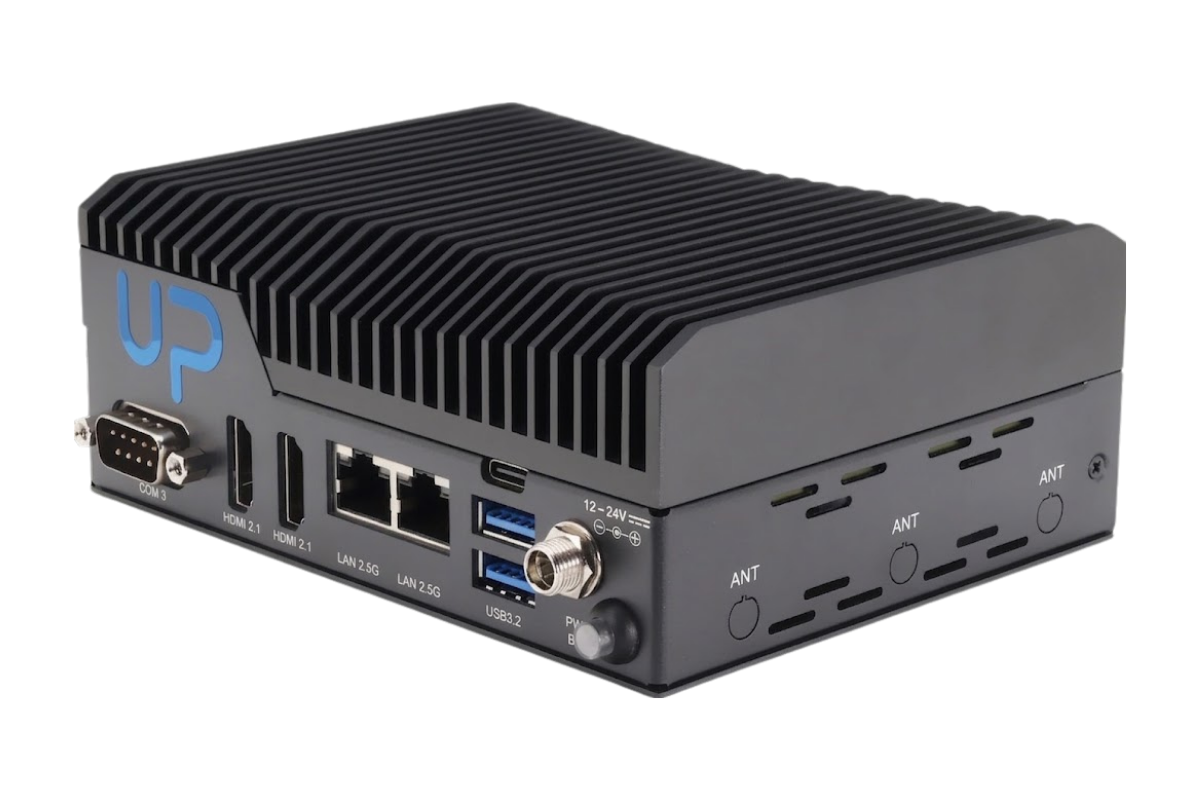

UPN-WCL01-SYS-A10-350-16128 AI Edge PC · Intel Core 7 processor 350
The UP Nexus WCL Edge is a low-power Edge AI system equipped with Intel Core 3 series processors. It offers LPDDR5 memory, UFS storage, dual 2.5 GbE LAN, USB 3.2 and comprehensive M.2 expansion slots. With a -20°C to 60°C operating temperature, 12 V-24 V DC input support and a fanless design, it is ideal for high-performance artificial intelligence solutions in industrial environments.
Technical Specifications TECHNICAL SPECIFICATIONS
Display
|
Graphics Card / GPU
|
Intel Graphics |
|---|
Performance
|
Processor (CPU)
|
Intel Core 7 processor 350 |
|---|---|
|
Processor Family
|
Intel Core Series 3 |
|
RAM [System Memory]
|
16GB LPDDR5 (upgradeable to 48GB) |
|
Storage
|
128GB UFS (upgradeable to 256GB) |
Connectivity
|
LAN/Ethernet Port Count
|
x 2 |
|---|---|
|
Video Output
|
1 x HDMI 2.1 (TMDS), 1 x DP 1.4a via USB Type-C |
|
USB
|
2 x USB 3.2 Gen 2 (Type-A), 1 x USB 3.2 Gen 2x2 (Type-C) |
|
RS-232/422/485 Serial Port
|
x 2 |
|
Digital I/O
|
40-pin GPIO x 1 |
|
Expansion Slot
|
1 x M.2 2230 E-Key, 1 x M.2 2280 M-Key, 1 x M.2 2242 M-Key |
Physical
|
Supply Voltage
|
12V-24V DC-in |
|---|---|
|
Power Consumption (Typical)
|
35W |
|
Mounting Type
|
Wall mount, 75x75 VESA, DIN Rail |
|
External Dimensions (mm)
|
134 x 105 x 53 |
|
Weight (kg)
|
0.66 |
|
Operating Temperature
|
-20°C ~ 60°C |
|
Cooling
|
Passive heatsink |
System
|
Ses
|
Audio Jack x 1 (Mic-in+Line-out) |
|---|---|
|
Certifications
|
CE/FCC Class A, RoHS Compliant, REACH |
Supported Operating Systems
Windows 11, Ubuntu 24.04, Yocto 6.0
Product at a Glance
UPN-WCL01-SYS-A10-350-16128 — AI Edge PC.
The standard configuration ships with Intel Core 7 processor 350 processor, 16GB RAM and 128GB UFS (upgradeable to 256GB) storage. Video output: 1 x HDMI 2.1 (TMDS), 1 x DP 1.4a via USB Type-C. For connectivity it provides 2 Ethernet ports. Ports: USB (2 x USB 3.2 Gen 2 (Type-A), 1 x USB); 2 x serial port. The device has external dimensions of 134 x 105 x 53 mm and a weight of 0.66 kg. Power input: 12V-24V DC-in; mounting: Wall mount, 75x75 VESA, DIN Rail. It operates in the -20°C ~ 60°C range. Supported operating systems: Windows 11, Ubuntu 24.04, Yocto 6.0.
