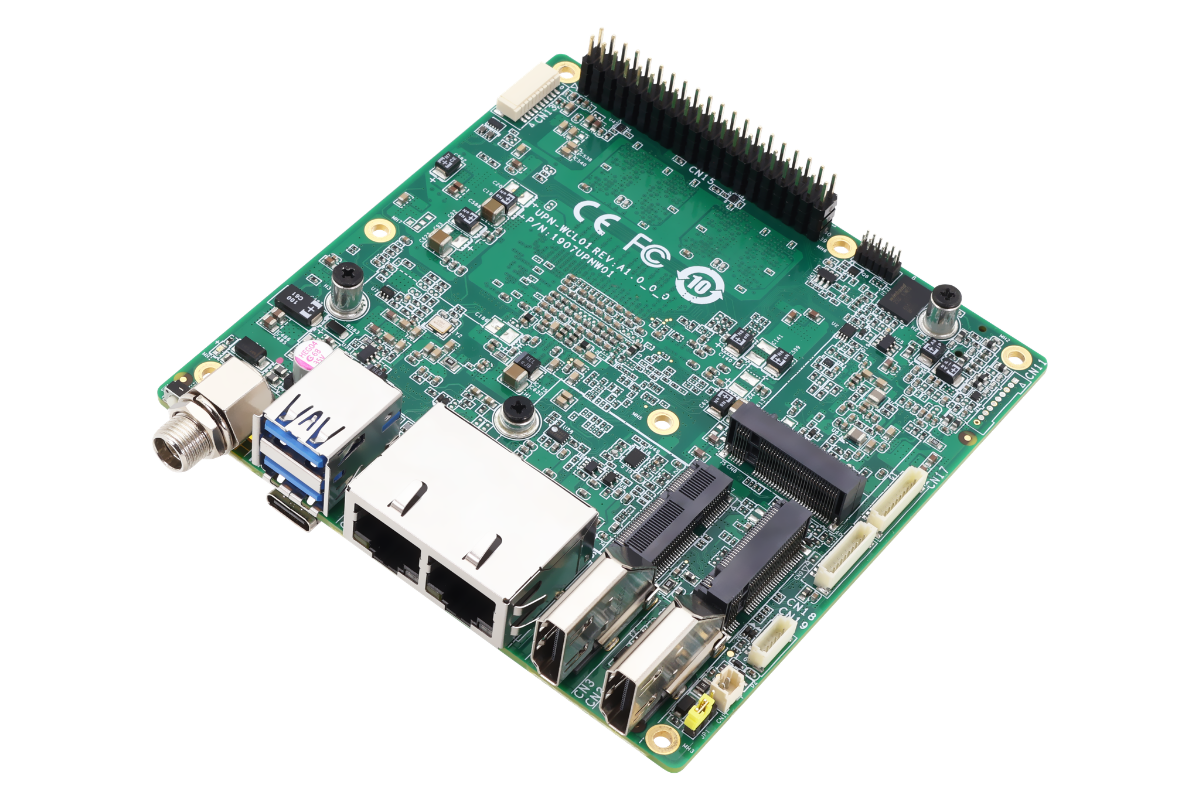

UPN-WCL01-A10-320-16128 Embedded Single Board Computers · Intel Core 5 processor 320
The UP Nexus WCL is an advanced developer board equipped with Intel Core Series 3 processors and purpose-built for artificial intelligence and Edge AI applications. Featuring LPDDR5 memory, onboard UFS storage, dual 2.5 GbE network connectivity, multiple M.2 slots and a 40-pin GPIO header, this model delivers a compact, high-performance, industrial-grade platform with an active cooling solution.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel® Core™ 5 processor 320 |
|---|---|
|
RAM [System Memory]
|
16GB LPDDR5 |
|
SSD/HDD/mSATA/M.2
|
128GB UFS |

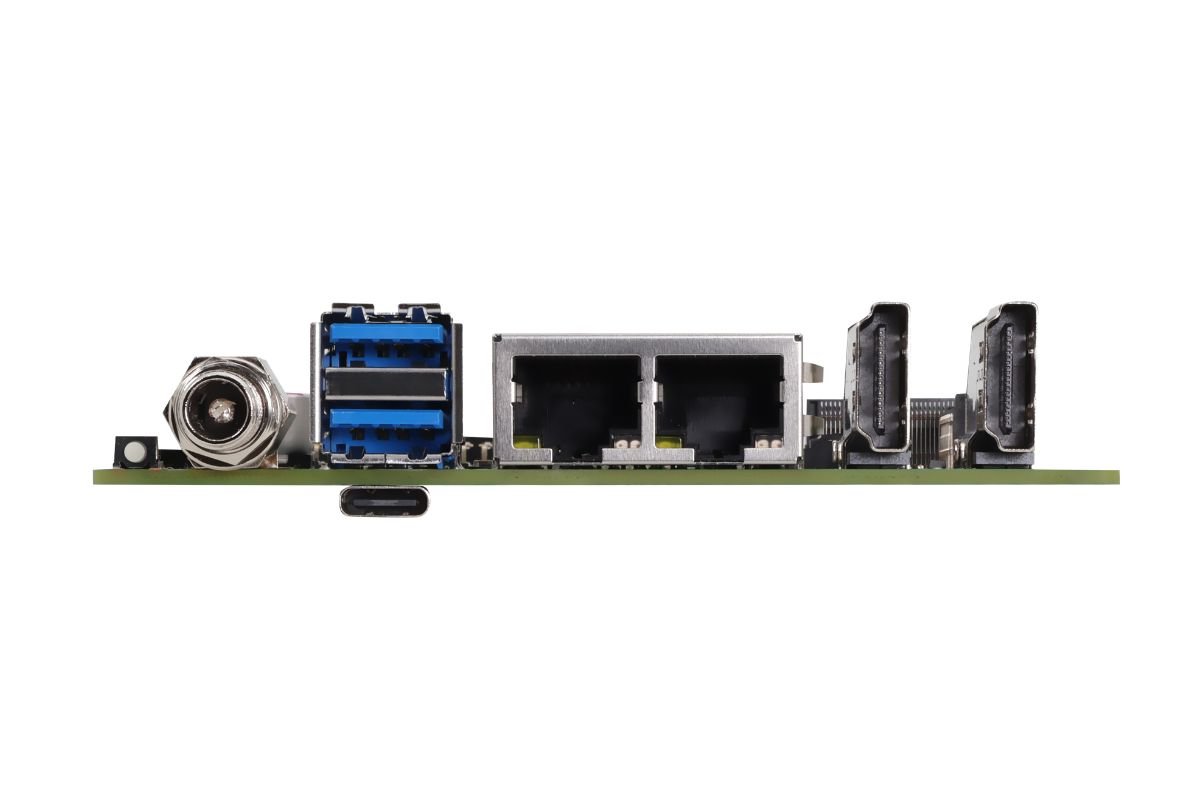

Connectivity
|
Video Output
|
HDMI 2.1 (TMDS) x 2, DP 1.4a via USB Type-C |
|---|---|
|
LAN/Ethernet Port Count
|
2.5GbE x 2 (Intel® Ethernet Controller I226-IT) |
|
USB 3.2
|
USB 3.2 Gen 2 (Type-A) x 2, USB 3.2 Gen 2x2 (Type-C) x 1 |
|
USB 2.0
|
USB 2.0 x 2 (via 10 Pin Header x 1) |
|
RS-232/422/485 Serial Port
|
RS-232/422/485 via 10-pin Header x 2 |
|
Expansion Slot
|
40-pin GPIO x 1, M.2 2230 E-Key x 1, M.2 2280 M-Key x 1, M.2 2242 M-Key x 1 |
Physical
|
Supply Voltage
|
12V-24V DC-in |
|---|---|
|
Power Consumption
|
35W (Typical) |
|
Operating Temperature
|
-20°C ~ 60°C |
|

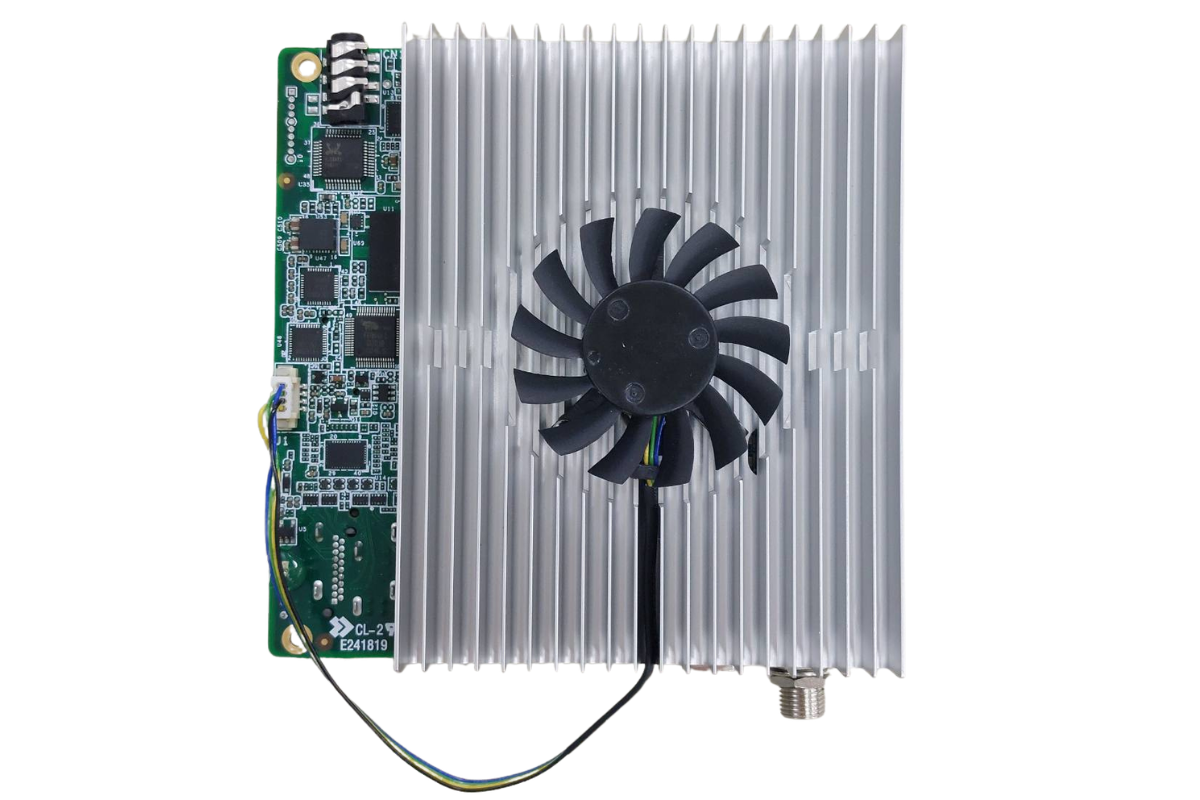

Cooling
|
Active cooler |
|
External Dimensions (mm)
|
101.6mm × 101.6mm (4" x 4") |
|
Weight (kg)
|
0.25 kg |
System
|
Graphics Processor (GPU)
|
Intel® Graphics |
|---|---|
|
Ses
|
Audio Jack x 1 (Mic-in + Line-out) |
|
Safety
|
TPM 2.0 |
|
Certifications
|
CE/FCC Class A, RoHS Compliant, REACH |
Supported Operating Systems
Windows 11, Ubuntu 24.04, Yocto 6.0
Product at a Glance
UPN-WCL01-A10-320-16128 — Embedded Single Board Computers.
The standard configuration ships with Intel Core 5 processor 320 processor, 16GB RAM and 128GB UFS storage. Video output: HDMI 2.1 (TMDS) x 2, DP 1.4a via USB Type-C. For connectivity it provides 2 Ethernet ports. Ports: USB 3.2 (USB 3.2 Gen 2 (Type-A) x 2, USB 3.2), USB 2.0 (USB 2.0 x 2 (via 10 Pin Header x 1)); serial port: RS-232/422/485 via 10-pin Header x 2. The device has external dimensions of 101.6mm × 101.6mm (4" x 4") mm and a weight of 0.25 kg. Power input: 12V-24V DC-in. It operates in the -20°C ~ 60°C range. Supported operating systems: Windows 11, Ubuntu 24.04, Yocto 6.0.
