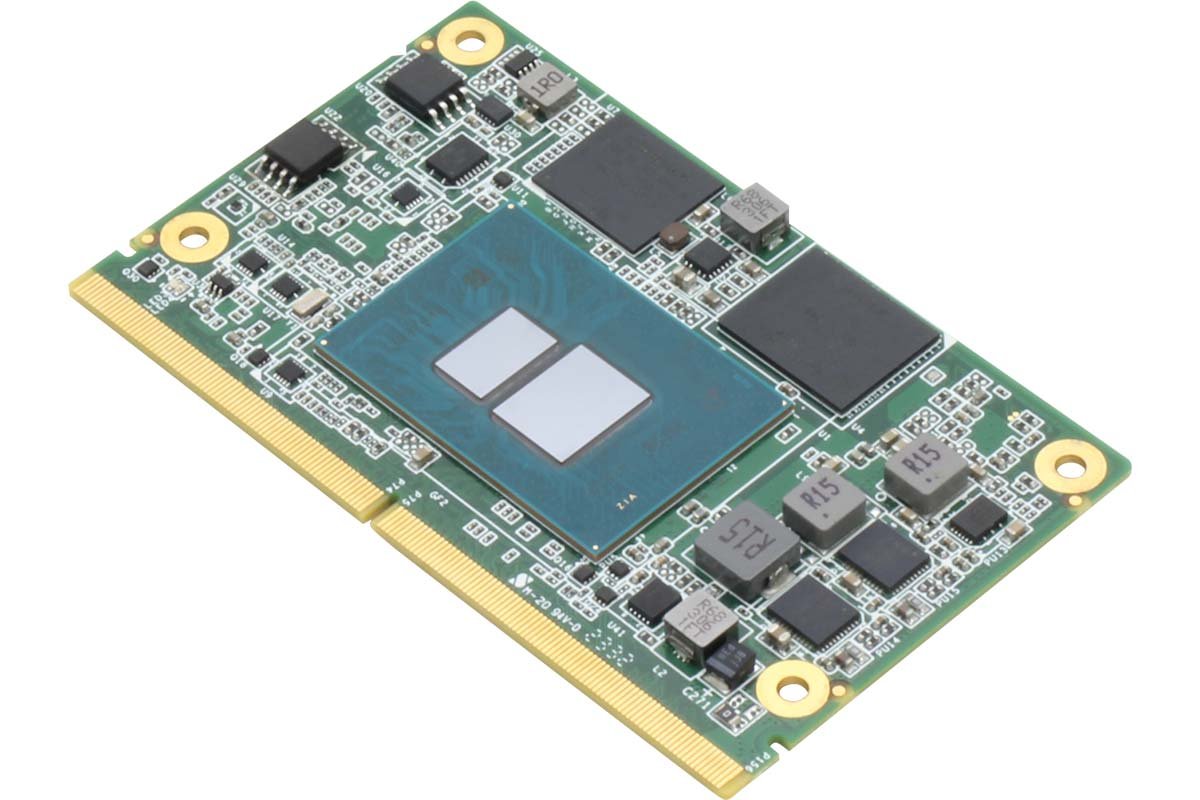

UCOM-TWL-B11-0002 Industrial Motherboard · Intel Core 3 Processor N355
The uCOM-TWL is a high-performance SMARC form factor module equipped with Intel Processor N-series and Intel Core 3 processors. Offering LPDDR5x memory, integrated eMMC storage, rich display outputs (DP++, HDMI, eDP) and dual 2.5 GbE Intel Ethernet connectivity, it provides a powerful and compact platform for industrial embedded systems, automation and IoT applications.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel® Core™ 3 Processor N355 |
|---|---|
|
RAM [System Memory]
|
8GB LPDDR5x |
|
Storage
|
64GB eMMC |
Connectivity
|
Video Output
|
eDP x 1, DP++ x 1, HDMI x 1 |
|---|---|
|
LAN/Ethernet Port Count
|
Intel® Ethernet Controller I226-V x 2 |
|
USB
|
USB 3.2 x 2, USB 2.0 x 6 |
|
Expansion Slot
|
PCIe [x2] x 1 + [x1] x 2 |
Physical
|
Supply Voltage
|
+5V |
|---|---|
|
Operating Temperature
|
-20°C ~ 70°C |
|
External Dimensions (mm)
|
82 x 50 |
|
Weight (kg)
|
0.06 |
System
|
Form Factor
|
SMARC Module |
|---|---|
|
Seri Port
|
4-wire UART x 2, 2-Wire UART x 2 |
|
Certifications
|
CE/FCC Class A |
Supported Operating Systems
Windows 10 (64-bit), Windows 11 (64-bit), Linux Ubuntu 24.04/Kernel 6.11
Product at a Glance
UCOM-TWL-B11-0002 — Industrial Motherboard.
The standard configuration ships with Intel Core 3 Processor N355 processor, 8GB RAM and 64GB eMMC storage. Video output: eDP x 1, DP++ x 1, HDMI x 1. Ports: USB (USB 3.2 x 2, USB 2.0 x 6); serial port: 4-wire UART x 2, 2-Wire UART x 2. The device has external dimensions of 82 x 50 mm and a weight of 0.06 kg. Power input: +5V. It operates in the -20°C ~ 70°C range. Supported operating systems: Windows 10 (64-bit), Windows 11.
