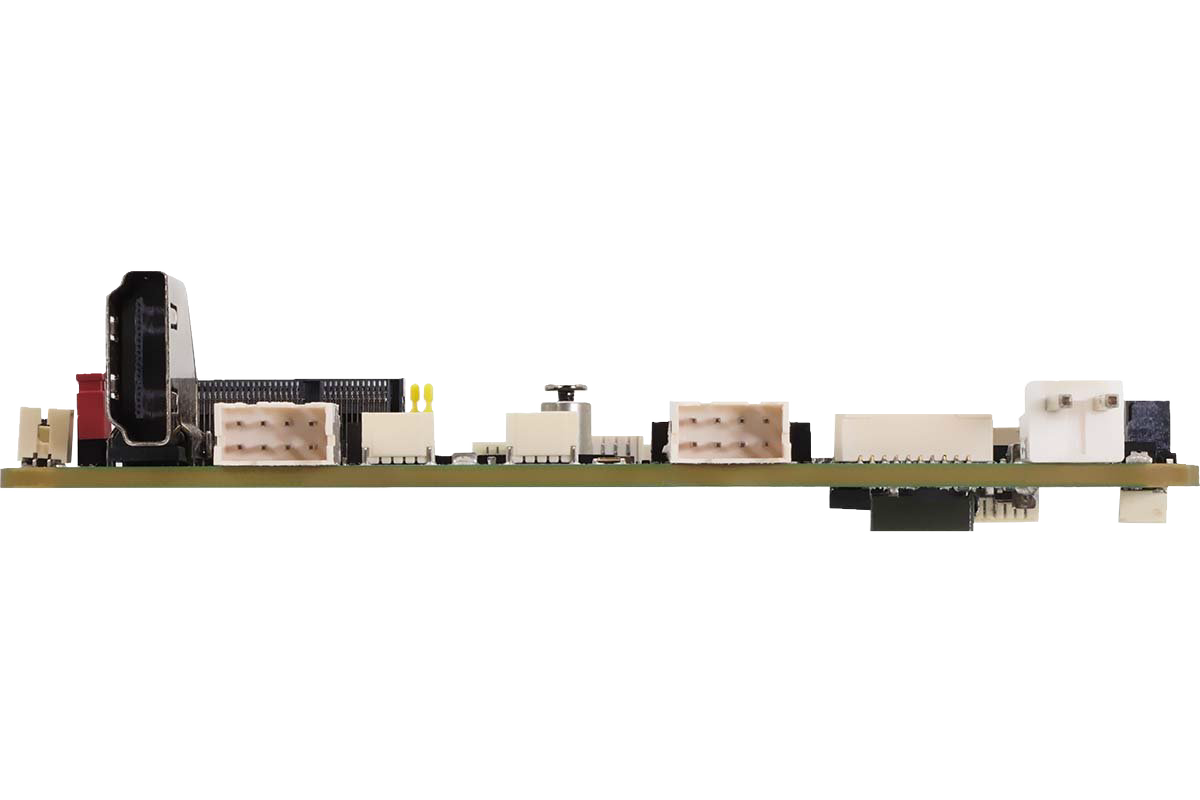

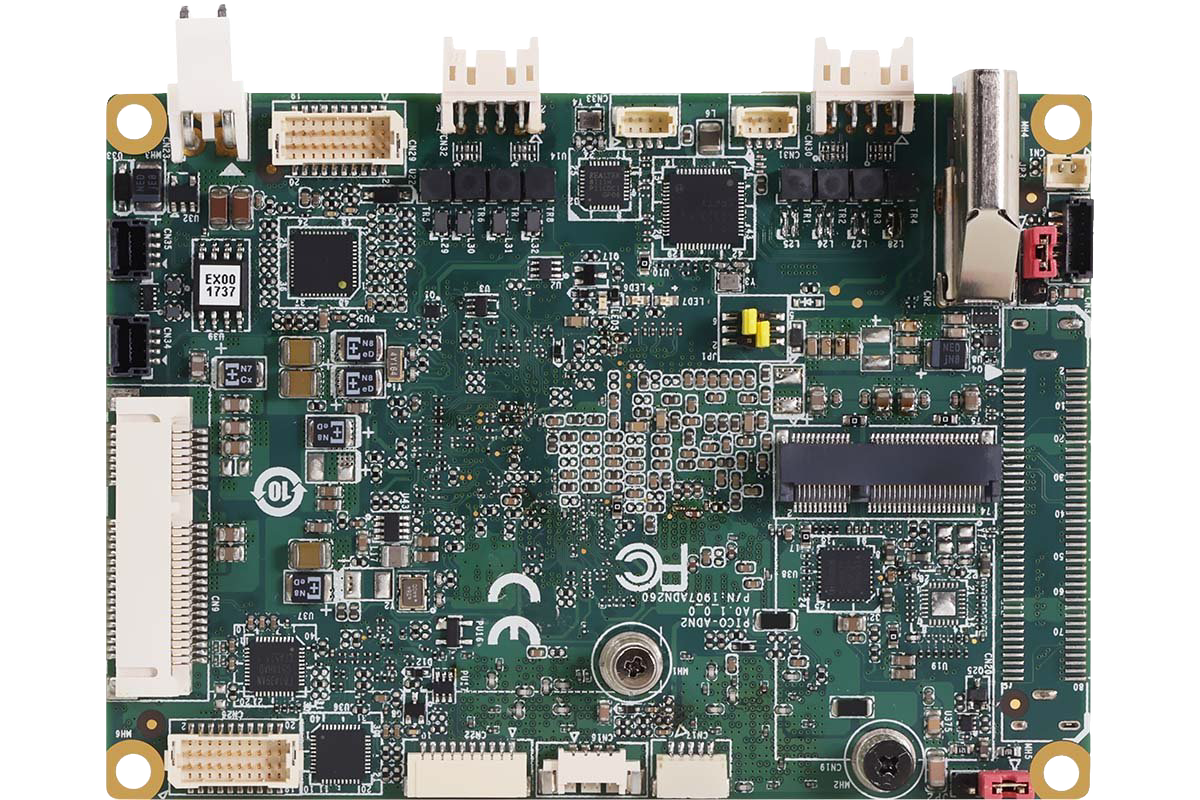

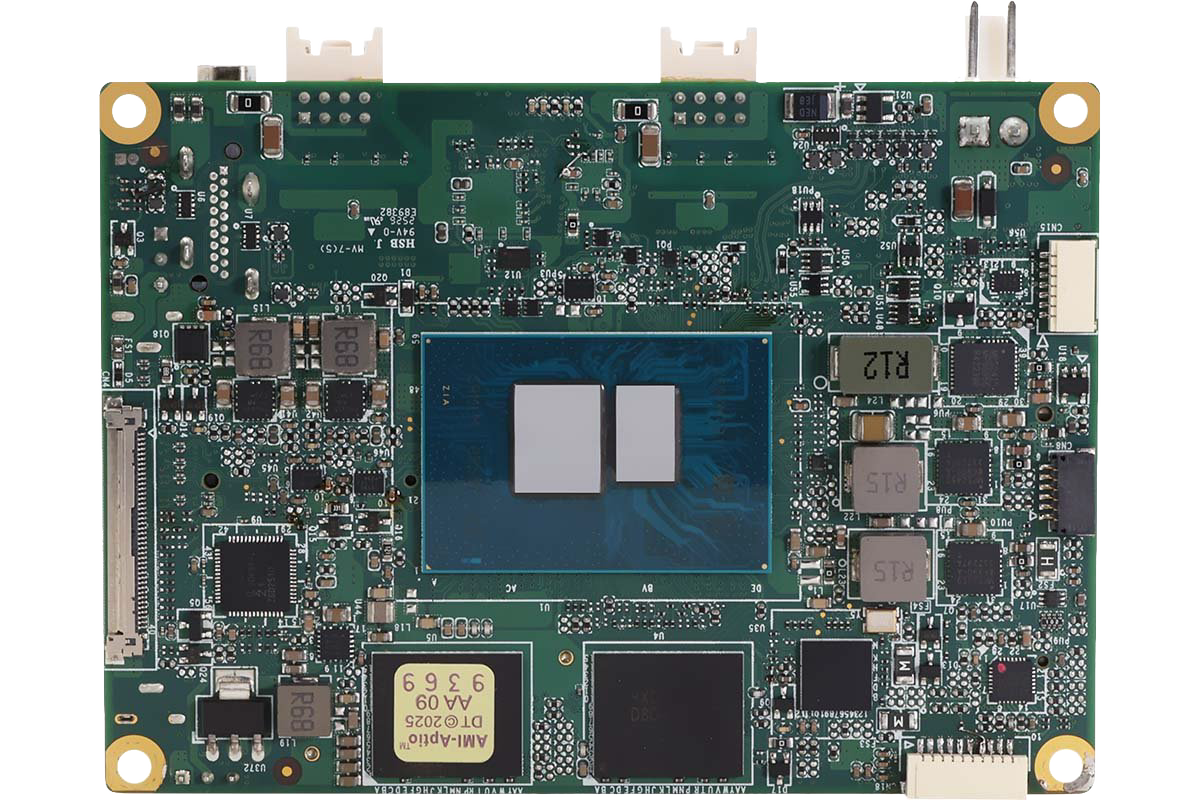

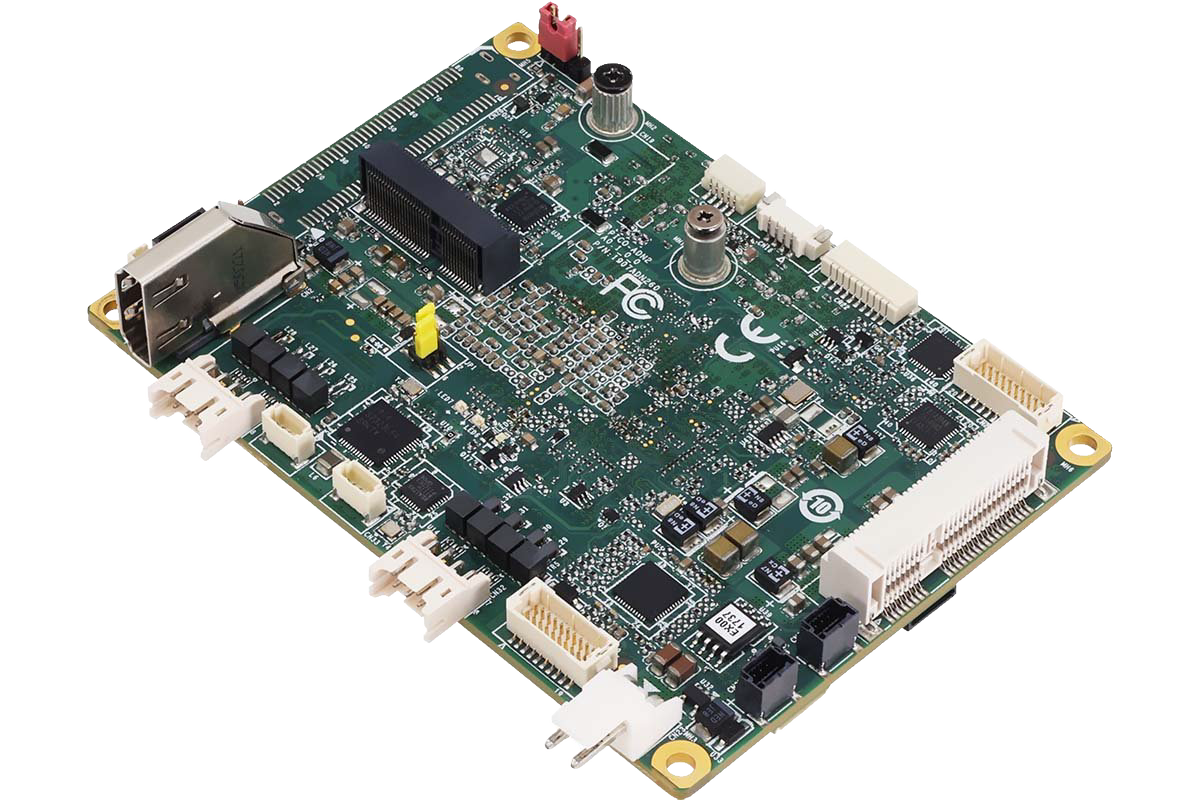

PICO-ADN2-A10-0002 Industrial Motherboard · Intel Core i3-N305
The PICO-ADN2-A10-0002 is a high-capacity Pico-ITX industrial motherboard with an Intel Core i3-N305 processor and 16 GB of LPDDR5x memory. With GbE and 2.5 GbE network connections, rich industrial ports and dual display output support in a compact design, it delivers superior data processing capability in demanding industrial environments and AI-assisted IoT projects.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel® Core™ i3-N305 |
|---|---|
|
Processor Family
|
Intel® Core™ i3 |
|
RAM [System Memory]
|
16 GB LPDDR5x |
Connectivity
|
Video Output
|
HDMI x 1, LVDS x 1 |
|---|---|
|
LAN/Ethernet Port Count
|
GbE x 1, 2.5GbE x 1 |
|
USB 3.2
|
2 |
|
USB 2.0
|
2 |
|
RS-232/422/485 Serial Port
|
2 |
|
Expansion Slot
|
M.2 2230 E-key x 1, miniCard (Full) x 1 |
|
Digital I/O
|
GPIO 4-bit |
Physical
|
Supply Voltage
|
+12V |
|---|---|
|
Operating Temperature
|
-20°C ~ 70°C |
|
External Dimensions (mm)
|
100mm x 72mm |
|
Weight (kg)
|
0.08 kg |
System
|
Form Factor
|
Pico-ITX |
|---|---|
|
AI Accelerator / GPU
|
Intel® UHD Graphics |
Supported Operating Systems
Windows 10/11 (64-bit), Ubuntu 24.04.2
Product at a Glance
PICO-ADN2-A10-0002 — Industrial Motherboard.
The standard configuration ships with Intel Core i3-N305 processor and 16 GB RAM. Video output: HDMI x 1, LVDS x 1. For connectivity it provides 1 Ethernet ports. Ports: USB 3.2 (2), USB 2.0 (2); serial port: 2. The device has external dimensions of 100mm x 72mm mm and a weight of 0.08 kg. Power input: +12V. It operates in the -20°C ~ 70°C range. Supported operating systems: Windows 10/11 (64-bit), Ubuntu 24.04.2.
