OMNI-ADP-KIT-A2-1010 Industrial Panel PC · Intel Core i3-1215UE 6 Core 1.20 / 4.40 GHz
OMNI-ADP-KIT-A2-1010 is the computer box of the AAEON OMNI modular panel PC series featuring an Intel® Core™ i3-1215UE processor.
It does not include a display: it attaches to the back of OMNI panel kits ranging from 10.4" to 27", converting them into a touchscreen panel PC. The same computer box can be used regardless of the screen size.

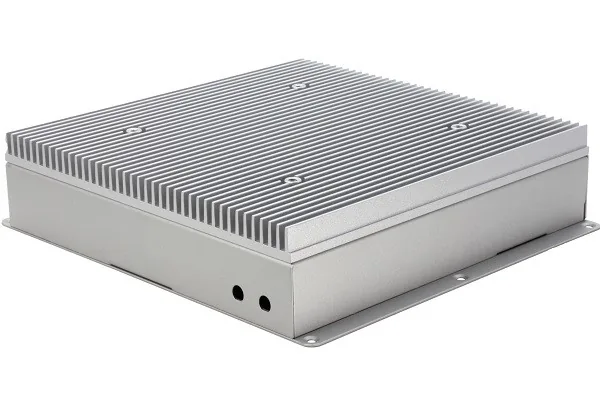

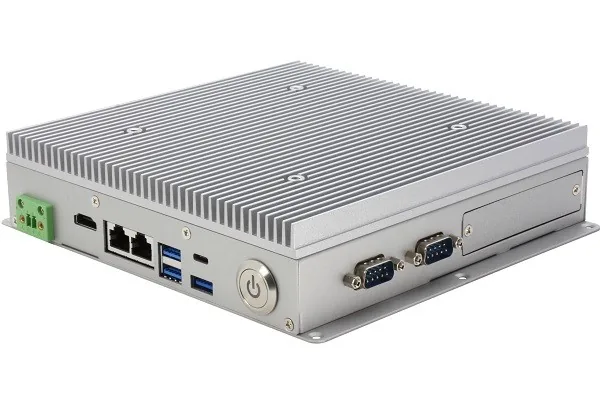

The fanless aluminum body includes one GbE and one 2.5GbE, two RS-232/422/485, HDMI, three USB 3.2 Type-A, and one Type-C port. Two SODIMM slots support up to 64 GB DDR5 4800 memory.
Storage options include M.2 NVMe and 2.5" SATA; 4G/5G can be added via M.2 B-Key, and Wi-Fi via M.2 E-Key. It operates with a 9-30V DC input.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel® Core™ i3-1215UE 6 Core 1.20 / 4.40 GHz | BM : 8550 |
|---|---|
|
Processor Family
|
Intel® Core™ i3 12. Gen |
|
RAM [System Memory]
|
DDR5 4800 SODIMM x 2, Dual Channel [Max 64 GB] |
|
SSD/HDD/mSATA/M.2
|
2.5" SATA x 1 | M.2 2280 M-Key NVMe x 1 |
|
Storage Temperature
|
-20°C ~ 60°C |
Connectivity
|
LAN/Ethernet Port Count
|
x 2 |
|---|---|
|
LAN/Ethernet Port Type
|
GbE x 1 Intel® I219 + 2.5GbE x 1 Intel® I226 |
|
USB 3.2
|
Gen 2 Type-A x 3 + Type-C x 1 |
|
RS-232/422/485 Serial Port
|
DB-9 x 2 |
|
Video Output
|
HDMI 2.0b x 1 |
|
Expansion Slot
|
M.2 3052 B-Key x 1, M.2 2230 E-Key x 1 |
Physical
|
Cooling
|
Fanless |
|---|---|
|
Mounting Type
|
VESA |
|
Supply Voltage
|
DC 9-30V, minimum 120W adapter recommended |
|
Operating Temperature
|
-20°C ~ 50°C, with 0.7 m/s airflow |
|
External Dimensions (mm)
|
200 x 45 x 180 |
|
Weight (kg)
|
1.15 |
|
Body Material
|
Aluminium |
System
|
Anti-Vibration
|
1Grms, 5~500Hz, operating |
|---|---|
|
Certifications
|
CE, FCC Class A |
Supported Operating Systems
Windows® 10 | Windows® 11 | Operating system license is sold separately.
Product at a Glance
OMNI-ADP-KIT-A2-1010 — Industrial Panel PC.
The standard configuration ships with Intel Core i3-1215UE 6 Core 1.20 / 4.40 GHz processor. Supports up to 64 GB of RAM. Storage support: 2.5" SATA x 1, M.2 2280 M-Key NVMe x 1. Video output: HDMI 2.0b x 1. For connectivity it provides 2 Ethernet ports. Ports: USB 3.2 (Gen 2 Type-A x 3 + Type-C x 1); serial port: DB-9 x 2. The device has external dimensions of 200 x 45 x 180 mm, a weight of 1.15 kg and a aluminium body. Power input: DC 9-30V, minimum 120W adapter recommended; mounting: VESA. It operates in the -20°C ~ 50°C, with 0.7 m/s range. Supported operating systems: Windows 10 / Windows 11.
