OMNI-ADN-KIT-A1-1010 Industrial Panel PC · Intel N50 2 Core 1.00 / 3.40 GHz
OMNI-ADN-KIT-A1-1010 is the computer box of the AAEON [An ASUS Co.] OMNI modular panel PC series featuring an Intel® N50 processor.
It does not include a display: it attaches to the back of OMNI panel kits ranging from 10.4" to 21.5", converting them into a touch panel PC. The same computer box can be used regardless of the screen size.

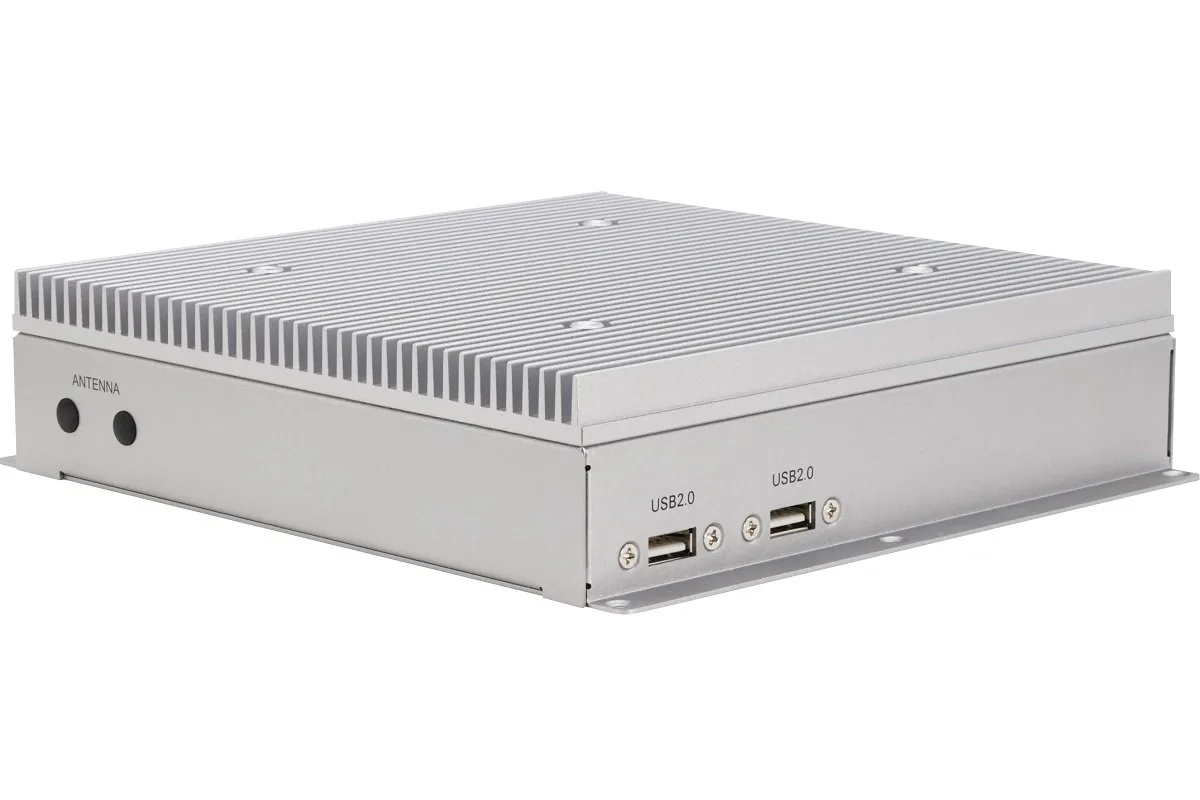

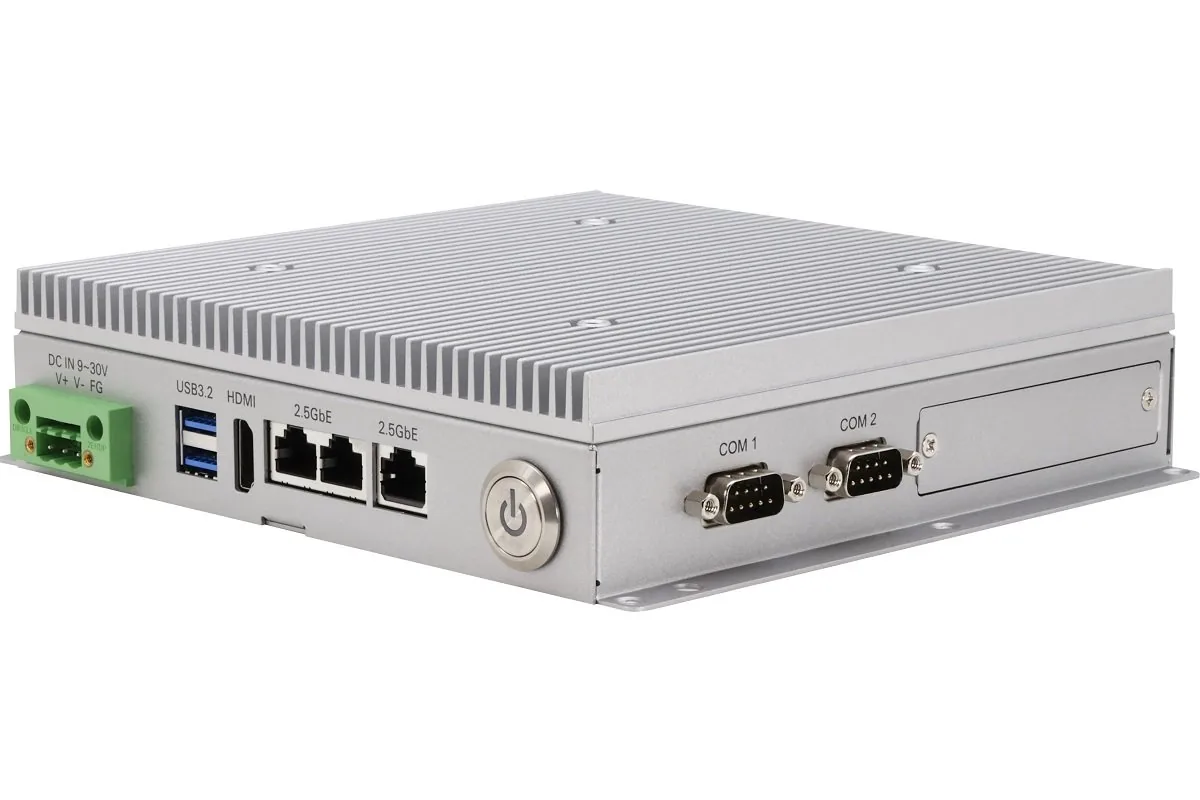

The fanless body includes three Intel I226 GbE, two RS-232/422/485, HDMI, and four USB ports. DDR5 4800 memory supports up to 16 GB.
4G/5G can be added via M.2 B-Key and Nano SIM, and Wi-Fi via M.2 E-Key. It operates with a 9-30V DC input.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel® N50 2 Core 1.00 / 3.40 GHz | BM : 2600 |
|---|---|
|
Processor Family
|
Intel® Processor N® |
|
RAM [System Memory]
|
DDR5 4800 SODIMM x 1 [Max 16 GB] |
|
SSD/HDD/mSATA/M.2
|
2.5" SATA x 1 | Full-size mPCIe/mSATA x 1 |
|
Storage Temperature
|
-20°C ~ 60°C |
Connectivity
|
LAN/Ethernet Port Count
|
x 3 |
|---|---|
|
LAN/Ethernet Port Type
|
GbE x 3, Intel® I226 |
|
USB 3.2
|
x 2 |
|
USB 2.0
|
x 2 kablo ile |
|
RS-232/422/485 Serial Port
|
DB-9 x 2 |
|
Video Output
|
HDMI 1.4b x 1 |
|
Expansion Slot
|
M.2 3052 B-Key x 1 Nano SIM ile, M.2 2230 E-Key x 1 |
Physical
|
Cooling
|
Fanless |
|---|---|
|
Mounting Type
|
Panel / VESA 100 |
|
Supply Voltage
|
DC 9-30V, 3-pin terminal blok |
|
Operating Temperature
|
-20°C ~ 50°C, with airflow |
|
External Dimensions (mm)
|
200 x 45 x 180 |
|
Weight (kg)
|
1.15 |
|
Body Material
|
Aluminum front frame + metal chassis |
System
|
Certifications
|
CE, FCC Class A |
|---|
Supported Operating Systems
Windows® 10 IoT Enterprise LTSC 2021 | Windows® 10/11 | Operating system license is sold separately.
Bu ürünü yapılandırın
Yalnızca bu ürüne uyumlu parçalarİşlemci, bellek, disk ve aksesuarları seçin; seçimlerinizi teklif talebine tek tıkla aktarın. Uyumluluk ve adet sınırları üreticinin kendi verisinden gelir.
Product at a Glance
OMNI-ADN-KIT-A1-1010 — Industrial Panel PC.
The standard configuration ships with Intel N50 2 Core 1.00 / 3.40 GHz processor. Supports up to 16 GB of RAM. Storage support: 2.5" SATA x 1, Full-size mPCIe/mSATA x 1. Video output: HDMI 1.4b x 1. For connectivity it provides 3 Ethernet ports. Ports: 2 x USB 3.2, 2 x USB 2.0; serial port: DB-9 x 2. The device has external dimensions of 200 x 45 x 180 mm, a weight of 1.15 kg and a Aluminum front frame + metal chassis body. Power input: DC 9-30V, 3-pin terminal blok; mounting: Panel / VESA 100. It operates in the -20°C ~ 50°C, with airflow range. Supported operating systems: Windows 10 IoT Enterprise LTSC 2021 / Windows 10/11.
