IPC4PRO by ICC

IPC4PRO-070W-C20-6412 7" Industrial Panel PC · Intel Celeron J6412 4 Core 2.00 / 2.60 GHz

The IPC4PRO is a rugged, high-performance panel computer equipped with advanced processors up to Intel® 13th Gen Core™ and supports the EtherCAT protocol, designed to deliver superior performance in harsh environments.

Offering versatile computing power, the IPC4PRO provides a range of processors from Intel® Celeron® to 13th Gen Core™ i7, delivering performance levels that meet the needs of various industries and applications.

The IPC4PRO features display options ranging from 7" to 27" with striking Full HD resolution, ideal for sectors requiring sharp, high-quality visuals, from manufacturing to industrial automation.

Built with durability in mind, the IPC4PRO offers an IP65-rated front panel and both fan and fanless designs, ensuring reliable performance and resistance to dust and water even in the toughest environments.

With panel-embedded, VESA75, and VESA100 configurations, flexible mounting options make installation quick and simple, enabling seamless integration into any setup.

Manufactured with high-quality components and a robust body, the IPC4PRO is designed to provide reliable and uninterrupted service for many years, making it an excellent long-term investment for industrial use.

The IPC4PRO supports comprehensive connectivity with multiple LAN ports and EtherCAT protocol compatibility, guaranteeing seamless integration with complex networks and automated systems.

Highly customizable with RAM and storage options, the device allows users to tailor the hardware to specific operational requirements, ensuring the right fit for any application.

Thanks to ICC's extensive inventory, fast delivery is ensured, minimizing downtime and enabling rapid deployment of IPC4PRO for businesses requiring reliable, high-performance Panel PCs.

EtherCAT protocol support in the IPC4PRO enables high-speed communication and control, enhancing productivity and efficiency on production lines by facilitating faster and more accurate automation.

Offering powerful Intel® 13th Gen Core™ i5 and i7 processors alongside Intel® Celeron® options, the IPC4PRO provides users with a wide range of choices to achieve optimal performance for any task or application.

Equipped with vibrant TFT LCD screens ranging from 7" to 27", the IPC4PRO delivers clear visuals and facilitates interaction with capacitive or resistive multi-touch options.

The True-Flat screen design not only improves aesthetics but also simplifies cleaning and maintenance, providing an easy-to-use, sleek, and modern interface for industrial environments.

With an IP65-class aluminum front panel, the IPC4PRO offers superior protection against dust and water, making it ideal for demanding work environments where durability is critical.

Enjoy flexible installation options with panel-embedded mounting and VESA75 and VESA100 compatibility, giving users the freedom to integrate the IPC4PRO smoothly into their setups.

The robust construction and quality components of the IPC4PRO ensure reliable and long-lasting operation, reducing maintenance needs and providing a dependable solution for critical applications.

With EtherCAT support, the IPC4PRO delivers higher speed and precision in automation, helping companies increase production line efficiency and reduce operational costs through faster processing.

Multiple LAN ports and other connectivity options allow the IPC4PRO to easily connect to various networks, providing flexible and reliable operation in complex automated environments.

Various screen sizes and touch options enable the IPC4PRO to be adapted to many industries, offering a flexible and practical solution for healthcare, manufacturing, and more.

Easy to install, rugged, and packed with customizable options, the IPC4PRO is a premium choice for high-performance, reliable panel computing in challenging environments.

Get a Quote

Technical Specifications TECHNICAL SPECIFICATIONS

Display

Screen Size

7" TFT LCD

Resolution

1280 x 800

Screen Format

16 | 10

Brightness

300 cd/m²

Contrast Ratio

800 | 1

Viewing Angle

178°(H) / 178°(V)

Touch Type

Resistive

Backlight Life (Min. Hours)

50000

Performance

Processor (CPU)

Intel® Celeron® J6412 4 Core 2.00 / 2.60 GHz BM: 4080

Processor Family

Intel® Celeron®

RAM [System Memory]

Standard 8 GB [Max 16 GB]

SSD/HDD/mSATA/M.2

Standard 128 GB mSATA | [Upgradeable]

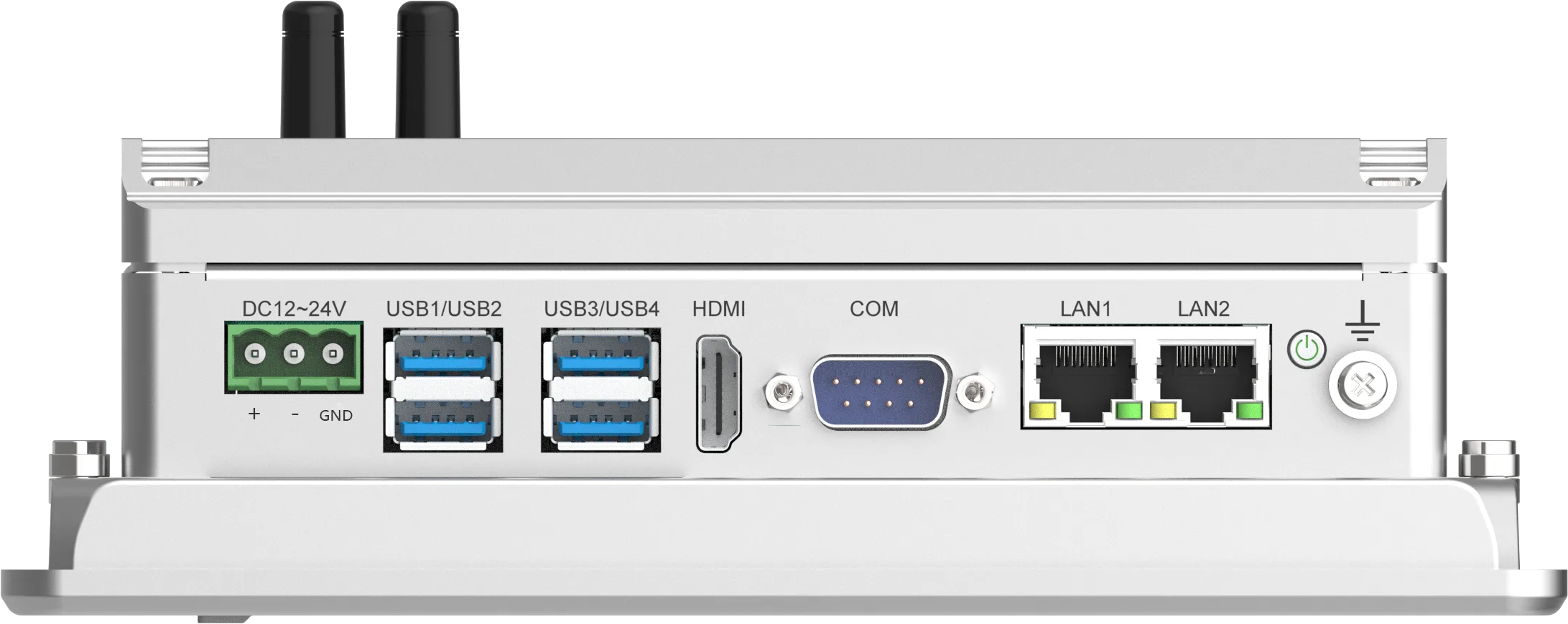

Connectivity

USB 3.0

x 1 on Front Panel + x 4 on Rear

RS-232 Serial Port

x 2

RS-232 / RS-485 Serial Port

x 2 [Selectable on Motherboard]

Video Output

HDMI x 1

Digital I/O

4DI / 4DO

Audio Output

Line-out x 1

Expansion Slot

Mini-PCIe [x2] [for mSATA and WiFi-BT module]

Wireless Connectivity

Internal Wireless - Wi-Fi : 802.11

Bluetooth

BT4.1

Physical

Cooling

Fanless

Power Consumption

30W

Mounting Type

VESA / Panel Mount | Mounting kit is not included.

Supply Voltage

DC 12-36V [Adapter included in the package.]

Operating Temperature

-15°C ~ 60°C

External Dimensions (mm)

204.5 x 149.5 x 64

Cut-out Dimensions (mm)

194.1 x 139.1

Body Material

Aluminium | Body Colour: Metallic Grey

IP Protection Class

Front Panel IP65 + Sealing Strip on Inner Edges

Supported Operating Systems

Supported Operating Systems

Windows®11 [Pre-installed] | Windows®10 | Linux | Operating system license is sold separately.

Windows Linux

Product at a Glance

Product Summary

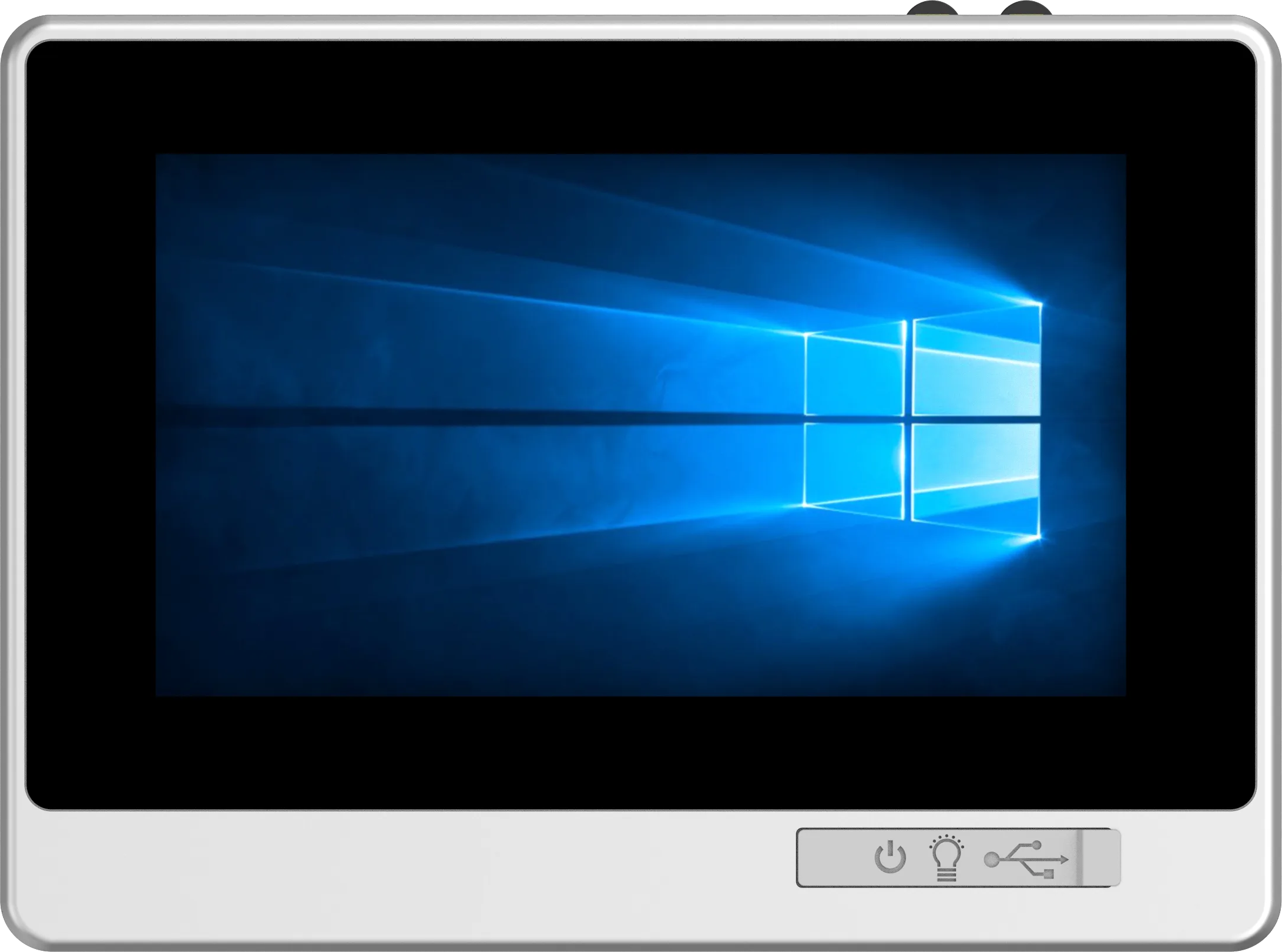

IPC4PRO-070W-C20-6412 — 7" TFT LCD display Industrial Panel PC.

The standard configuration ships with Intel Celeron J6412 4 Core 2.00 / 2.60 GHz processor, 8 GB RAM and 128 GB mSATA storage. Video output: HDMI x 1. For connectivity it provides Internal Wireless - Wi-Fi : 802.11 and BT4.1. Ports: USB 3.0 (x 1 on Front Panel + x 4 on Rear); 2 x serial port; audio output: Line-out x 1. The device has external dimensions of 204.5 x 149.5 x 64 mm and a aluminium body. Power input: DC 12-36V; mounting: VESA / Panel Mount. It carries IP65 front panel protection and it operates in the -15°C ~ 60°C range. It features A resistive touch touch screen. Supported operating systems: Windows 11 / Windows 10 / Linux.
