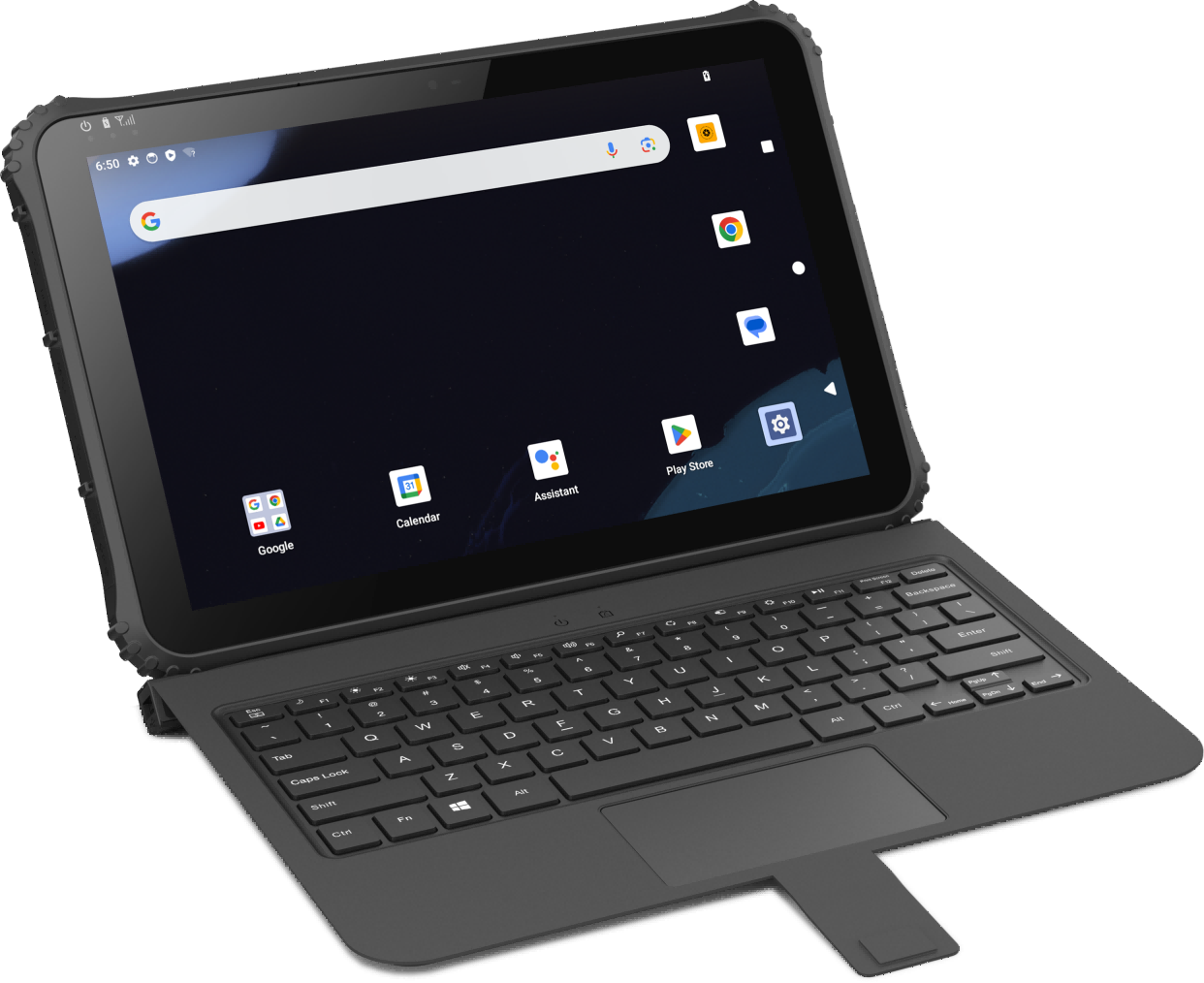

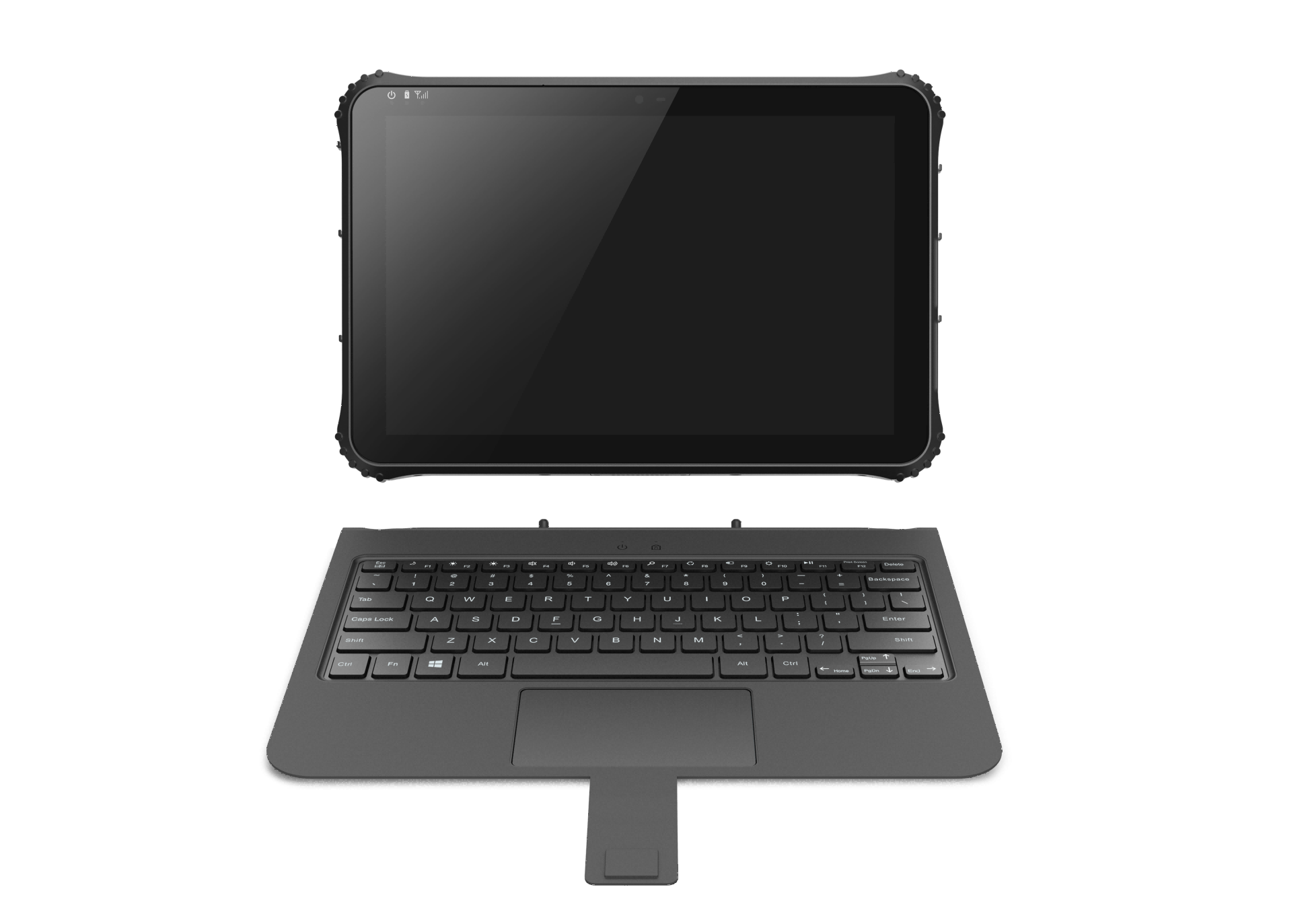

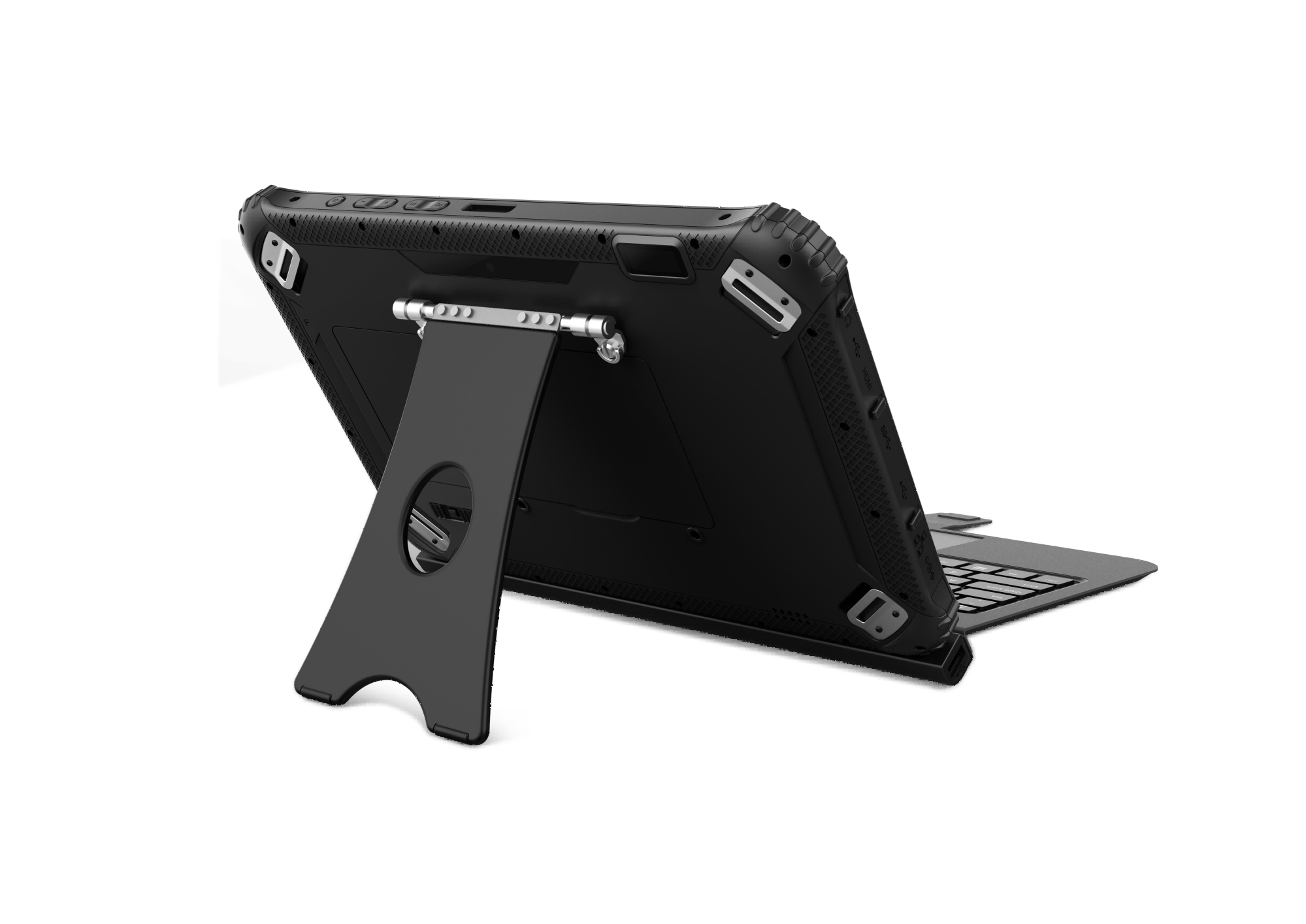

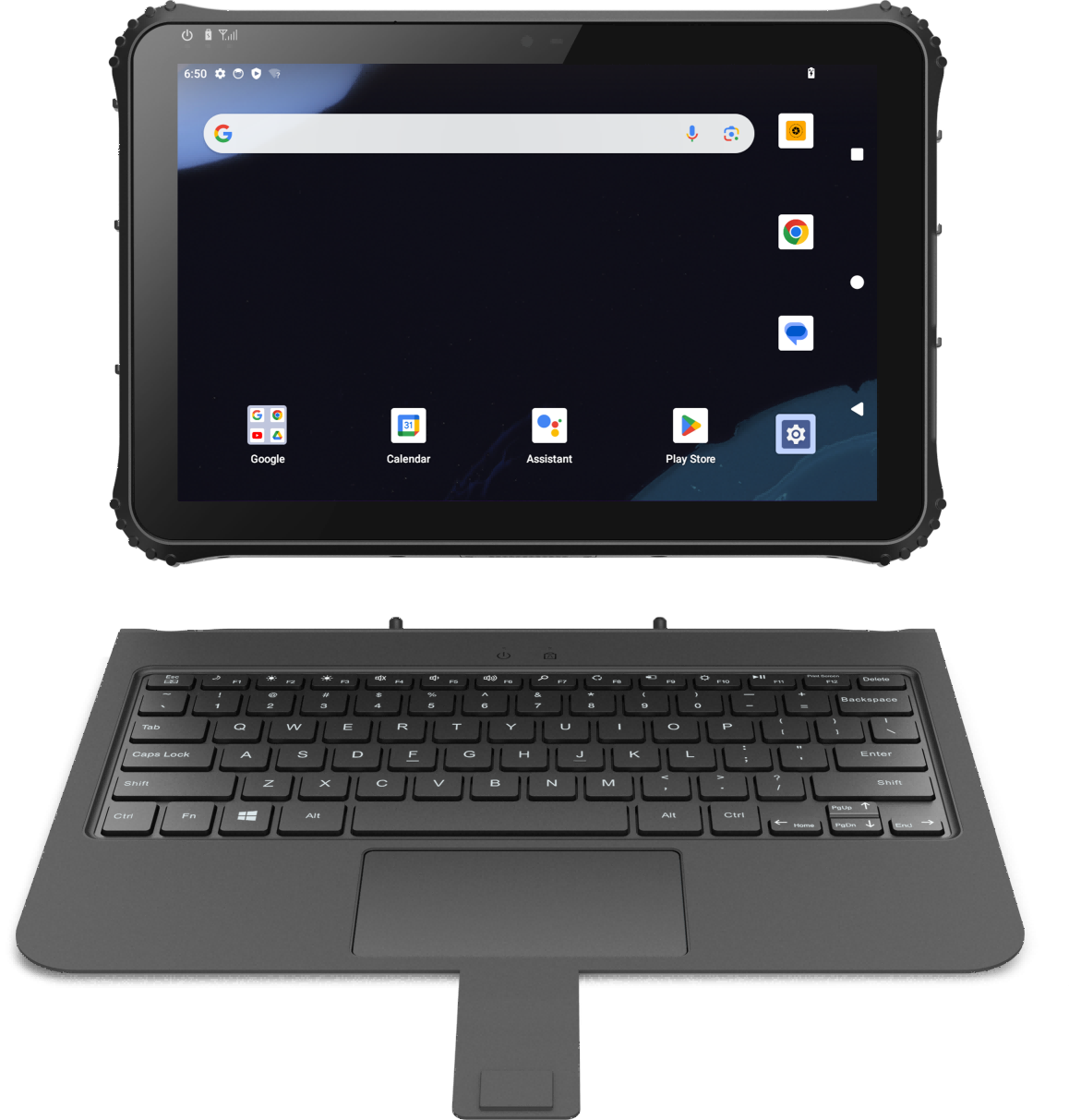

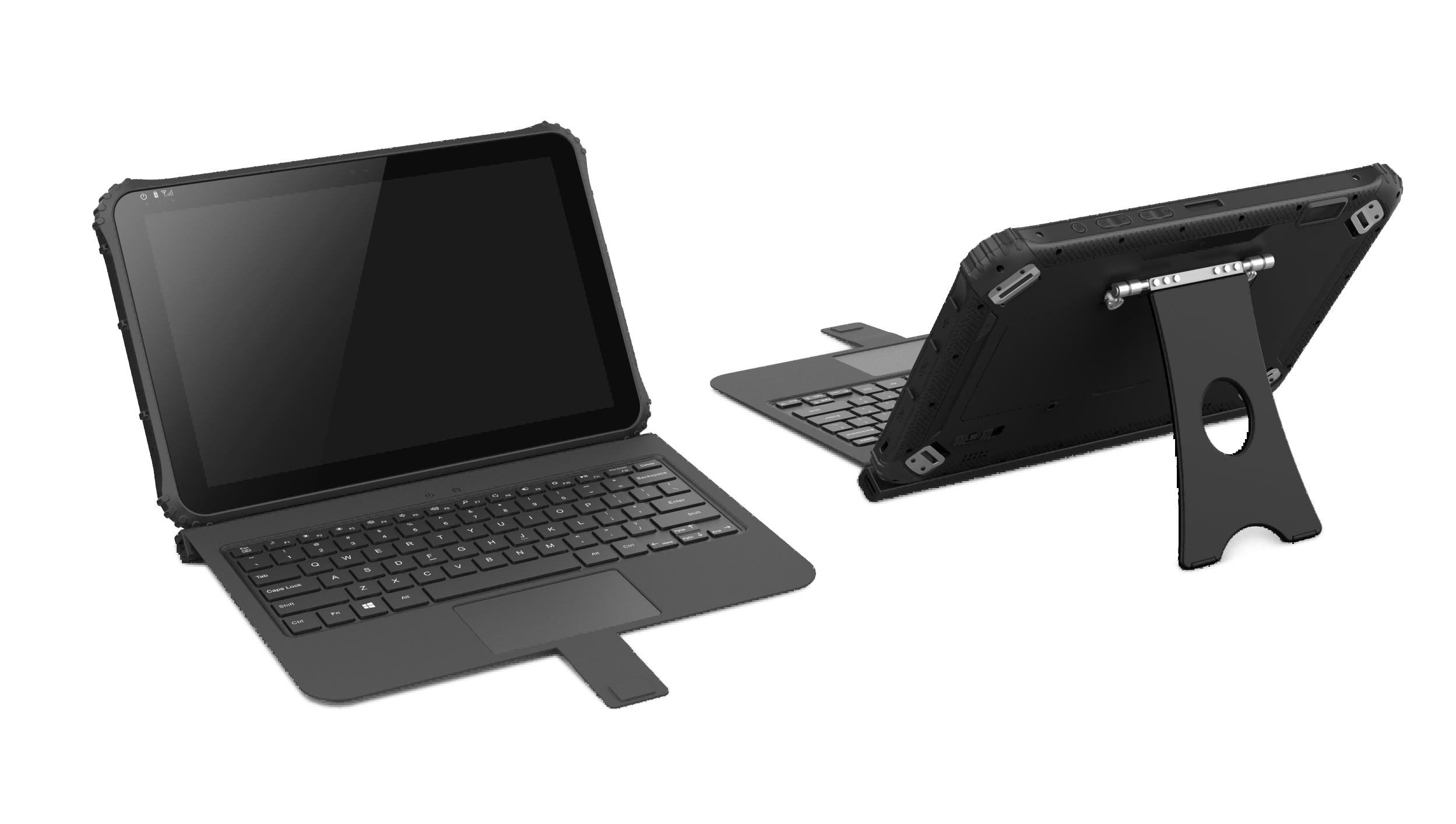

IPC4-RL-AQ225MP-QCM6490-8128 12.2" Industrial Tablet PC · Qualcomm QCM6490
The IPC4-RT-AQ225MP-QCM6490-8128 combines an ARM 5G octa-core processor, the Android 14 operating system, comprehensive I/O (input/output) ports and a removable 12,600 mAh battery.
Ideal for engineers, inspectors and field professionals, this device delivers fast data transfer, smooth multitasking performance, precise scanning and all-day productivity.
Technical Specifications TECHNICAL SPECIFICATIONS
Display
|
Screen Size
|
12.2" FHD |
|---|---|
|
Resolution
|
1920 x 1200 |
|
Brightness
|
700 nits |
|
Touch Type
|
10-point capacitive touchscreen, supports the GP930 active stylus. |
Performance
|
Processor (CPU)
|
Qualcomm® QCM6490 |
|---|---|
|
RAM [System Memory]
|
8GB LPDDR4x |
|
Storage
|
128GB UFS |
|
Storage Temperature
|
-30℃ ~ 70℃ |
Connectivity
|
LAN/Ethernet Port Count
|
10/100M/1000M Ethernet (RJ45) x 1 |
|---|---|
|
USB 3.0
|
USB 3.0 (Type-A) x 1 |
|
USB 2.0
|
USB 2.0 (Type-A) x 2, USB 2.0 (Type-C) x 1 |
|
RS-232 Serial Port
|
x 1 (D-sub, 9-pin) |
|
RS-485 Serial Port
|
x 1 (D-sub, 9-pin) |
|
Video Output
|
HDMI 1.4 mini x 1 |
|
Audio Output
|
3.5mm audio jack x 1 |
|
Expansion Slot
|
Micro SD card x 1, SIM card x 1, 12-pin Pogo pin x 1 |
|
Wireless Connectivity
|
Wi-Fi 6E (802.11 ax) |
|
Bluetooth
|
Bluetooth 5.2 |
|
Positioning (GNSS)
|
GPS/GLONASS/Beidou/Galileo/QZSS |
Physical
|
Supply Voltage
|
AC adapter: 100-240V, 20W (5V/4A), 3.5 mm DC in jack x 1 |
|---|---|
|
Operating Temperature
|
-20℃ ~ 60℃ |
|
External Dimensions (mm)
|
319.6 mm (L) × 216 mm (W) × 24.3 mm (H) |
|
Weight (kg)
|
1500g |
|
Body Colour
|
Siyah |
|
IP Protection Class
|
IP65 |
System
|
AI Accelerator / GPU
|
Qualcomm® Adreno™ 643L |
|---|---|
|
Kamera
|
Front 5.0MP + Rear 13.0MP |
|
Mobile Communication
|
4G / 5G |
|
Veri Toplama
|
HF-RFID (NFC) reader, 1D/2D Barcode Scanner |
|
Batarya
|
Li-ion battery, 3.7V, 12600mAh, 7.9h |
|
Nem
|
95% non-condensing |
|
Certifications
|
MIL-STD-810H |
|
Drop Resistance
|
1, 22 metre düşme dayanıklılığı |
Supported Operating Systems
Android 14
Product at a Glance
IPC4-RL-AQ225MP-QCM6490-8128 — 12.2" FHD display Industrial Tablet PC.
The standard configuration ships with Qualcomm QCM6490 processor, 8GB RAM and 128GB UFS storage. Video output: HDMI 1.4 mini x 1. For connectivity it provides 10 Ethernet ports, Wi-Fi 6E (802.11 ax) and Bluetooth 5.2. Ports: USB 3.0 (USB 3.0 (Type-A) x 1), USB 2.0 (USB 2.0 (Type-A) x 2, USB 2.0); 1 x serial port (D-sub, 9-pin); audio output: 3.5mm audio jack x 1. The device has external dimensions of 319.6 mm (L) × 216 mm (W) × 24.3 mm (H) mm and a weight of 1500g. Power input: AC adapter: 100-240V, 20W (5V/4A), 3.5 mm DC in jack. It carries IP65 protection and it operates in the -20℃ ~ 60℃ range. It features A capacitive touch touch screen. Supported operating systems: Android 14.
