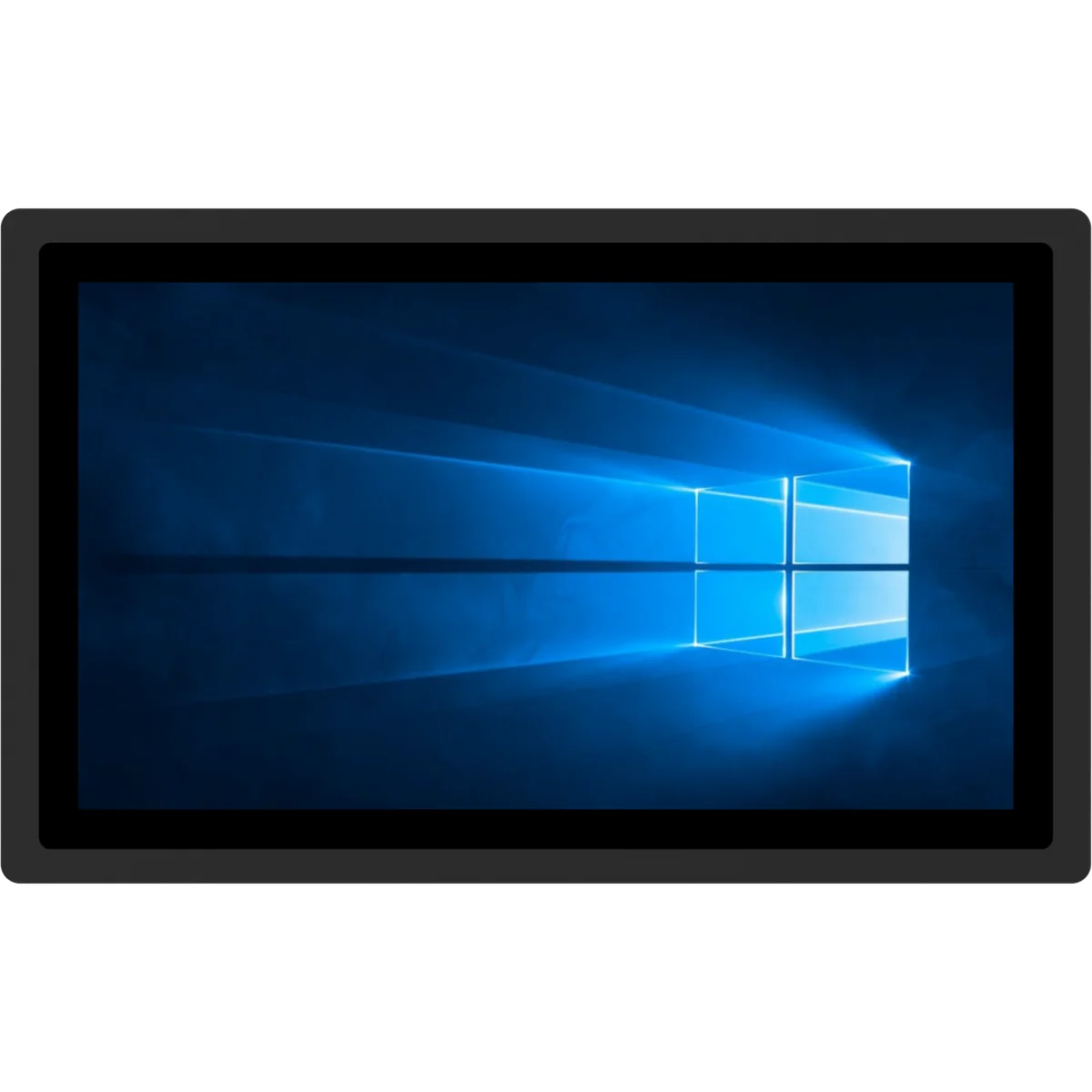

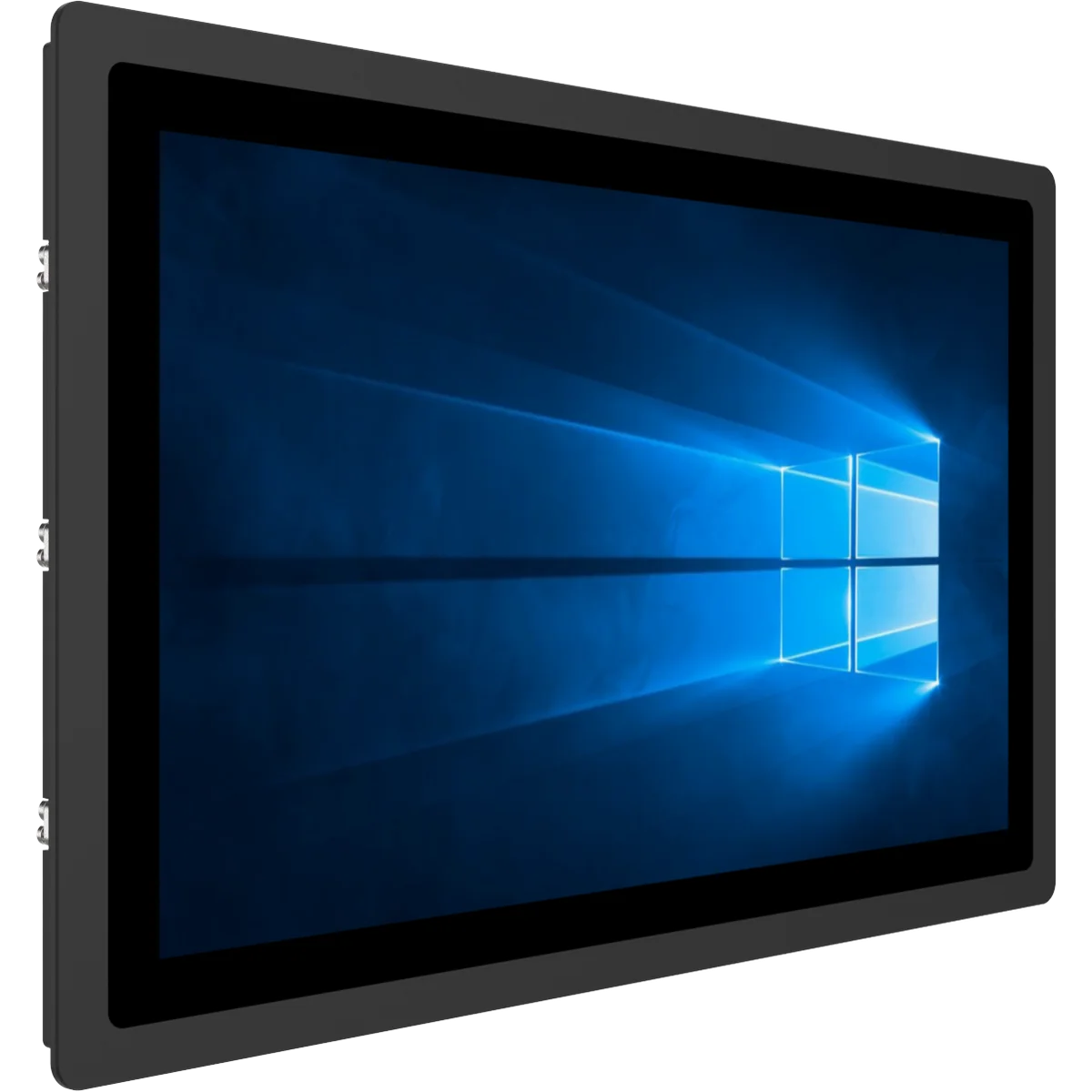

IPC4-215W-N10-95-G2 21.5" Industrial Panel PC · Intel N95 4 Core 1.70 / 3.40 GHz

IPC4 G2 is a refreshed version of the classic black-cased industrial panel PC. It offers performance, durability, and efficiency with the Intel® N95 processor.

With its compact body and USB-less front, IPC4 G2 stands out with its design that prioritizes hygiene and safety in production environments.

The Intel® N95 processor is designed for high performance with low power consumption, making it suitable for 24/7 uninterrupted operation.

With screen options of 10.1”, 11.6”, 15.6”, 17”, 17.3” and 21.5”, IPC4 G2 easily adapts to different industrial applications.

Thanks to its IP65 rated front panel, it is resistant to dust, oil, and liquid splashes; ideal for harsh production lines.

The fanless design provides a quiet and dust-free working environment. It reduces maintenance requirements and offers long-lasting use.

The true-flat glass surface offers easy cleaning and durability while providing a simple and professional aesthetic.

The high-brightness TFT LCD screen provides clear viewing and comfortable use even in bright environments.

Its aluminum body efficiently dissipates heat, maintaining system stability and providing long-term operational durability.

The capacitive touch panel offers precise and quick control to the user, enhancing ergonomics in production automation.

IPC4 G2 can be easily integrated into any panel and control unit with standard VESA and panel mounting options.

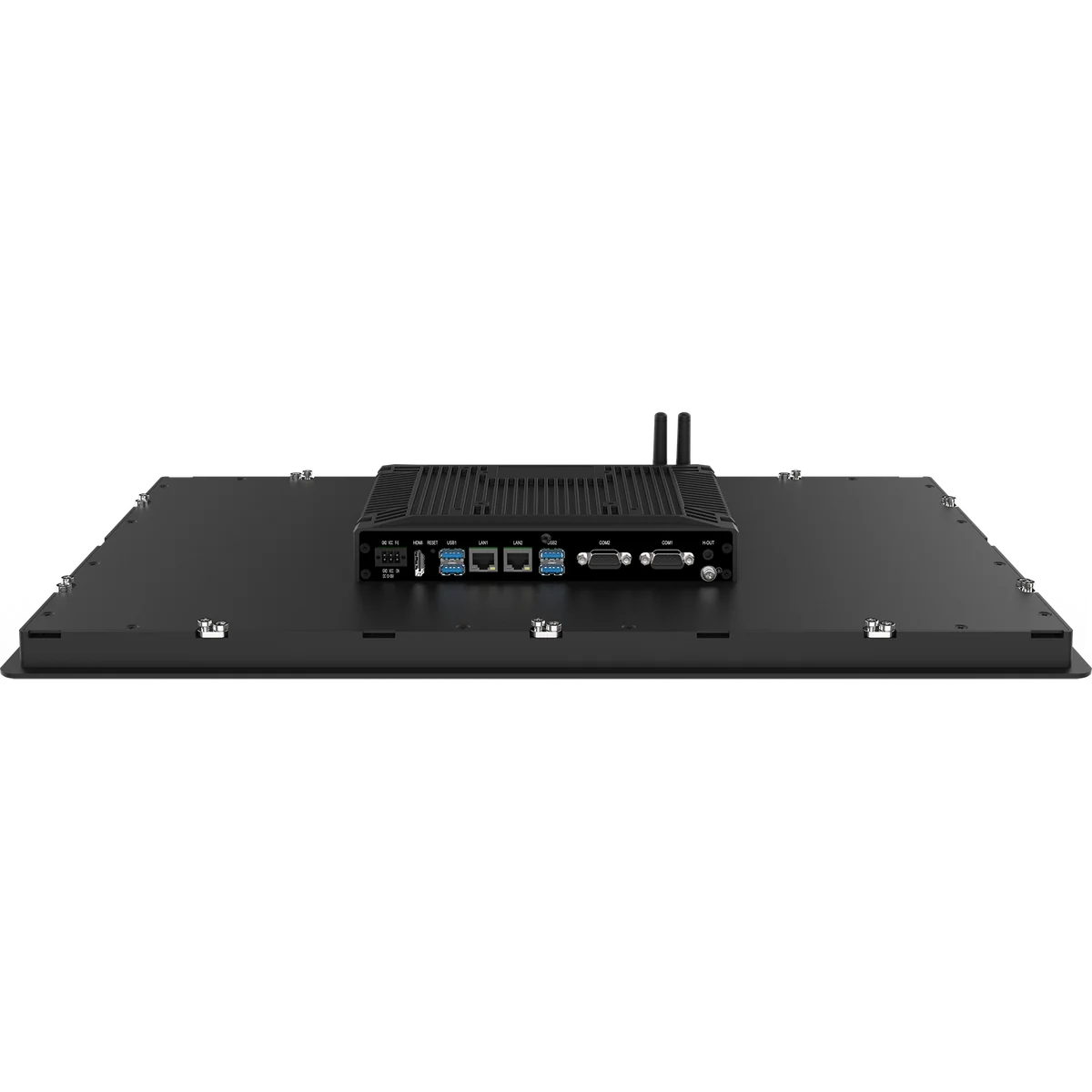

Provides high flexibility in data collection, control, and monitoring tasks with wide connection ports.

Full HD resolution support produces sharp and detailed visuals in industrial imaging and SCADA applications.

The redesigned internal components are compatible with the IPC4PRO architecture, providing more stable and higher-speed communication.

Thanks to its silent operation structure, it can also be comfortably used in office-type production areas.

With its long-lasting industrial components, the IPC4 G2 offers high reliability even in harsh conditions.

With energy efficiency and durability, IPC4 G2 reduces the total cost of ownership.

IPC4 G2, which completely renews its internal technology while preserving its classic design, combines the trust of the past with the power of the future.

IPC4 G2 serves as a central control point in modern production lines with its Industry 4.0-ready structure.

The IPC4 G2, offered with ICC assurance, ensures fast delivery and project continuity thanks to its strong stock structure.

Get a Quote

Technical Specifications TECHNICAL SPECIFICATIONS

Display

Screen Size

21.5" TFT LCD

Resolution

1920 x 1080

Screen Format

16 | 9

Brightness

250 cd/m²

Contrast Ratio

1000 | 1

Viewing Angle

178°(H) / 178°(V)

Touch Type

Projected Capacitive [P-CAP]

Backlight Life (Min. Hours)

50000

Performance

Processor (CPU)

Intel® N95 4 Core 1.70 / 3.40 GHz BM: 5300

Processor Family

Intel® Processor N®

RAM [System Memory]

Standard 8 GB [Max 16 GB]

SSD/HDD/mSATA/M.2

Standard 128 GB mSATA | [Upgradeable]

Connectivity

LAN/Ethernet Port Count

x 2

USB 3.0

x 2

USB 2.0

x 2

RS-232 Serial Port

x 2

RS-485 Serial Port

Optional

Video Output

HDMI x 1

Digital I/O

4DI / 4DO

Audio Output

Line-out x 1 + Built-in Speaker

Expansion Slot

Mini-PCIe [x2]

Wireless Connectivity

Internal Wireless - Wi-Fi : 802.11

Bluetooth

BT4.1

Physical

Cooling

Fanless

Power Consumption

45W

Mounting Type

VESA / Panel Mount | Mounting kit is not included.

Supply Voltage

DC 12-36V [Adapter included in the package.]

External Dimensions (mm)

557 x 345 x 63

Cut-out Dimensions (mm)

538.6 x 326.6

Body Material

Aluminium | Body Colour: Black

IP Protection Class

Front Panel IP65 + Sealing Strip on Inner Edges

Product at a Glance

Product Summary

IPC4-215W-N10-95-G2 — 21.5" TFT LCD display Industrial Panel PC.

The standard configuration ships with Intel N95 4 Core 1.70 / 3.40 GHz processor, 8 GB RAM and 128 GB mSATA storage. Video output: HDMI x 1. For connectivity it provides 2 Ethernet ports, Internal Wireless - Wi-Fi : 802.11 and BT4.1. Ports: 2 x USB 3.0, 2 x USB 2.0; 2 x serial port; audio output: Line-out x 1 + Built-in Speaker. The device has external dimensions of 557 x 345 x 63 mm and a aluminium body. Power input: DC 12-36V; mounting: VESA / Panel Mount. It carries IP65 front panel protection. It features A P-CAP touch screen.
