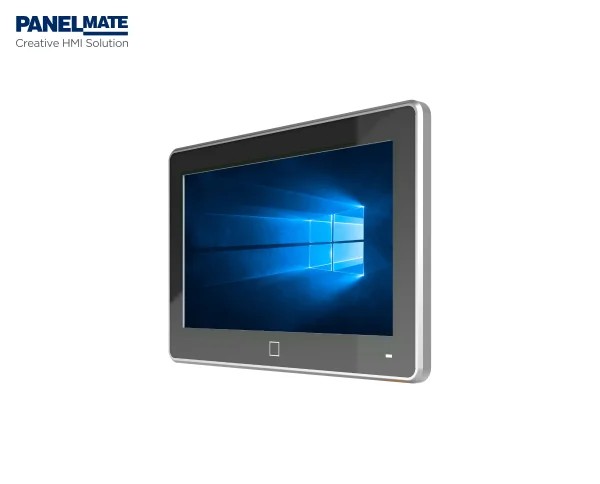

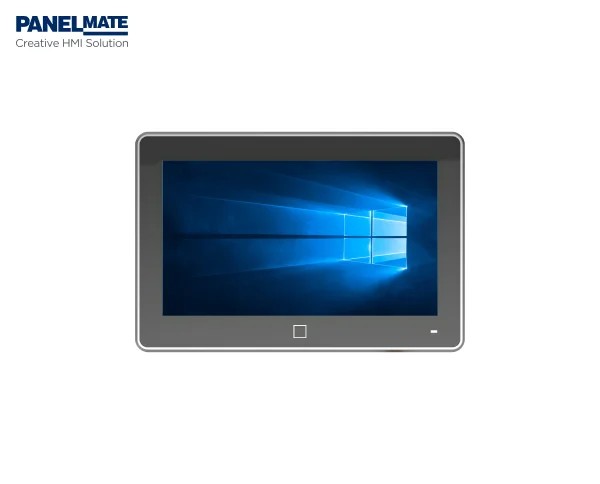

IDD62215-R2-VESA 21.5" Industrial Monitor

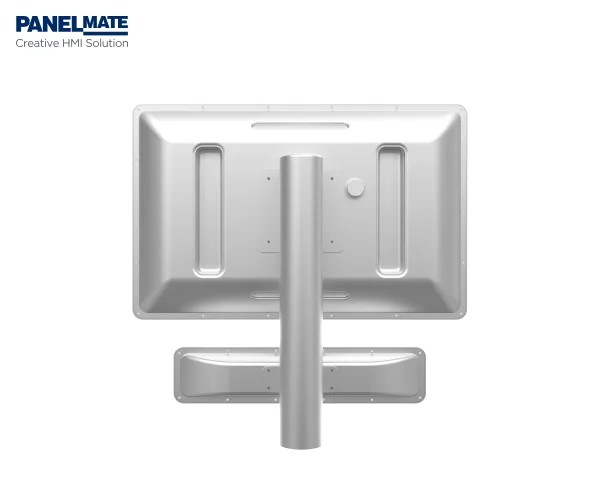

IDD62215-R2-VESA is a 21.5-inch PANELMATE stainless steel industrial monitor with an articulated arm, designed for facilities where hygiene is critical, such as food, packaging, and pharmaceutical industries. Its body is made entirely of 304 stainless steel, and the rounded flat surface design facilitates easy cleaning after washing and disinfection.
It has an IP65 protection rating. The display features a 1920 x 1080 resolution screen with projected capacitive touch. Connections use M12 connectors, and the power supply is DC 24V.

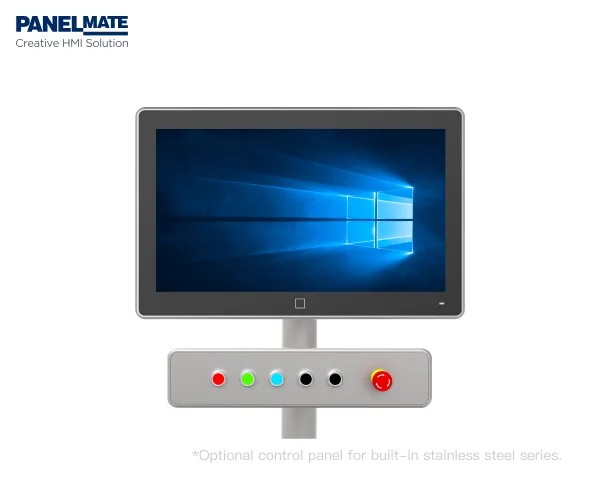

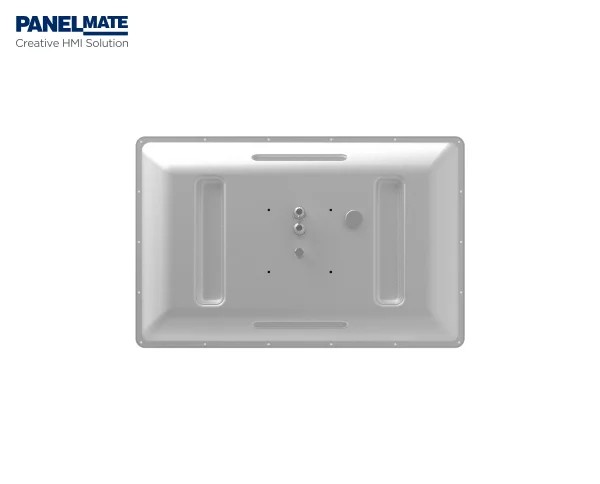

In the R2 version, video and USB signals are transmitted up to 100 meters over a single CAT6 cable via IDD-LINK4; the computer side uses the IDD-LINK4-T transmitter box. It includes a VESA 100 x 100 mounting hole; mounting hardware is not included. Optional PANEL62215 stainless steel button units can be added for emergency stop and control buttons.
Technical Specifications TECHNICAL SPECIFICATIONS
Display
|
Screen Size
|
21.5" TFT LCD |
|---|---|
|
Resolution
|
1920 x 1080 |
|
Screen Format
|
16 | 9 |
|
Brightness
|
250 cd/m² |
|
Contrast Ratio
|
3000 | 1 |
|
Viewing Angle
|
178°(H) / 178°(V) |
|
Touch Type
|
Projected Capacitive [P-CAP] |
Connectivity
|
Video Input
|
M12 8pin IDD-LINK4 | Video and USB over a single CAT6 cable up to 100 m |
|---|
Physical
|
Power Consumption
|
30W |
|---|---|
|
Mounting Type
|
VESA 100 x 100 | Mounting kit is not included. |
|
Supply Voltage
|
DC 24V |
|
Operating Temperature
|
0°C ~ 50°C |
|
Body Material
|
304 Stainless Steel |
|
IP Protection Class
|
IP65 |
Product at a Glance
IDD62215-R2-VESA — 21.5" TFT LCD display Industrial Monitor.
The device has a 304 Stainless Steel body. Power input: DC 24V; mounting: VESA 100 x 100. It carries IP65 protection and it operates in the 0°C ~ 50°C range. It features A P-CAP touch screen.
