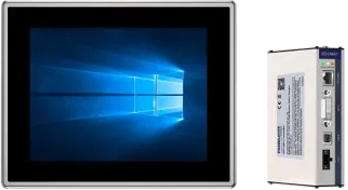

IDD22121EX-R2 12.1" ExProof Atex Panel PC
IDD22121EX-R2 is an explosion-proof control panel specifically designed for harsh industrial environments, featuring a size of 12.1 inches and a resolution of 1024 x 768 pixels. It offers precise and easy usage with multi-touch capacitive touch screen (P-CAP) technology. With a full IP65 protection class, this model is completely resistant to dust and water, making it safe for use in areas requiring hygiene and safety.
The aluminum-magnesium alloy body structure gives the device both lightness and high durability. Its fanless design allows for silent operation and minimizes maintenance requirements. The device is equipped with an integrated CAT5 KVM extender feature (IDD-LINK4), securely providing video and signal transmission via M12 connectors.
The product, certified with ATEX certification (II 3 G Ex ec IIC T4 Gc / II 3 D Ex tc IIIC T135°C Dc), is suitable for use in hazardous areas (Zone 2/22) where explosive atmospheres are present. With a wide operating temperature range and vibration-resistant structure, it offers an ideal solution for critical sectors such as oil, gas, and chemical industries.
Technical Specifications TECHNICAL SPECIFICATIONS
Display
|
Screen Size
|
12.1" TFT LCD |
|---|---|
|
Resolution
|
1024 x 768 |
|
Screen Format
|
4 | 3 |
|
Brightness
|
350 cd/m² |
|
Contrast Ratio
|
800 | 1 |
|
Viewing Angle
|
150°(H) / 150°(V) |
|
Touch Type
|
Projected Capacitive [P-CAP] |
|
Backlight Life (Min. Hours)
|
50000 |
Connectivity
|
Video Input
|
IDD-LINK4 (KVM) |
|---|---|
|
LAN/Ethernet Port Count
|
LAN/Ethernet Tipi |
|
KVM Connection
|
Entegre CAT5 KVM Extender |
Physical
|
Cooling
|
Fanless |
|---|---|
|
Power Consumption
|
19W |
|
Mounting Type
|
Panel Montaj, VESA 100 |
|
Supply Voltage
|
24V DC |
|
Operating Temperature
|
0°C ~ 55°C |
|
External Dimensions (mm)
|
332.5 x 266.6 x 69 |
|
Cut-out Dimensions (mm)
|
315.7 x 248.8 |
|
Body Material
|
Aluminium-Magnesium Alloy |
|
IP Protection Class
|
Tam IP65 |
System
|
Other Ports
|
1 x M12 8pin IDD-LINK4, 1 x M12 4pin DC Power |
|---|---|
|
Certifications
|
CE, FCC Class A, ATEX (Zone 2/22) |
|
ATEX Class
|
II 3 G Ex ec IIC T4 Gc / II 3 D Ex tc IIIC T135°C Dc |
|
Shock Resistance
|
10G Peak Acceleration (11 ms) |
|
Vibration Resistance
|
Random 5~500Hz, 1Grms |
Supported Operating Systems
Windows 7/8/10/11, Linux
Product at a Glance
IDD22121EX-R2 — 12.1" TFT LCD display ExProof Atex Panel PC.
The device has external dimensions of 332.5 x 266.6 x 69 mm and a Aluminium-Magnesium Alloy body. Power input: 24V DC; mounting: Panel Montaj, VESA 100. It carries IP65 protection and it operates in the 0°C ~ 55°C range. It features A P-CAP touch screen. Supported operating systems: Windows 7/8/10/11, Linux.
