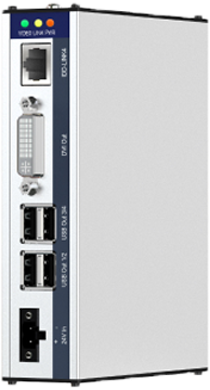

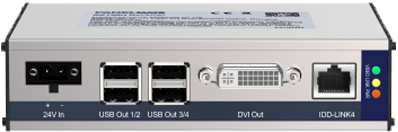

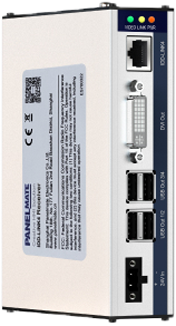

IDD-LINK4-R KVM Extender
IDD-LINK4-R KVM Extender Receiver, made of compact aluminum-magnesium alloy profile, exhibits reliable performance in harsh industrial environments thanks to its sealed, dust-proof design. It features a single-sided interface that can be mounted on a DIN rail and a DC 24V power supply compliant with industrial standards. It offers a compatible solution with Beckhoff CP-LINK4, Siemens IFP V2, and B&R SDL4 systems, working seamlessly with industrial touch monitors and PC6960 Box PC.
The device can transmit DVI and USB 2.0 signals up to 100 meters, making it ideal for control and visualization needs at long distances. It has a transmission speed of 100 bits/s.
The package includes auxiliary cables such as a 1-meter USB cable and a 0.7-meter DVI cable, providing quick and easy installation.
Provides energy efficiency with only 15W power consumption. The IP20 protection class indicates that the device has basic level solid object protection.
Technical Specifications TECHNICAL SPECIFICATIONS
Connectivity
|
USB 2.0
|
Yes (via KVM) |
|---|---|
|
Video Output
|
DVI (via KVM) |
Physical
|
Cooling
|
Fanless |
|---|---|
|
Power Consumption
|
15 W |
|
Mounting Type
|
DIN |
|
Supply Voltage
|
DC 24V |
|
External Dimensions (mm)
|
144 x 105 x 35 |
|
Body Material
|
Compact Aluminium-Magnesium Alloy Profile |
|
IP Protection Class
|
IP20 |
System
|
Fonksiyon
|
KVM Extender Receiver |
|---|---|
|
Transmission Signal
|
DVI + USB 2.0 |
|
Transmission Distance (Max. m)
|
100 |
|
Transmission Rate (bit/s)
|
100 |
|
Uyumluluk
|
Beckhoff CP-LINK4, Siemens IFP V2, B&R SDL4 |
|
Auxiliary Cable
|
1m USB kablosu, 0.7m DVI kablosu |
Product at a Glance
IDD-LINK4-R — KVM Extender.
Video output: DVI (via KVM). Ports: USB 2.0 (Yes (via KVM)). The device has external dimensions of 144 x 105 x 35 mm and a Compact Aluminium-Magnesium Alloy Profile body. Power input: DC 24V; mounting: DIN. It carries IP20 protection.
