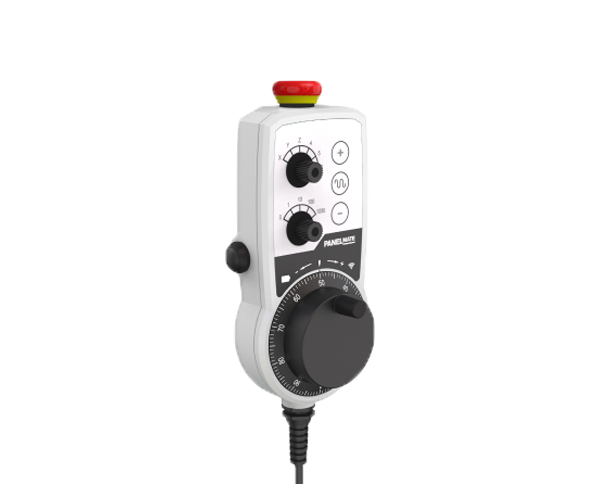

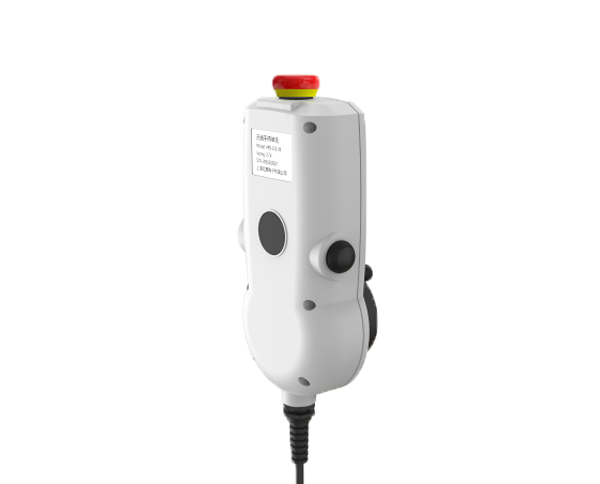

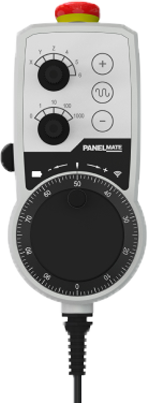

HPS31X Handwheel
PANELMATE Wired Pulse Handheld Control Unit | EtherCAT Communication, 3 Membrane Keys (Inching +, Fast, Inching), 2 Selector Switches (6 Position Axis Selection: X, Y, Z, 4, 5, 6 and 5 Position Multiplier Selection: 0, 1, 10, 100, 1000), 100 Pulse Hand Wheel | Magnetic Wear-Resistant Mechanism, Integrated Activation Button [Left Side | 1 NO], Emergency Stop Button [EN ISO 13850 | 1 NC], OEM Logo Customization, Connection Type: 2.5m Coiled Cable (extendable up to 20m), Ergonomic Plastic Body | Color: PT 5315C, IP Protection Class: IP65, Operating Temperature: -20°C ~ +60°C, Power Input: 5V DC ±5%, Weight: Approximately 0.8 kg, Standard Accessories: HPS Plastic Holder, Female Signal Socket Terminal Box, 4 Pin Spring Connector.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Storage Temperature
|
-40~75°C |
|---|
Connectivity
|
Connectivity
|
2.5 m Network Cable |
|---|
Physical
|
Mounting Type
|
Tutucu (Holder) |
|---|---|
|
Supply Voltage
|
DC 24V |
|
Operating Temperature
|
-20~60°C |
|
External Dimensions (mm)
|
180 x 88 x 56 |
|
Body Material
|
ABS |
|
IP Protection Class
|
IP50 |
System
|
Communication Protocols
|
EtherCAT, Modbus-TCP, ADS and Others |
|---|---|
|
Pulse Cable
|
Var |
|
Acil Durdurma
|
Var |
|
Number of Membrane Switches
|
3 Keys |
|
Manyetik Anahtar
|
2 axis selectors + Pulse |
|
Relative Humidity
|
100% |
|
Key Life (10K Cycles)
|
100 |
Product at a Glance
HPS31X — Handwheel.
The device has external dimensions of 180 x 88 x 56 mm and a ABS body. Power input: DC 24V; mounting: Tutucu (Holder). It carries IP50 protection and it operates in the -20~60°C range.
