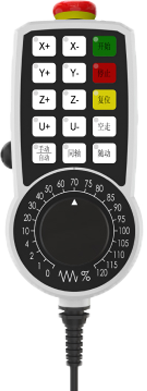

HPS11X Handwheel
PANELMATE Wired Handheld Control Unit | EtherCAT Communication, 15 Membrane Keys (X+, X-, Y+, Y-, Z+, Z-, U+, U-, Start, Stop, Reset, Free move, Manual/Automation, Coaxial, Servo), 100 Pulse Hand Wheel | Magnetic Wear-Resistant Mechanism, Integrated 2-Stage Activation Button [Left Side | 1 NO], Emergency Stop Button [EN ISO 13850 | Dual Channel | 2 NC], RS422A Output, OEM Logo and Color Customization, Connection Type: 2.5m Coiled Cable (extendable up to 20m), Ergonomic Plastic Body | Color: Beige White, IP Protection Class: IP65, Operating Temperature: -20°C ~ +60°C, Power Input: 5V DC ±5%, Weight: Approximately 0.8 kg, Mounting Type: Magnetic or Bracketed, Standard Accessories: HPS Plastic Holder, Female Signal Socket Terminal Box, 4 Pin Spring Connector.
Provides flexible connectivity with a 2.5-meter network cable.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Storage Temperature
|
-40~75°C |
|---|
Connectivity
|
USB 3.0
|
EtherCATbus |
|---|---|
|
Wireless Connectivity
|
Optional (a rechargeable version with a lithium battery is available) |
|
Connectivity
|
2.5m net kablo |
Physical
|
Cooling
|
Passive Cooling |
|---|---|
|
Mounting Type
|
Magnet + Holder |
|
Supply Voltage
|
DC 24V |
|
Operating Temperature
|
-20~60°C |
|
External Dimensions (mm)
|
180 x 88 x 56 |
|
Body Material
|
ABS |
|
IP Protection Class
|
IP50 |
|
Body Colour
|
Gri |
|
Card Box Dimensions (cm)
|
30 x 20 x 8 |
System
|
Other Ports
|
Magnification Switch (21 positions), Membrane Switch (15 keys), Emergency Stop |
|---|---|
|
Communication Protocols
|
EtherCAT, Modbus-TCP, ADS |
|
Relative Humidity
|
100% |
|
Button Life
|
10.000 (10K) kez |
Product at a Glance
HPS11X — Handwheel.
For connectivity it provides Optional (a rechargeable version with a lithium battery is available). Ports: USB 3.0 (EtherCATbus). The device has external dimensions of 180 x 88 x 56 mm and a ABS body. Power input: DC 24V; mounting: Magnet + Holder. It carries IP50 protection and it operates in the -20~60°C range.
