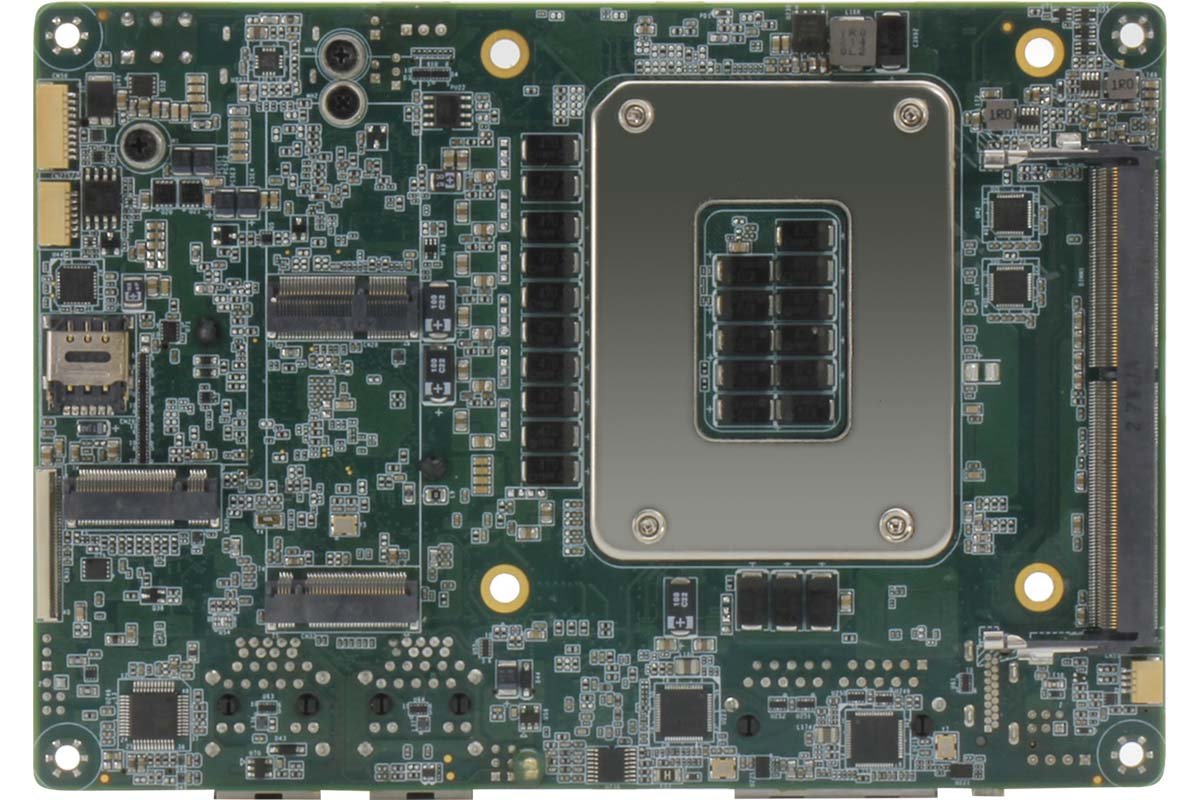

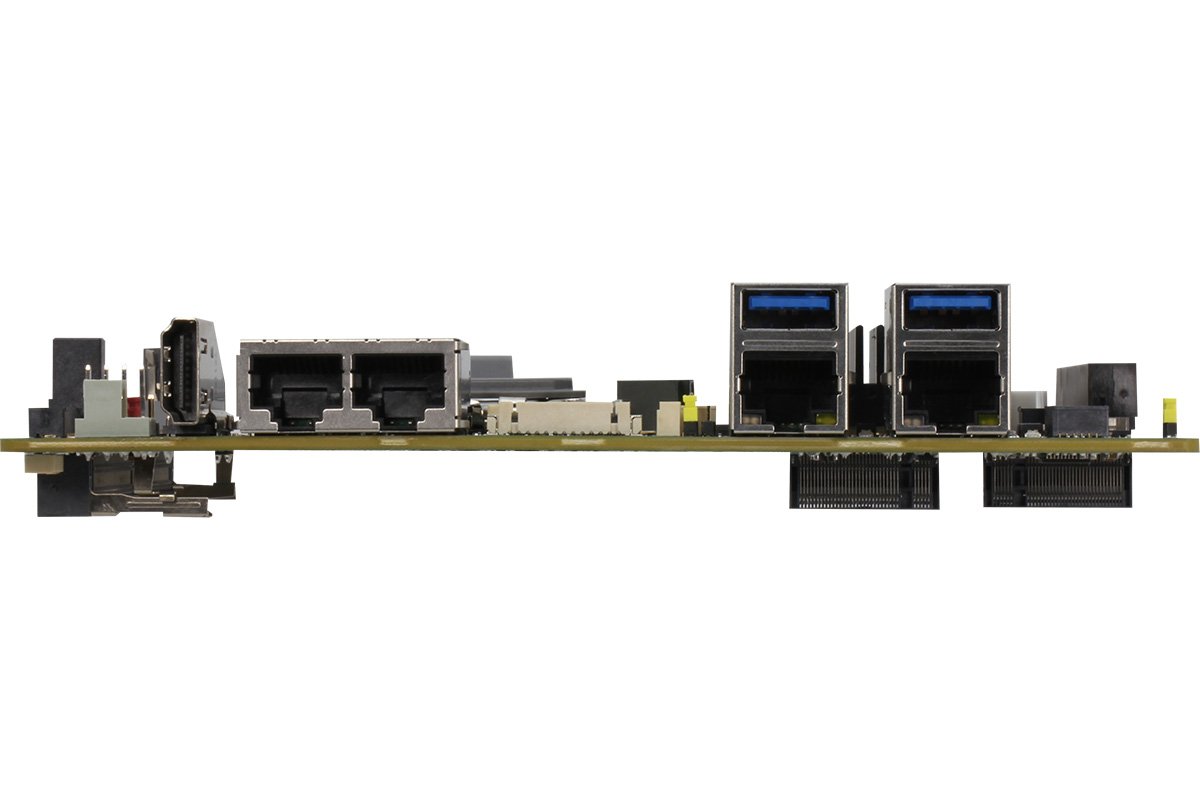

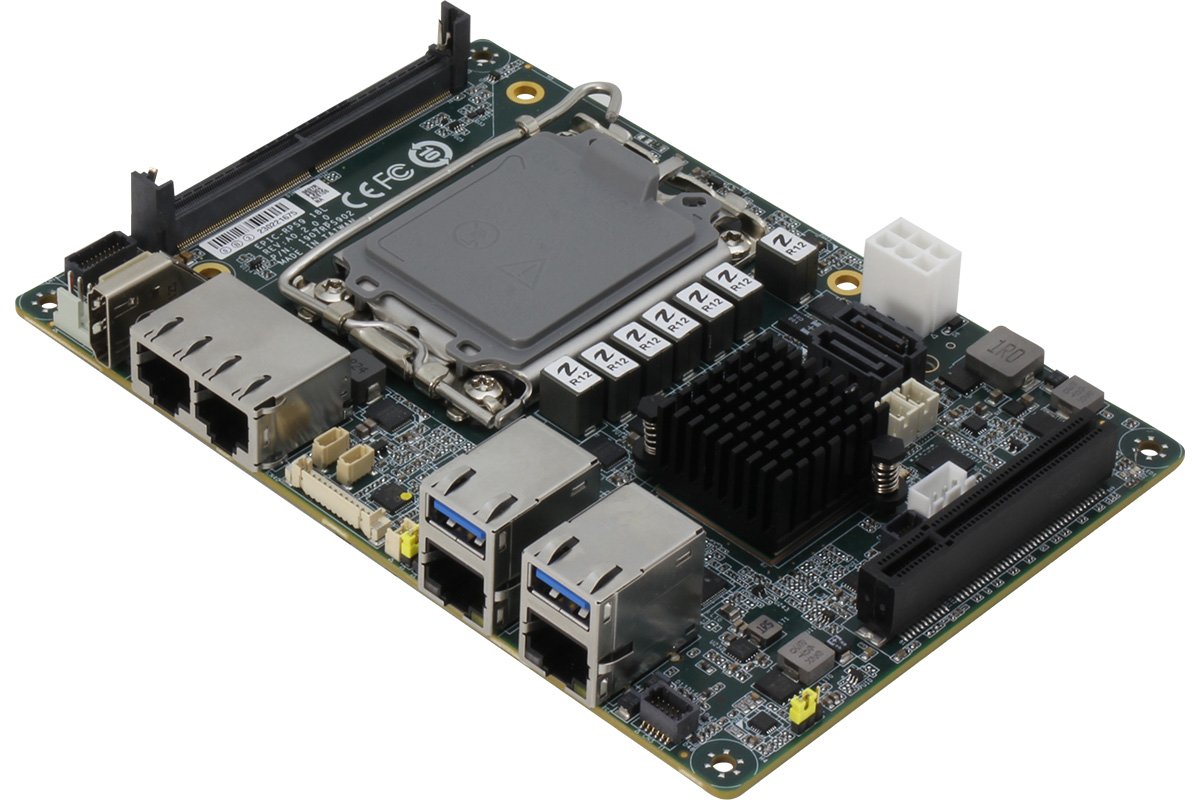

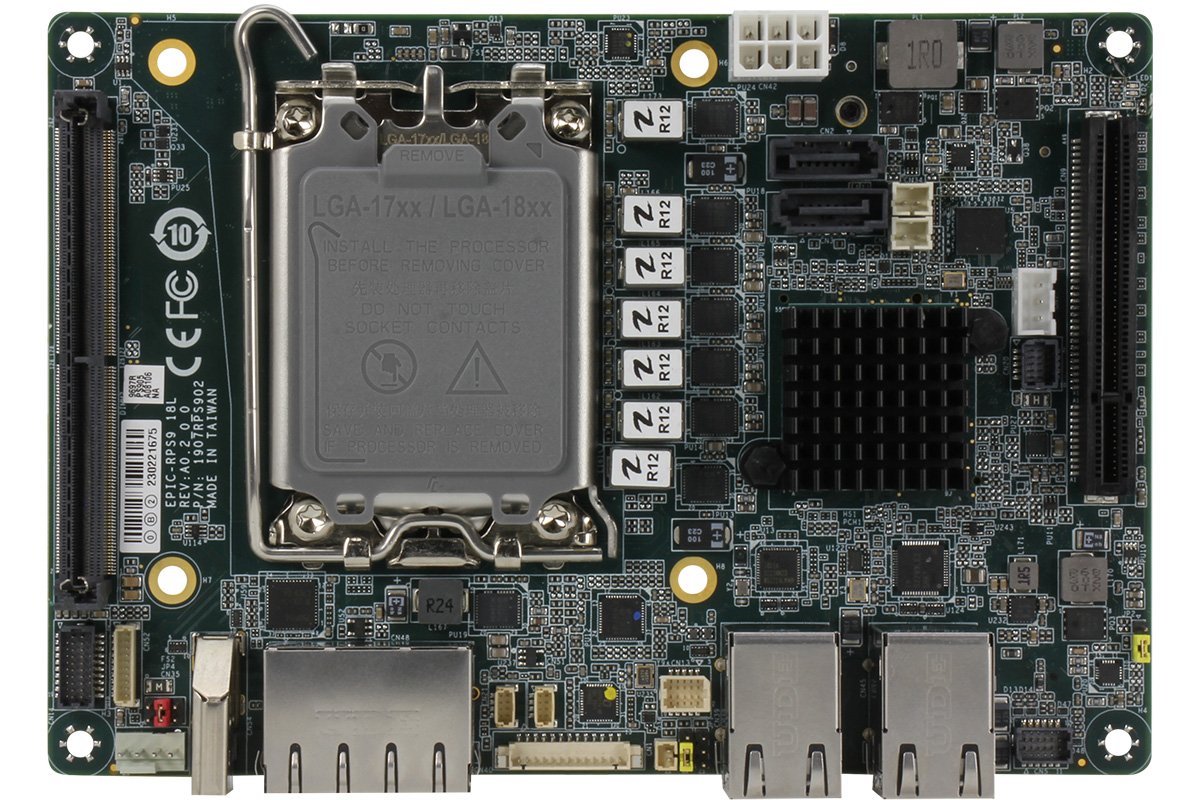

EPIC-BTS9-A11-0002 Embedded Single Board Computers · 12th/13th/14th Gen Intel Core and Series 2 Processors
The AAEON EPIC-BTS9-A11-0002 is a high-performance 4-inch EPIC form factor industrial motherboard equipped with the Intel® Q670E chipset and supporting 12th, 13th and 14th Generation Intel® Core™ and Series 2 processors. It offers up to 64 GB of memory capacity through non-ECC dual-channel DDR5 SODIMM slots. Providing triple independent display support over HDMI, eDP and VGA interfaces, the board delivers advanced network connectivity with a total of four LAN ports: three 2.5 GbE and one GbE. With M.2 slots, a PCIe 4.0 [x8] slot, an FPC connector, rich USB options and dual serial ports, it provides a stable foundation for industrial automation processes.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
12th/13th/14th Gen Intel® Core™ and Series 2 Processors (LGA1700 Socket, Max. 35W/65W) |
|---|---|
|
RAM [System Memory]
|
DDR5 4800 MHz SODIMM x 2, 64 GB'a kadar (Non-ECC) |
|
SSD/HDD/mSATA/M.2
|
SATA 6.0 Gbps x 2 |
Connectivity
|
Video Output
|
HDMI 2.0 x 1, eDP 1.4 x 1, VGA x 1 |
|---|---|
|
LAN/Ethernet Port Count
|
x 4 |
|
USB 3.2
|
USB 3.2 Gen 2 x 1, USB 3.2 Gen 1 x 1 |
|
USB 2.0
|
x 2 (Pin Header) |
|
RS-232/422/485 Serial Port
|
x 2 |
|
Expansion Slot
|
M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1, PCIe 4.0 [x8] x 1, FPC x 1 |
|
Digital I/O
|
GPIO 8-bit |
Physical
|
Supply Voltage
|
+12V DC |
|---|---|
|
Operating Temperature
|
0°C ~ 60°C |
|
External Dimensions (mm)
|
115 mm x 165 mm (4.53" x 6.50") |
System
|
Yonga Seti
|
Intel® Q670E |
|---|
Supported Operating Systems
Windows® 10/11 (64-bit), Ubuntu 24.04.2
Product at a Glance
EPIC-BTS9-A11-0002 — Embedded Single Board Computers.
The standard configuration ships with 12th/13th/14th Gen Intel Core and Series 2 Processors processor, 64 GB RAM and SATA 6.0 Gbps x 2 storage. Video output: HDMI 2.0 x 1, eDP 1.4 x 1, VGA x 1. For connectivity it provides 4 Ethernet ports. Ports: USB 3.2 (USB 3.2 Gen 2 x 1, USB 3.2 Gen 1 x 1), 2 x USB 2.0; 2 x serial port. The device has external dimensions of 115 mm x 165 mm (4.53" x 6.50") mm. Power input: +12V DC. It operates in the 0°C ~ 60°C range. Supported operating systems: Windows 10/11 (64-bit), Ubuntu 24.04.2.
