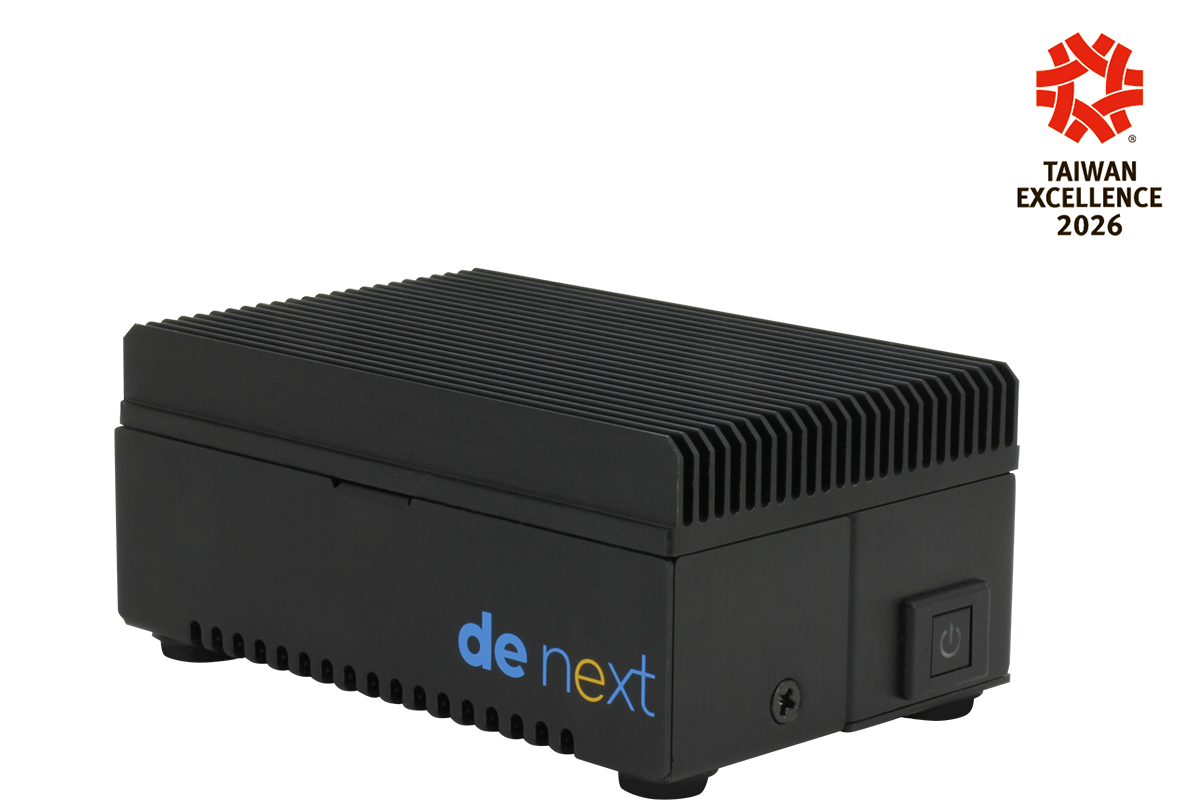

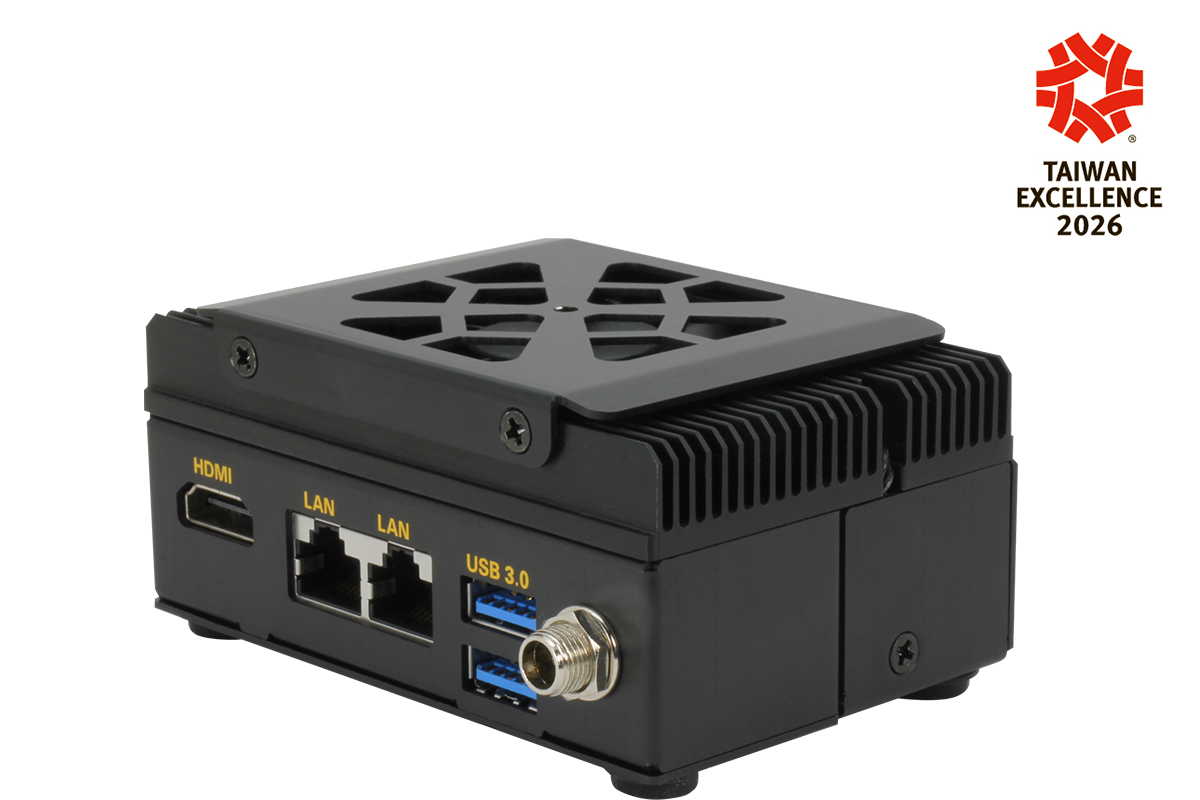

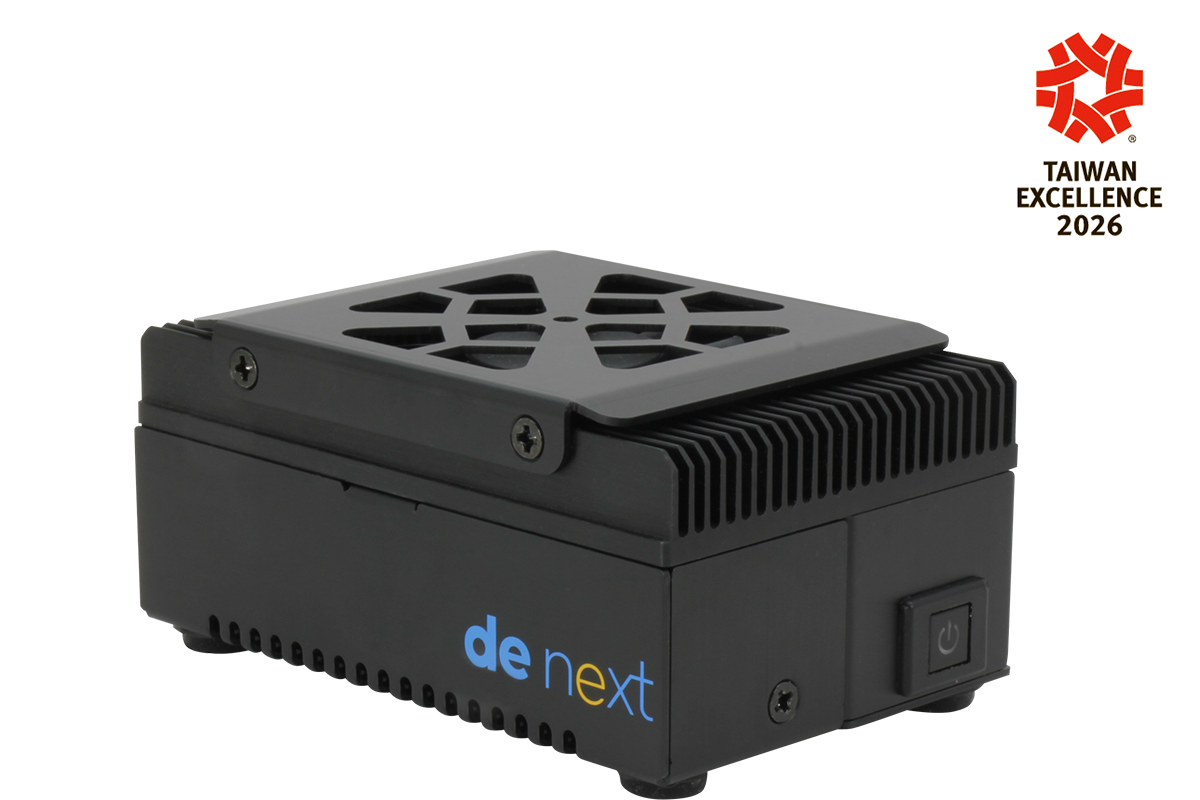

DENEXT-RAP8-EBX-A10-P001 Industrial Box PC · Intel Core i7-1365UE
The AAEON de next-RAP8-EZBOX is an ultra-compact system based on the 13th Generation Intel Core i7 processor architecture and equipped with LPDDR5x memory technology. With dual Ethernet ports, high-speed USB interfaces and hardware-based fTPM security, it delivers top-tier performance in industrial environments and edge computing projects.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel® Core™ i7-1365UE |
|---|---|
|
Processor Family
|
Intel® Core™ i7 |
|
RAM [System Memory]
|
Onboard LPDDR5x 16GB |
Connectivity
|
Video Output
|
HDMI 1.4b x 1 |
|---|---|
|
LAN/Ethernet Port Count
|
2.5 GbE x 1, GbE x 1 |
|
USB 3.2
|
x 2 (Gen 2 Type A) |
|
Expansion Slot
|
M.2 2280 M key (PCIe[x2]) x 1 |
Physical
|
Supply Voltage
|
+12V |
|---|---|
|
Cooling
|
Passive Cooling (Heatsink) |
|
Operating Temperature
|
-5°C ~ 45°C |
|
External Dimensions (mm)
|
95.5 x 69.5 x 42.5 |
System
|
AI Accelerator / GPU
|
Intel® Iris® Xe Graphic Engine |
|---|
Supported Operating Systems
Windows 10 (64-bit), Ubuntu 22.04.3
Product at a Glance
DENEXT-RAP8-EBX-A10-P001 — Industrial Box PC.
The standard configuration ships with Intel Core i7-1365UE processor and 16GB RAM. Video output: HDMI 1.4b x 1. For connectivity it provides 2 Ethernet ports. Ports: 2 x USB 3.2. The device has external dimensions of 95.5 x 69.5 x 42.5 mm. Power input: +12V. It operates in the -5°C ~ 45°C range. Supported operating systems: Windows 10 (64-bit), Ubuntu 22.04.3.
