COM-TWLC6-B10-0002 Industrial Motherboard · Intel Processor N150

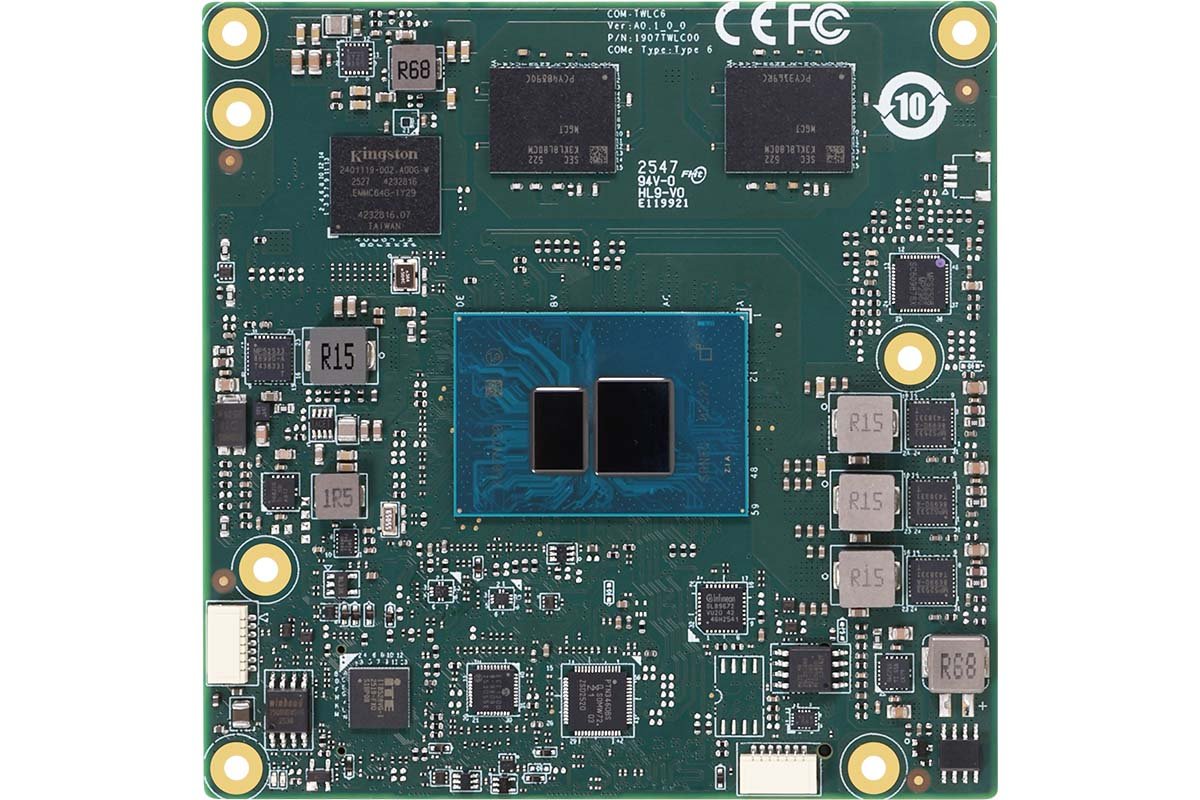

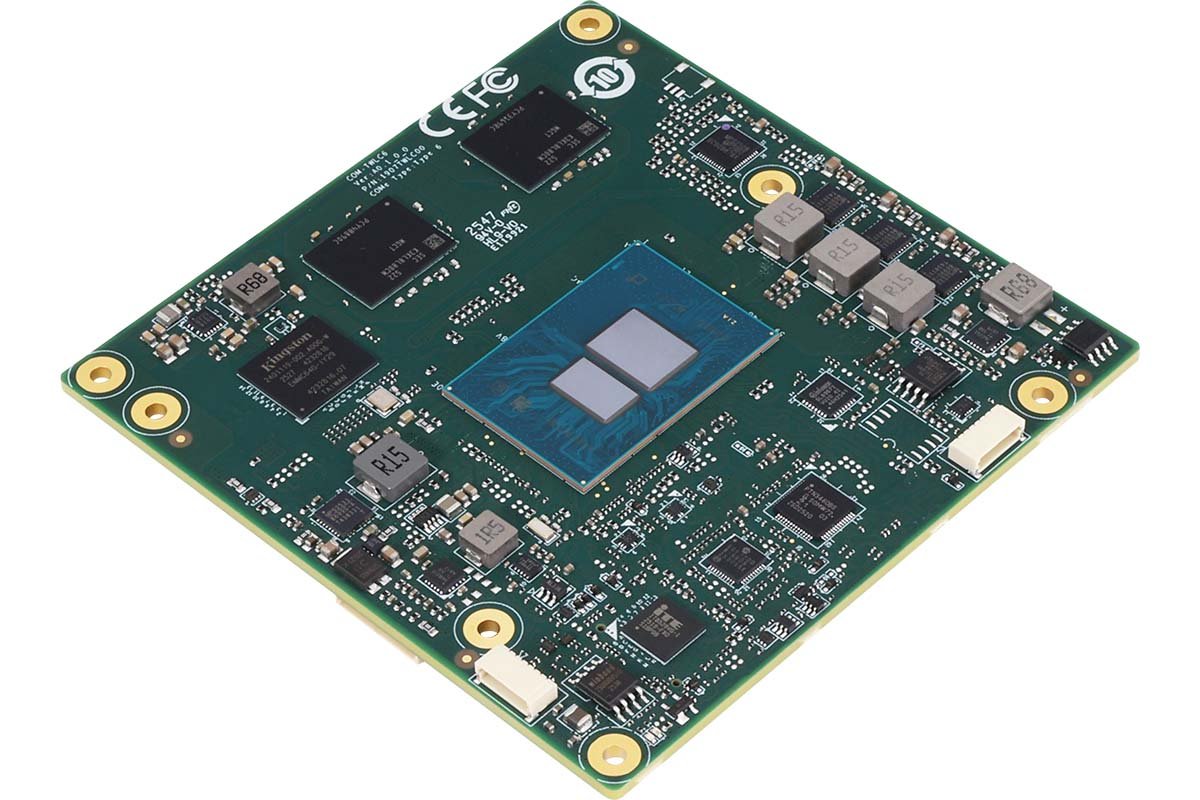

The COM-TWLC6 Rev.B is an industrial module in COM Express Type 6 Compact dimensions, equipped with an Intel Processor N150. With 8 GB of onboard LPDDR5x memory, 64 GB eMMC storage, 2.5 GbE LAN and rich I/O connectivity, it delivers reliable embedded system applications.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel Processor N150 |
|---|---|
|
RAM [System Memory]
|
8GB Onboard LPDDR5x |
|
SSD/HDD/mSATA/M.2
|
64GB eMMC |
Connectivity
|
LAN/Ethernet Port Count
|
Intel Ethernet Controller I226-V x 1 |
|---|---|
|
Video Output
|
LVDS/eDP x 1, DP x 2 |
|
USB 2.0
|
x 8 |
|
USB 3.2
|
Gen 2 x 2 |
|
RS-232 Serial Port
|
2-Wire UART x 2 (Tx/Rx) |
|
Expansion Slot
|
PCIe [x2] x 1 + PCIE [x2] x 1 + PCIE [x1] x 2 |
Physical
|
Supply Voltage
|
12V |
|---|---|
|
Operating Temperature
|
-20°C ~ 70°C |
|
External Dimensions (mm)
|
95 x 95 |
System
|
Form Factor
|
COM Express Type 6, Compact Size |
|---|
Product at a Glance
COM-TWLC6-B10-0002 — Industrial Motherboard.
The standard configuration ships with Intel Processor N150 processor, 8GB RAM and 64GB eMMC storage. Video output: LVDS/eDP x 1, DP x 2. Ports: 8 x USB 2.0, USB 3.2 (Gen 2 x 2); serial port: 2-Wire UART x 2 (Tx/Rx). The device has external dimensions of 95 x 95 mm. Power input: 12V. It operates in the -20°C ~ 70°C range.
