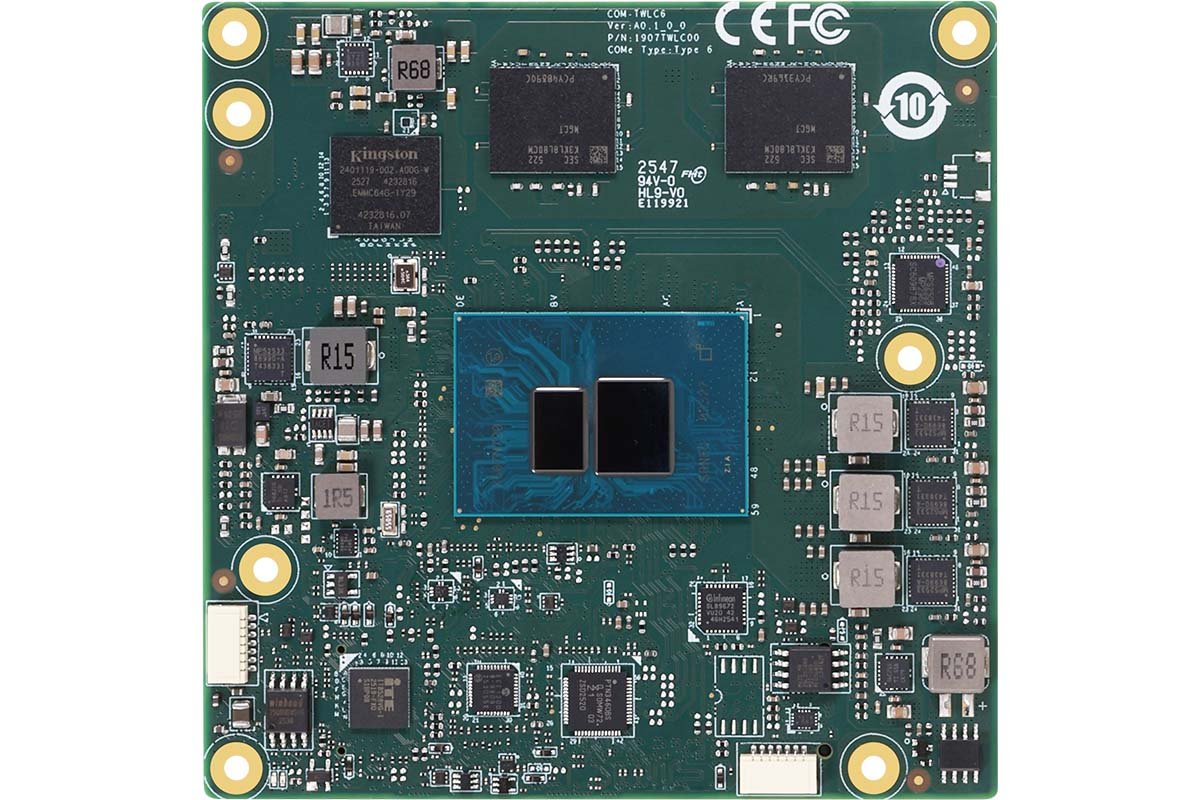

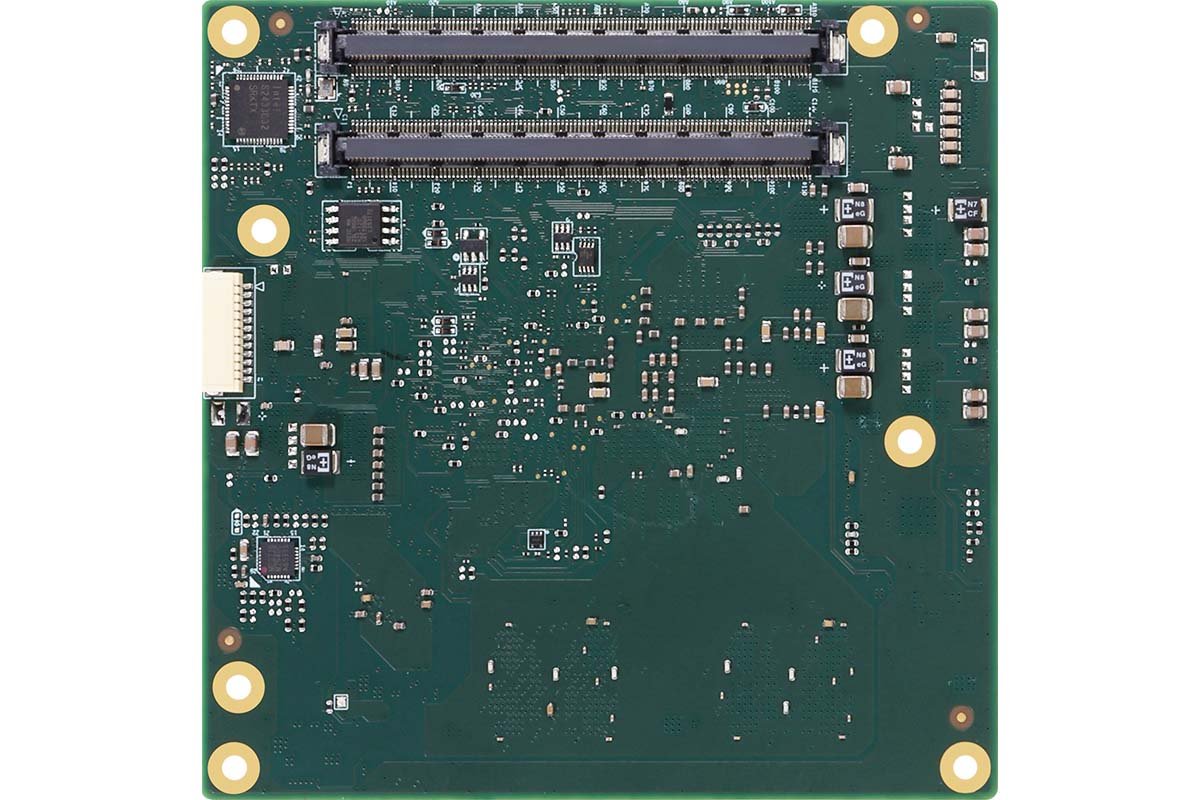

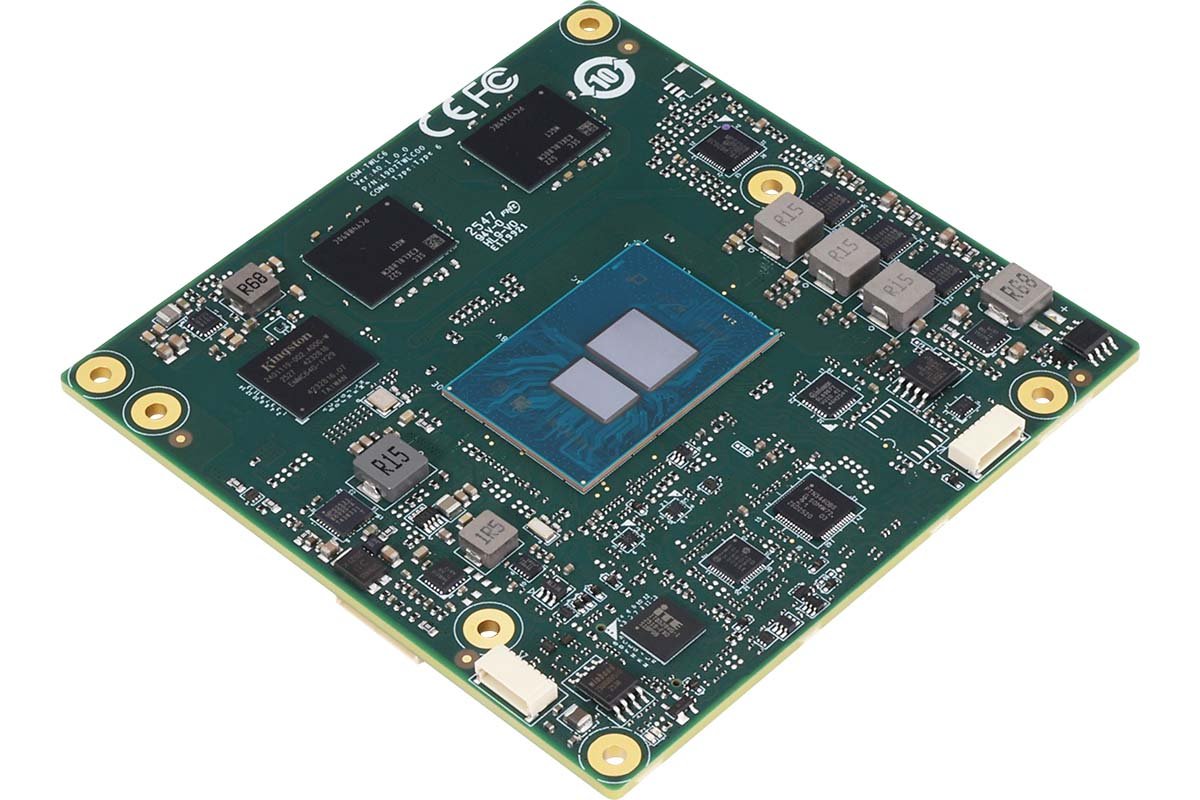

COM-ADNC6-B10-0002 Industrial Motherboard · Intel Processor N97
The COM-ADNC6 Rev.B is an industrial motherboard module in the COM Express Type 6 Compact form factor, equipped with an Intel Processor N97. With 8 GB of onboard LPDDR5x memory, an Intel Ethernet Controller I226, a rich USB interface and multiple PCIe expansion options, it delivers high performance and flexibility for embedded systems and industrial applications.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor (CPU)
|
Intel Processor N97 |
|---|---|
|
RAM [System Memory]
|
8GB Onboard LPDDR5x |
|
SSD/HDD/mSATA/M.2
|
64GB eMMC |
Connectivity
|
LAN/Ethernet Port Count
|
Intel Ethernet Controller I226-IT x 1 |
|---|---|
|
Video Output
|
LVDS x 1, DDI x 2 |
|
USB
|
USB 2.0 x 8, USB 3.2 Gen 2 x 2 |
|
RS-232 Serial Port
|
2-Wire UART x 2 (Tx/Rx) |
|
Expansion Slot
|
PCIe [x2] x 1 + PCIE [x2] x 1 + PCIE [x1] x 2 |
Physical
|
Supply Voltage
|
12V |
|---|---|
|
Operating Temperature
|
-20°C ~ 70°C |
|
External Dimensions (mm)
|
95mm x 95mm (3.74" x 3.74") |
Supported Operating Systems
Windows 10/11 (64-bit), Linux Ubuntu 24.04/Kernel 6.11
Product at a Glance
COM-ADNC6-B10-0002 — Industrial Motherboard.
The standard configuration ships with Intel Processor N97 processor, 8GB RAM and 64GB eMMC storage. Video output: LVDS x 1, DDI x 2. Ports: USB (USB 2.0 x 8, USB 3.2 Gen 2 x 2); serial port: 2-Wire UART x 2 (Tx/Rx). The device has external dimensions of 95mm x 95mm (3.74" x 3.74") mm. Power input: 12V. It operates in the -20°C ~ 70°C range. Supported operating systems: Windows 10/11 (64-bit), Linux Ubuntu.
