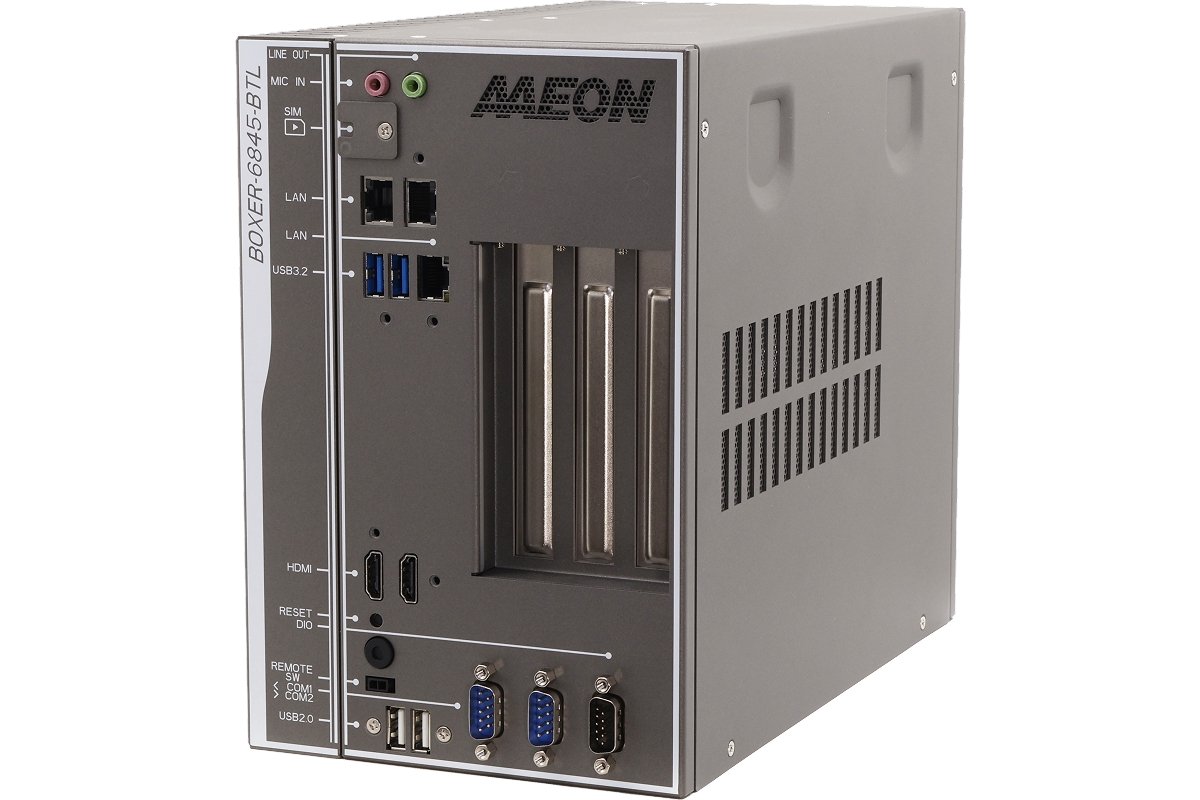

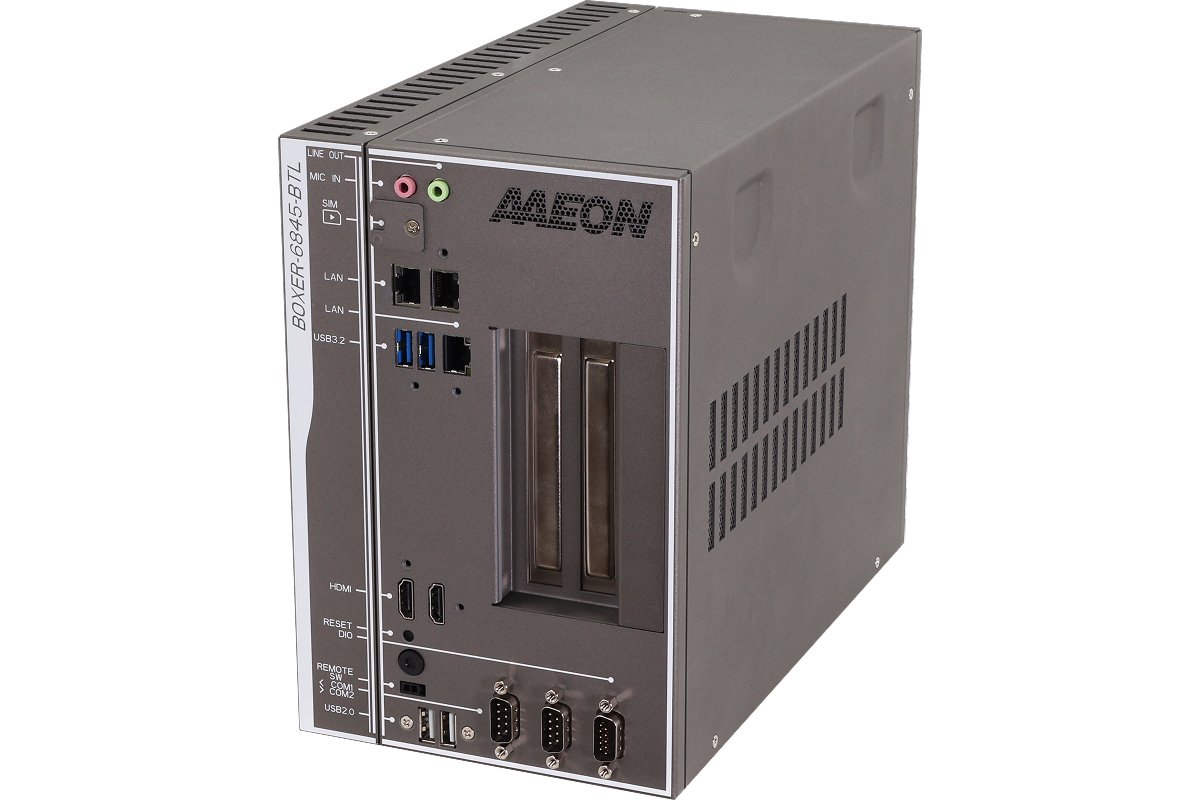

BOXER-6845-BTL-A2-1010 Industrial Box PC · Intel Core Series 2

Built on the Intel® Core™ Series 2 (Bartlett Lake) processor architecture and supporting up to 65 W TDP, the BOXER-6845-BTL delivers high-performance data processing capacity for demanding industrial automation scenarios.

Its DDR5 SODIMM slots allow system memory to be configured up to 64 GB, and ECC support minimises runtime errors to provide superior system reliability in mission-critical applications.

The expandable storage architecture offers rich storage options with dual 2.5-inch SATA drive bays and dual M.2 2280 M-Key slots, while hardware-assisted RAID 0/1 configurations eliminate the risk of data loss.

Expansion slots with advanced PCIe x4 and PCI interfaces make it easy to integrate various hardware accelerators or legacy industrial data acquisition cards into the system.

Thanks to its compact chassis design (150 mm x 270 mm x 225 mm) and integrated wall-mount kit, it enables a practical, space-saving installation in control cabinets and production line enclosures where space is limited.

A wide 12 V-24 V DC power input range and built-in protection circuit technology safeguard the components against the voltage fluctuations frequently encountered in industrial facilities.

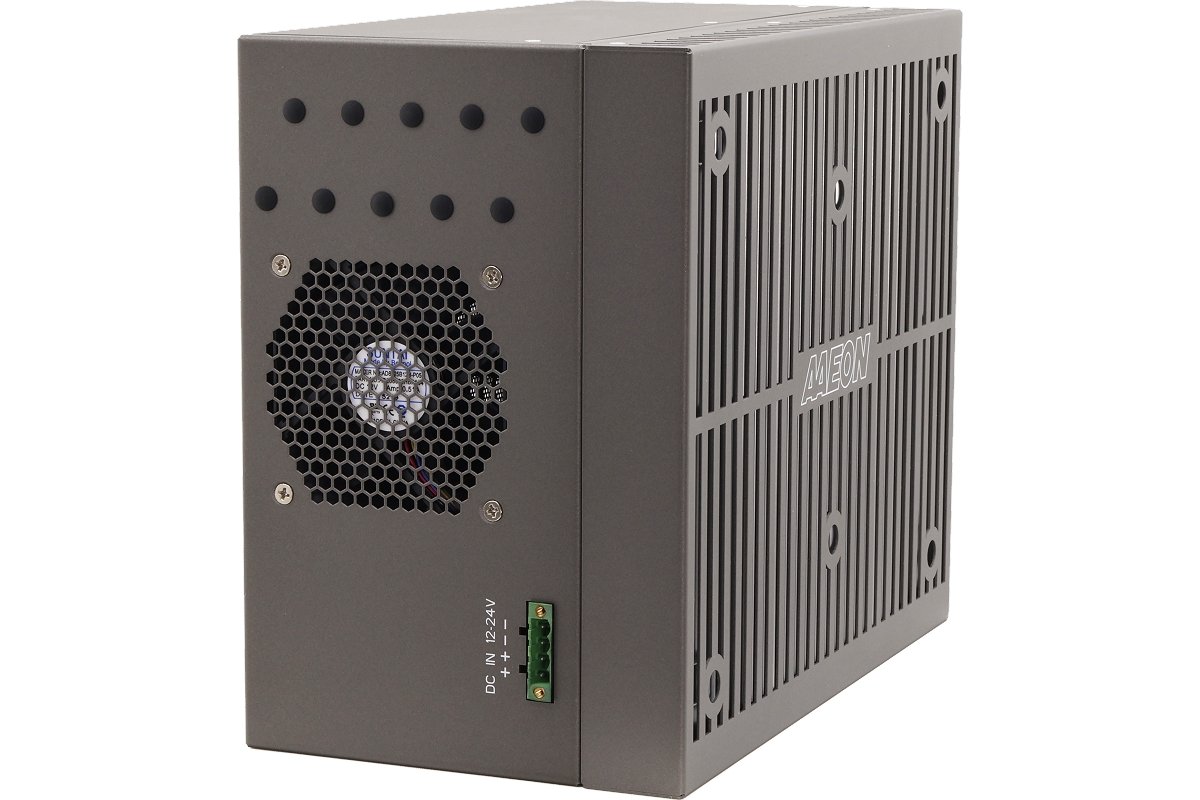

With a thermal design supported by an active cooling fan, it continues to operate stably without compromising system performance across the variable industrial climate conditions between -20°C and 45°C.

A TPM 2.0 chip integrated on the motherboard meets hardware-based security requirements, protecting data encryption and authorisation processes to the highest level.
