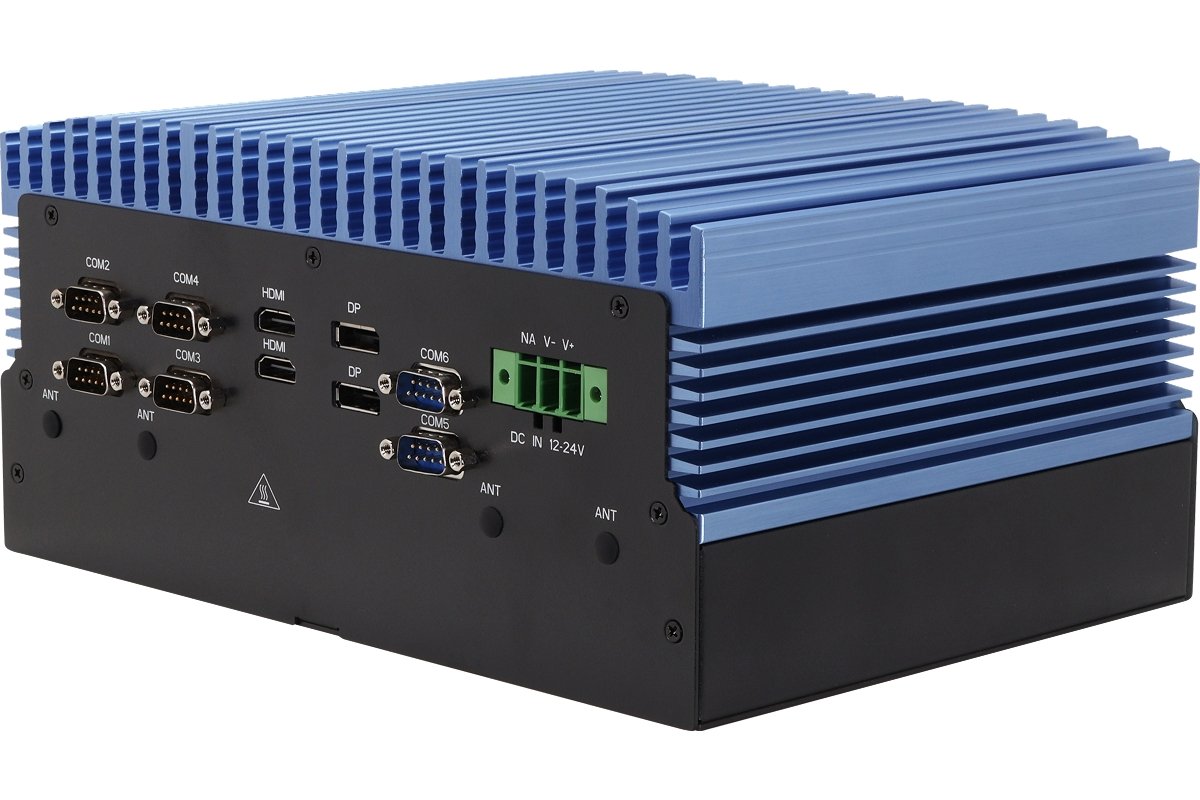

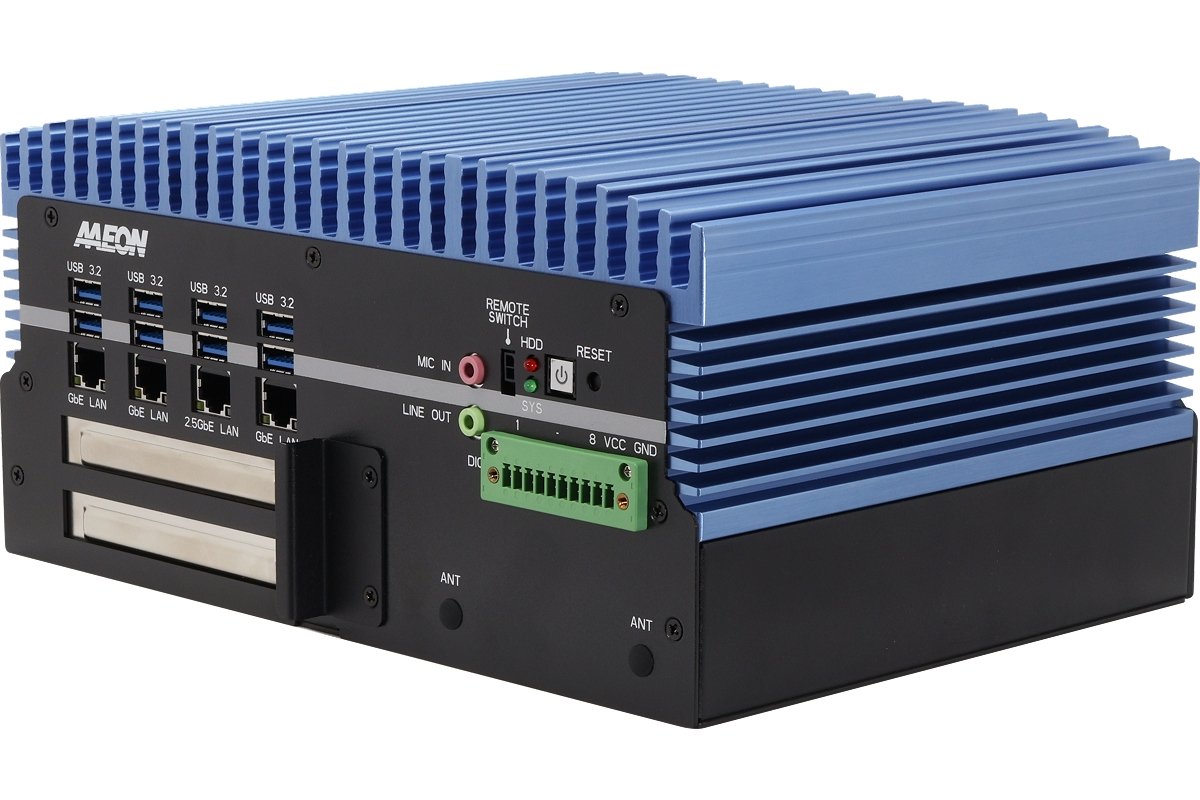

BOXER-6839-RPL-A1-1010 Industrial Box PC · 12., 13., 14. Nesil Intel Core / Celeron (LGA 1700)
The BOXER-6839-RPL is a fanless industrial embedded computer supporting 12th, 13th and 14th Generation Intel Core LGA 1700 socket processors. With PCIe and PCI expansion slot options, quad independent display support, rich I/O connectivity and a wide -20°C to 50°C operating temperature range, it is ideal for industrial automation and machine control applications in demanding working conditions.
Technical Specifications TECHNICAL SPECIFICATIONS
Performance
|
Processor Family
|
12., 13., 14. Nesil Intel® Core™ / Celeron® (LGA 1700) |
|---|---|
|
RAM [System Memory]
|
DDR5 4800, SODIMM x 2, 64GB'a kadar |
|
SSD/HDD/mSATA/M.2
|
2.5" SATA Drive Bay x 2, M.2 2280 M-Key x 1 (NVMe) |
Connectivity
|
Video Output
|
HDMI x 2, DP x 2 |
|---|---|
|
LAN/Ethernet Port Count
|
x 4 |
|
USB 3.2
|
x 8 |
|
RS-232/422/485 Serial Port
|
x 6 |
|
Digital I/O
|
8-bit DIO |
|
Expansion Slot
|
M.2 2230 E-Key x 1, M.2 3052 B-Key x 1, PCIe [x4] x 1, PCIe [x1] x 1 |
Physical
|
Supply Voltage
|
12V ~ 24V DC |
|---|---|
|
Operating Temperature
|
-20°C ~ 50°C |
|
External Dimensions (mm)
|
264 x 186 x 122 mm |
|
Weight (kg)
|
5.6 kg |
|
Mounting Type
|
Wallmount |
System
|
Yonga Seti
|
Intel® Q670E |
|---|
Supported Operating Systems
Windows 10/11 IoT LTSC, Ubuntu 24.04+
Product at a Glance
BOXER-6839-RPL-A1-1010 — Industrial Box PC.
The standard configuration ships with 12., 13., 14. Nesil Intel Core / Celeron (LGA 1700) processor, 64GB RAM and 2.5" SATA Drive Bay x 2, M.2 2280 M-Key x 1 storage. Video output: HDMI x 2, DP x 2. For connectivity it provides 4 Ethernet ports. Ports: 8 x USB 3.2; 6 x serial port. The device has external dimensions of 264 x 186 x 122 mm mm and a weight of 5.6 kg. Power input: 12V ~ 24V DC; mounting: Wallmount. It operates in the -20°C ~ 50°C range. Supported operating systems: Windows 10/11 IoT LTSC, Ubuntu 24.04.
