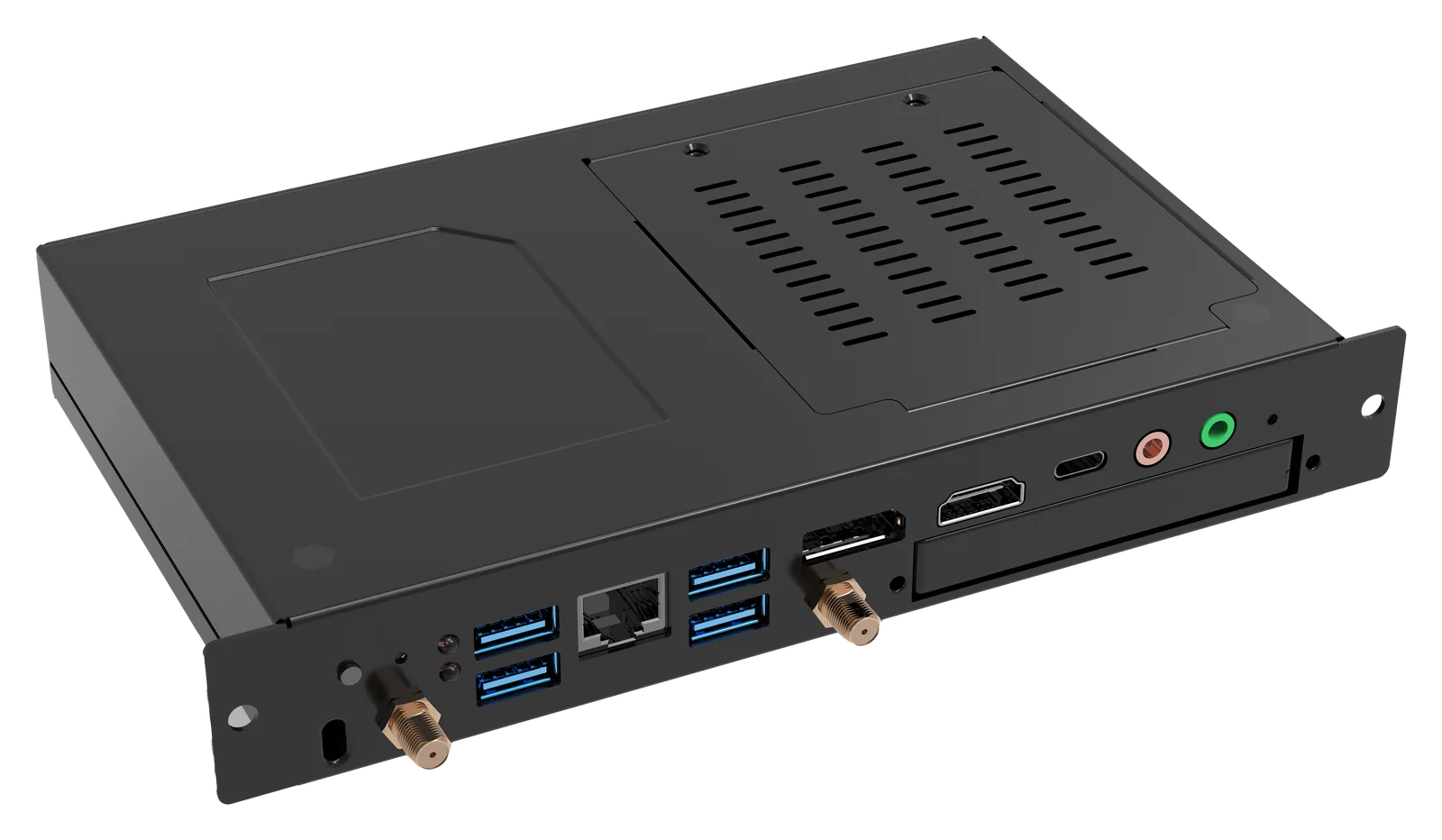

IPC4Mini-B7A-i510-13420H Mini PC · Intel Core i5-13420H 8 Core 2.10 / 4.60 GHz

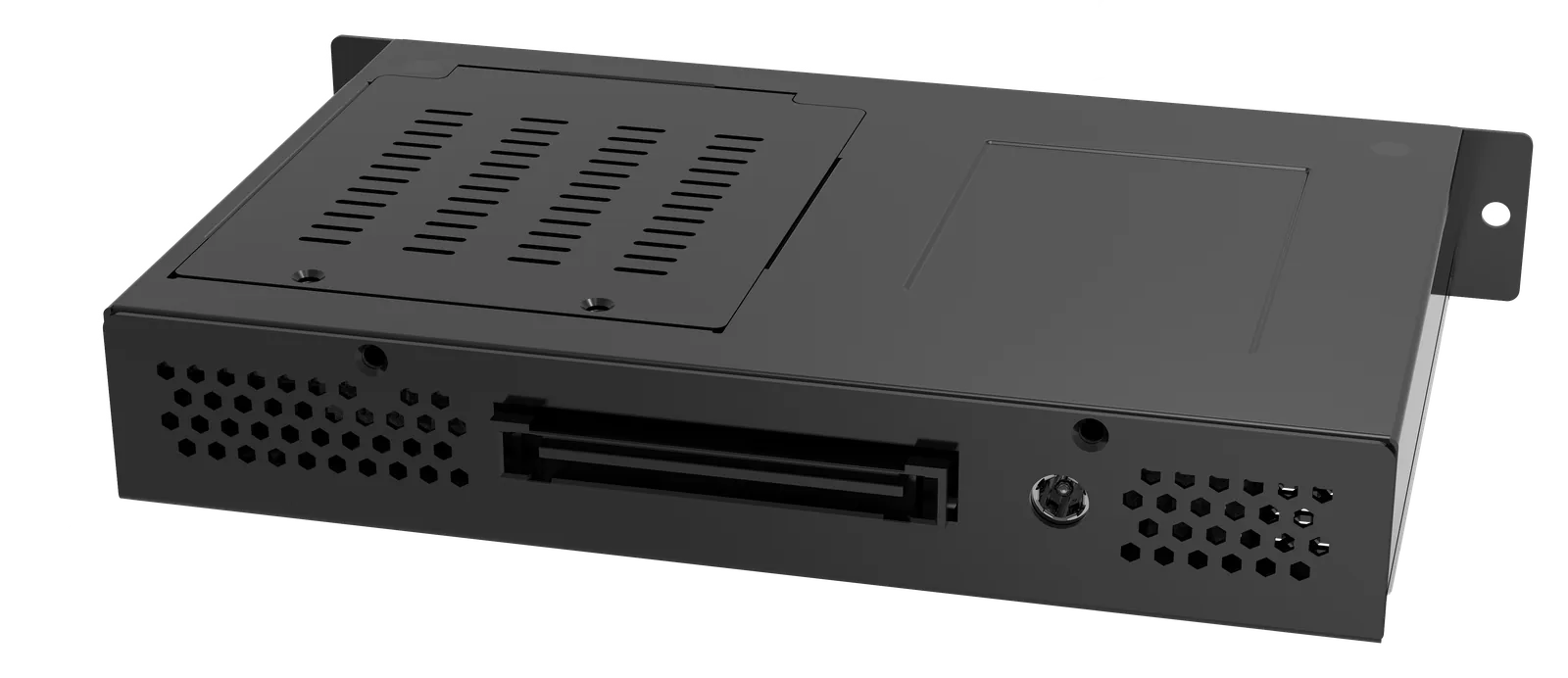

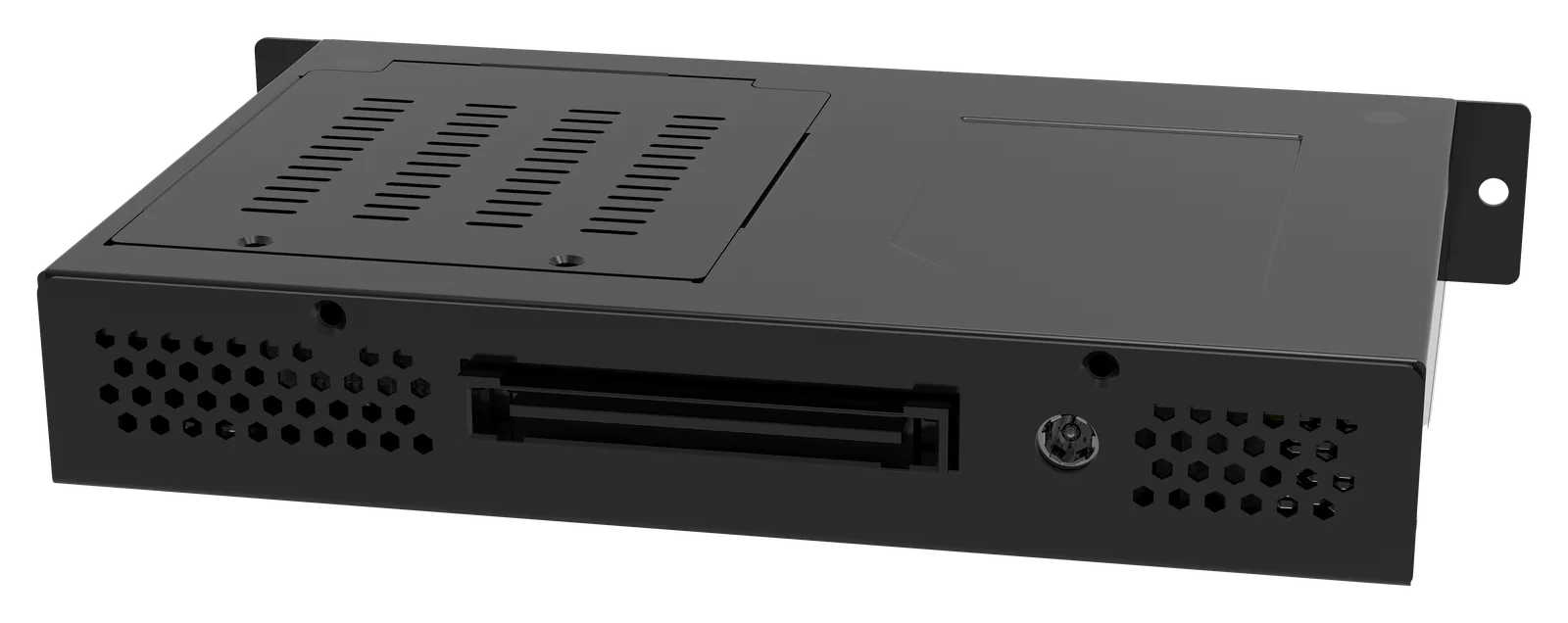

The IPC4Mini-B7A-i510-13420H is an industrial mini computer that plugs directly into the OPS slot of professional displays. The module body measures 179.8 x 119.8 x 30 mm, and with the mounting brackets the total width is 201.6 mm; these dimensions fit the standard OPS slot. Thanks to its metal body and the standard OPS connector at the rear, it seats into the display in a single move, removing the clutter of external cables, adapters and mounting hardware. In normal use the device draws power directly from the OPS slot; when it is to be operated independently of the display, the supplied 19 V / 3.42 A adapter is connected to the DC input on the front panel. Thanks to the fanless cooling architecture it contains no moving parts, runs silently and requires no fan maintenance.

The 13th Generation Raptor Lake Intel Core i5-13420H processor, with 8 cores and 12 threads, boosts up to 4.60 GHz; with 12 MB of Intel Smart Cache it delivers high performance in intensive image processing and multi-screen playback scenarios.

The standard configuration comes with 16 GB of DDR4 memory and a 512 GB M.2 SATA drive; two SO-DIMM slots can be upgraded to 64 GB and the M.2 2280 slot to 1 TB. There is also an additional bay for a 2.5-inch SSD.

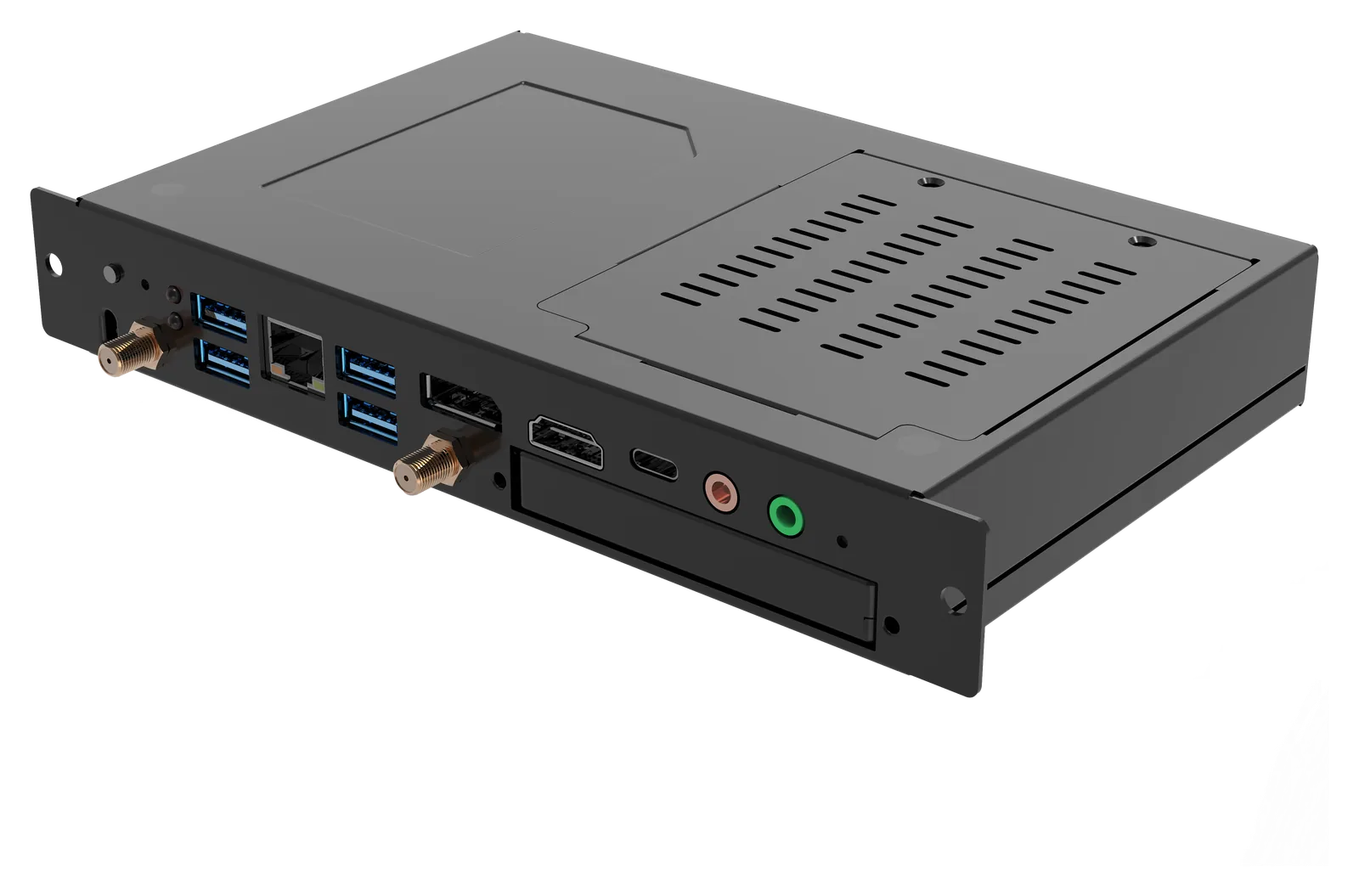

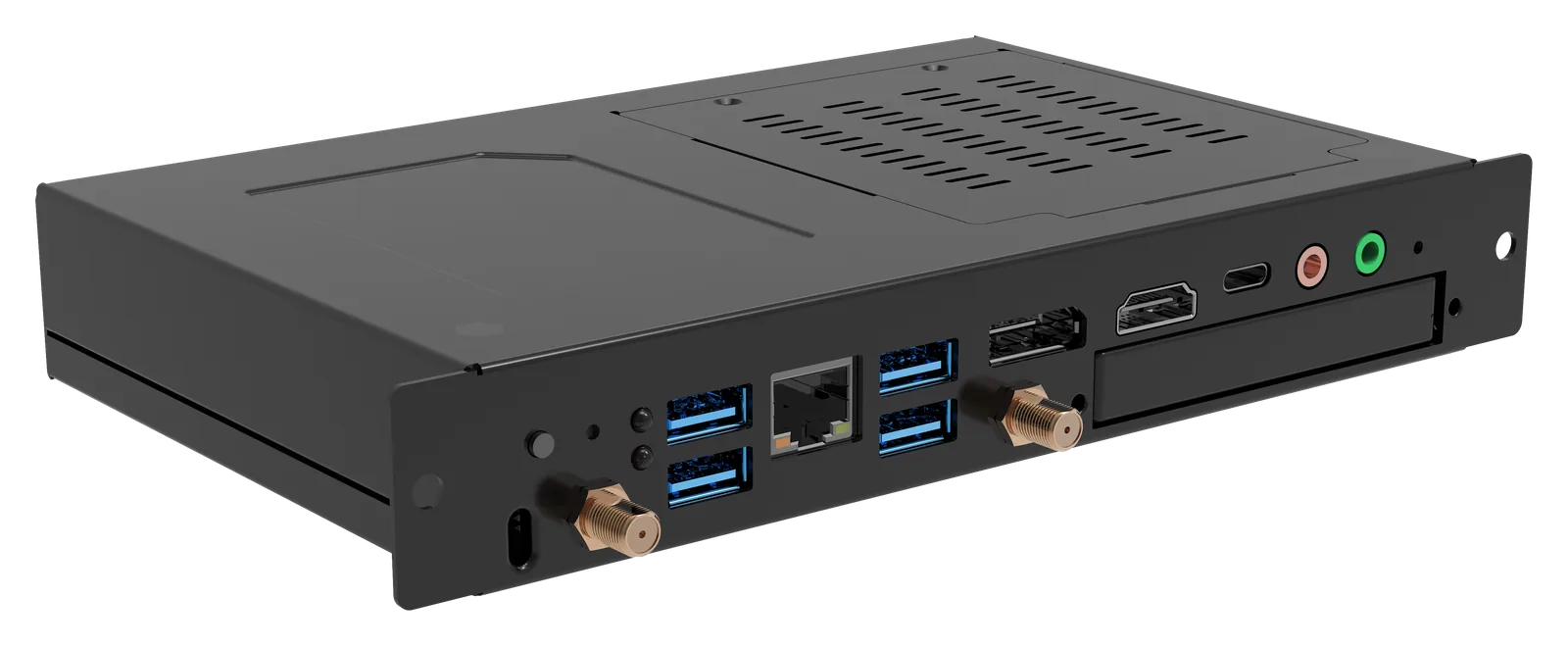

It provides a rich connectivity set with four USB 3.0 ports, one Type-C, Gigabit Ethernet, HDMI and DisplayPort outputs; together with the second HDMI line coming through OPS, three displays can be driven simultaneously. A TPM 2.0 security module, a UART serial port, a real-time clock and auto power-on when mains power returns make the device ready for unattended digital signage and information systems.
