IPC4Mini-B5N-N10-100 Mini PC · Intel N100 4 Core 0.70 / 3.40 GHz

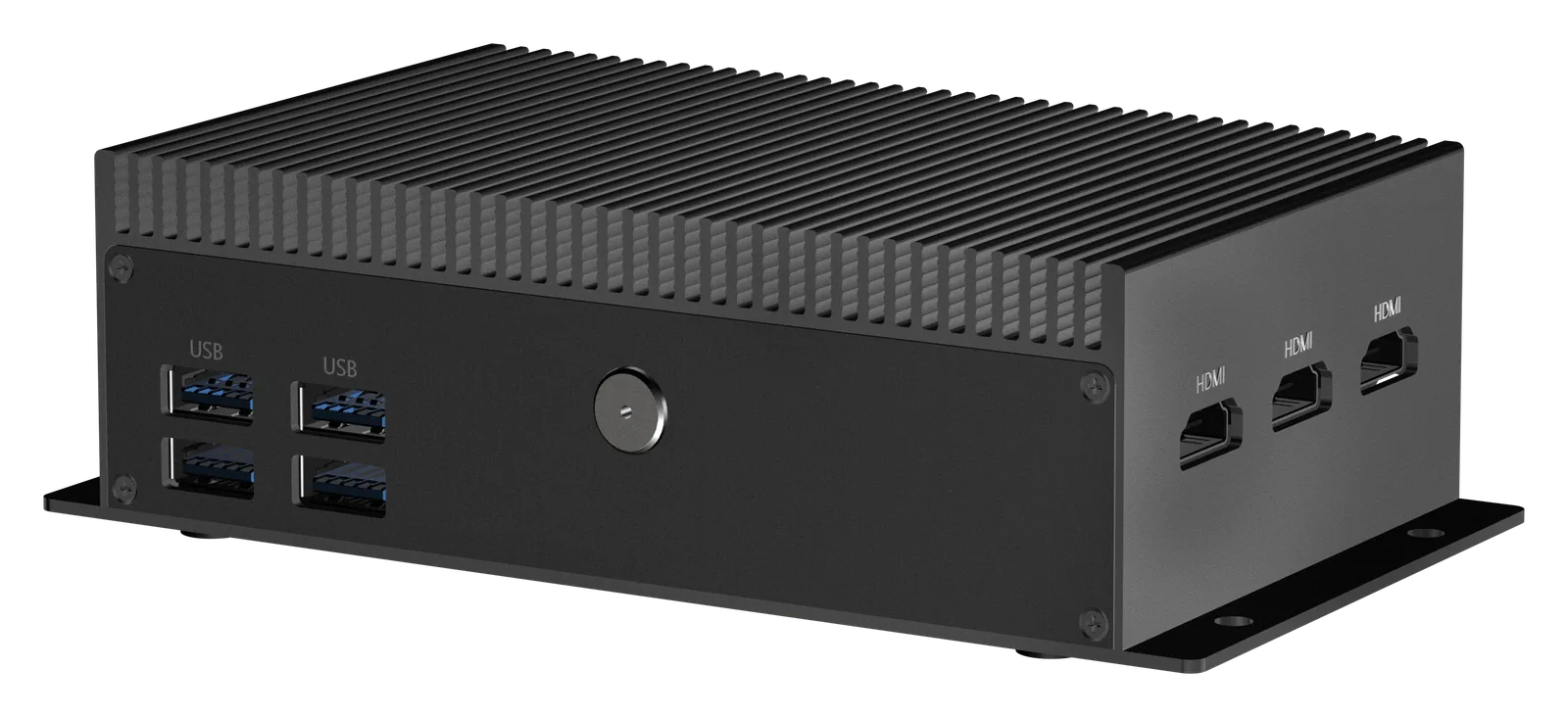

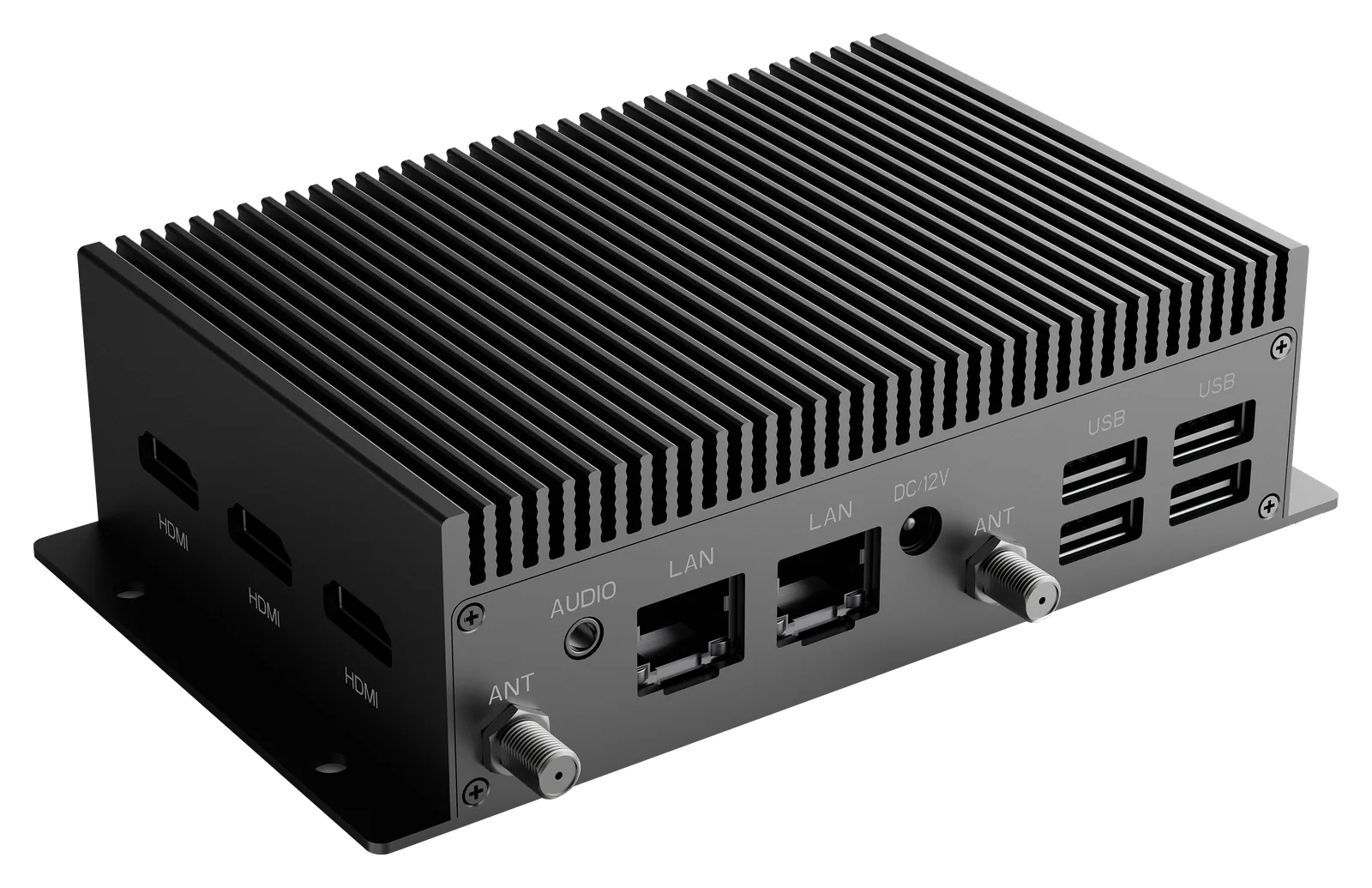

The IPC4Mini-B5N-N10-100 is a completely fanless industrial mini computer able to drive three displays simultaneously, with a finned aluminium body measuring 160 x 87 x 43.5 mm. Thanks to a heatsink design that spreads heat across the whole body, the need for fans, filters and periodic maintenance disappears.
The Intel N100 processor, built on the 4-core Alder Lake-N architecture, boosts up to 3.40 GHz and does so on a power budget of only 6 W, making it an economical solution for sites that run 24/7.
The standard configuration comes with 8 GB of LPDDR5 memory and a 128 GB M.2 2242 SATA drive; memory can be configured up to 16 GB and storage up to 1 TB. Because its three HDMI 2.0 outputs can drive three separate displays at 4K 60 Hz, it provides a single-device solution for video walls, multi-kiosk installations and operator monitoring stations.
Eight USB 3.0 ports allow many peripherals such as barcode readers, scales, cameras and control units to be connected at the same time. Two Gigabit Ethernet ports separate the networks, while built-in Wi-Fi, Bluetooth and a TPM 2.0 security module complete compatibility with corporate infrastructure. With VESA mounting support it can be installed hidden behind a display or inside a cabinet.
Technical Specifications TECHNICAL SPECIFICATIONS
Display
|
Multi-Display
|
Simultaneous triple display via HDMI x 3 |
|---|
Performance
|
Processor (CPU)
|
Intel® N100 4 Core 0.70 / 3.40 GHz | BM : 5505 |
|---|---|
|
Processor Family
|
Intel® Processor N® |
|
RAM [System Memory]
|
Standard 8 GB LPDDR5 [Max 16 GB] (Onboard) |
|
SSD/HDD/mSATA/M.2
|
Standard 128 GB M.2 2242 SATA | [Upgradeable] | Max. 1 TB |
|
Storage Temperature
|
-20°C ~ 60°C |
Connectivity
|

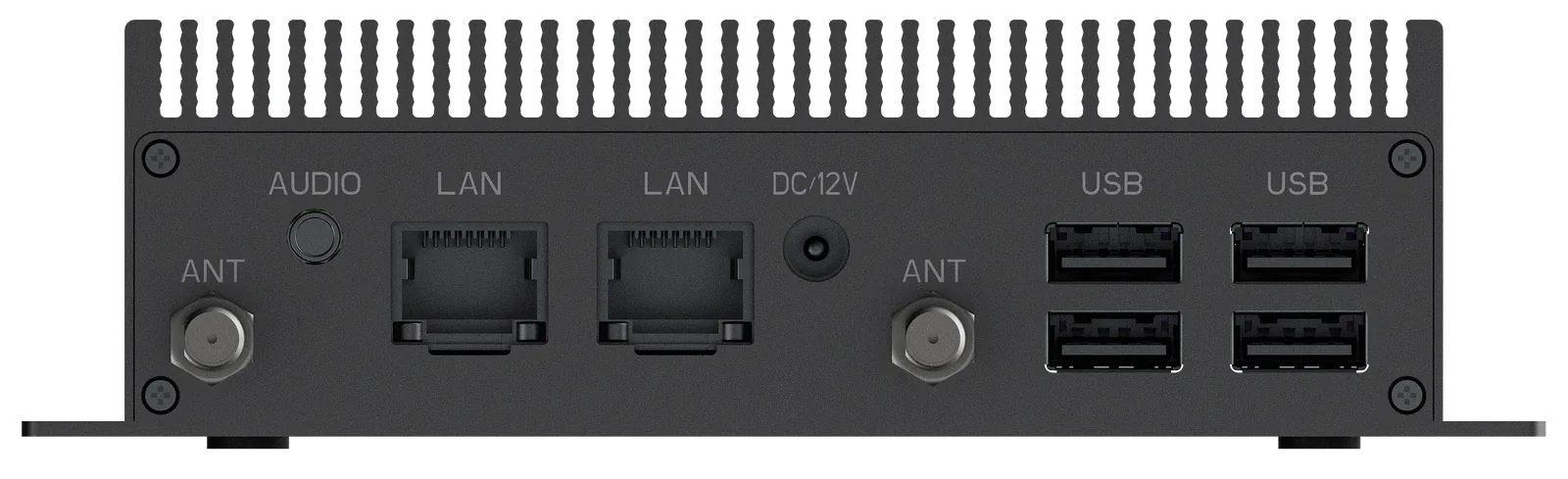

LAN/Ethernet Port Count
|
x 2 |
|---|---|
|

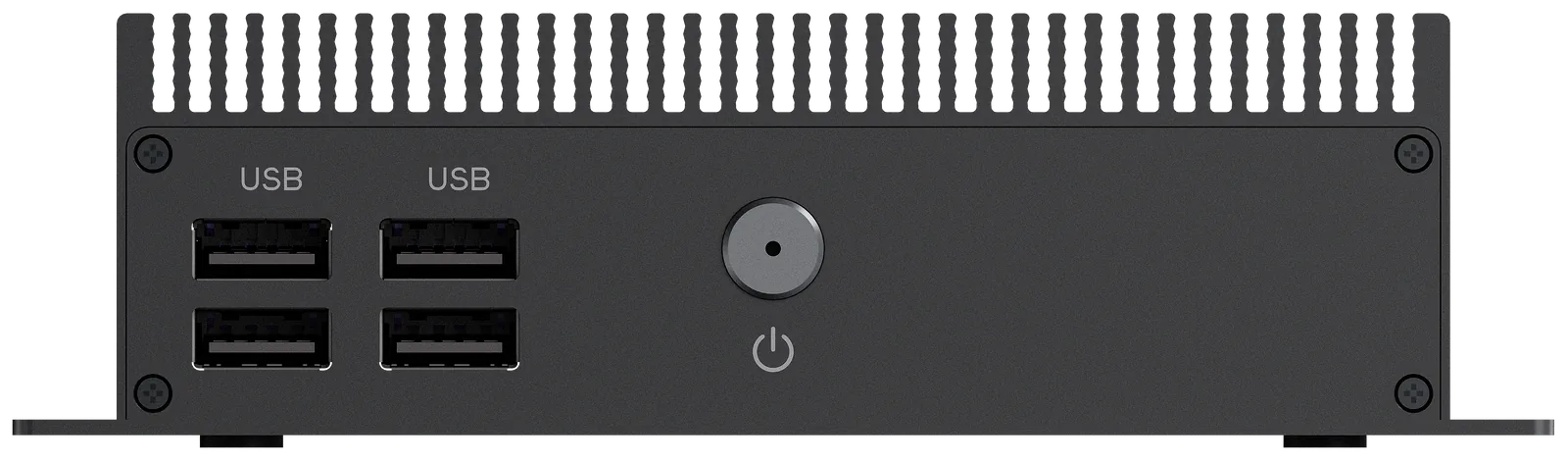

USB 3.0
|
x 8 (Type-A, 5 Gbps) |
|
Video Output
|

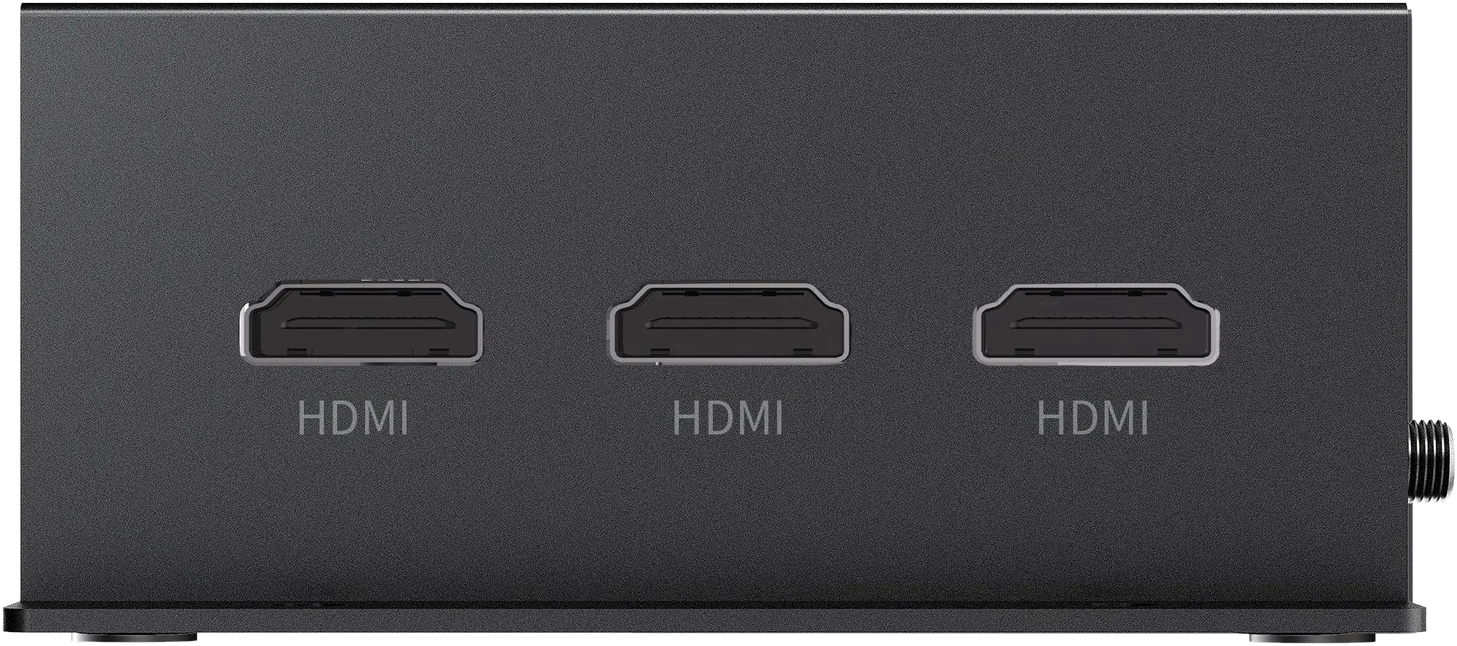

HDMI 2.0 x 3 (Max. 4K 60Hz) | 4096 x 2160@60Hz |
|
Audio Output
|
3.5 mm kombo jak x 1 (Line-out + Mic-in) |
|
Wireless Connectivity
|
Wi-Fi 5 (M.2 E-Key) |
|
Bluetooth
|
Bluetooth 4.2 |
|
Wake On LAN / PXE
|
UEFI diskless (PXE) boot support |
Physical
|
Cooling
|
Fanless |
|---|---|
|
Power Button
|
x 1 |
|
Power Input
|
DC Jack 5.5 / 2.1 mm x 1 |
|
Supply Voltage
|
DC 12V / 2.5A | A 30 W adapter is included with the product. |
|
Mounting Type
|
VESA | Mounting kit is not included. |
|

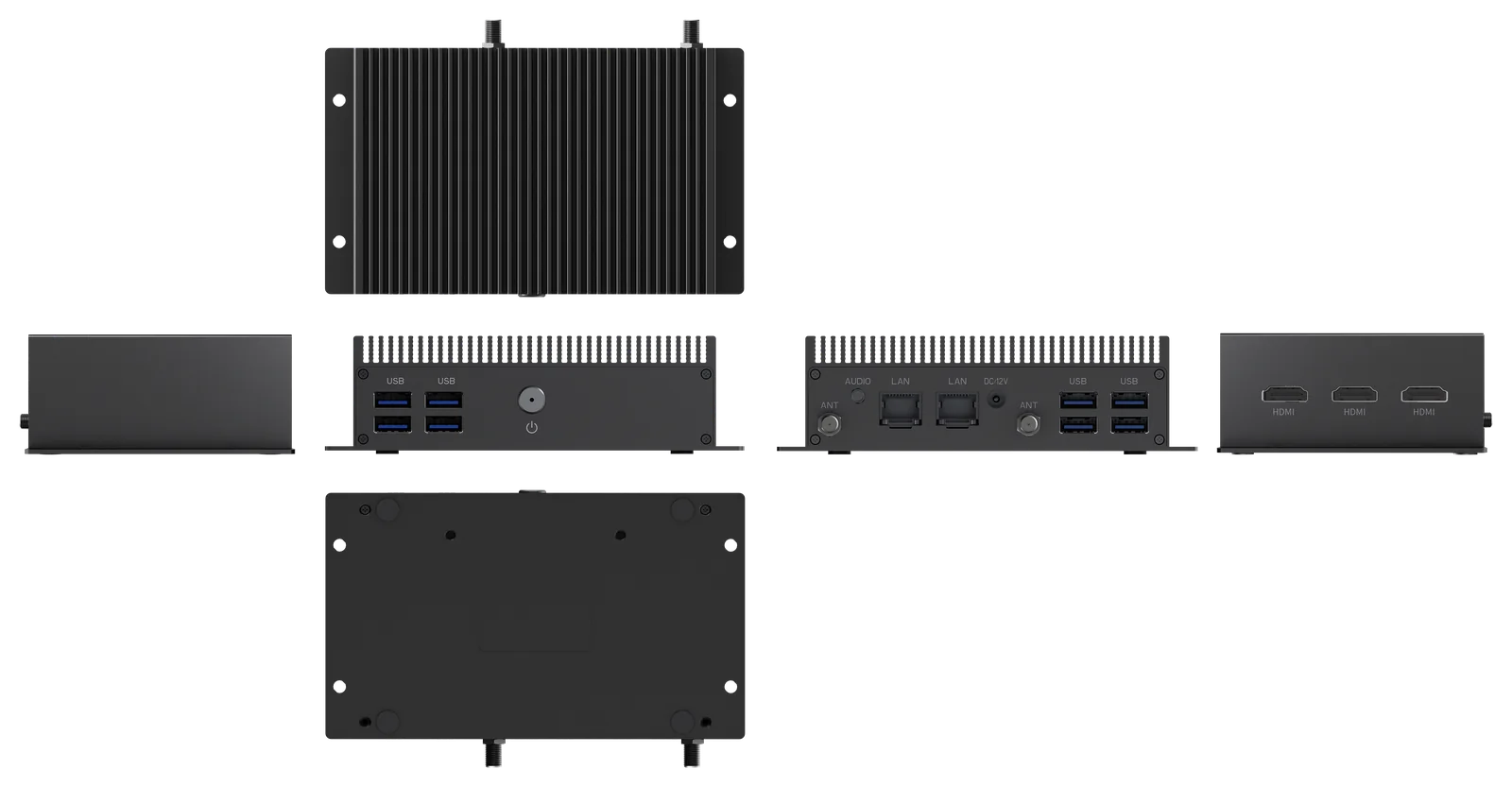

External Dimensions (mm)
|
160 x 87 x 43.5 |
|
Body Material
|
Metal |
|
Weight (kg)
|
3 |
|
Operating Temperature
|
0°C ~ 40°C |
System
|
Processor TDP
|
6 W |
|---|---|
|
Dahili GPU
|
Intel® UHD Graphics | 750 MHz |
|
TPM
|
TPM 2.0 (Integrated in Processor) |
|
RTC
|
Real-time clock and scheduled power-on |
|
Light Indicator
|
Beyaz buton LED |
|
Additional Feature
|
Automatic power-on when mains is restored (BIOS) |
|
Temperature Note
|
Maximum internal temperature rise: ambient temperature + 23°C |
|
Operating Humidity
|
90% @ 40°C (non-condensing) |
Supported Operating Systems
Windows®11 Pro | Linux | Operating system license is sold separately.
Product at a Glance
IPC4Mini-B5N-N10-100 — Mini PC.
The standard configuration ships with Intel N100 4 Core 0.70 / 3.40 GHz processor, 8 GB RAM and 128 GB M.2 2242 SATA storage. Video output: HDMI 2.0 x 3 (Max. 4K 60Hz); multi-display support: Simultaneous triple display via HDMI x 3. For connectivity it provides 2 Ethernet ports, Wi-Fi 5 (M.2 E-Key) and Bluetooth 4.2. Ports: 8 x USB 3.0; audio output: 3.5 mm kombo jak x 1 (Line-out + Mic-in). The device has external dimensions of 160 x 87 x 43.5 mm, a weight of 3 kg and a metal body. Power input: DC 12V / 2.5A; mounting: VESA. It operates in the 0°C ~ 40°C range. Supported operating systems: Windows 11 Pro / Linux.
